OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>

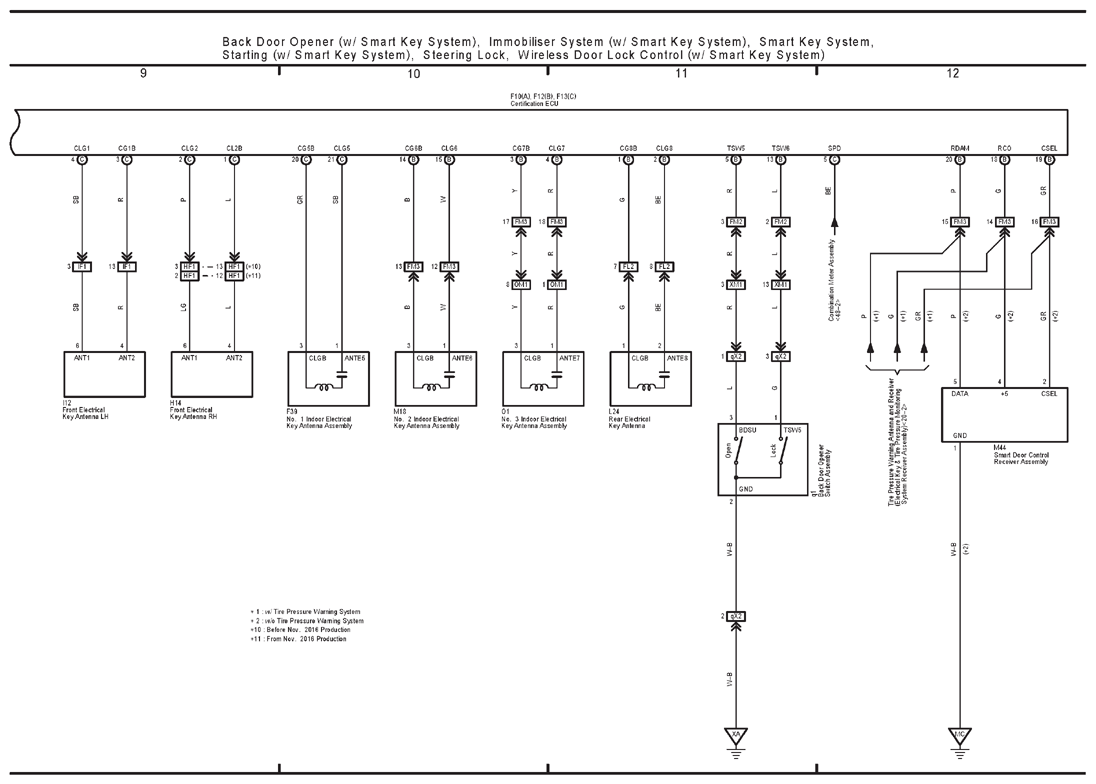

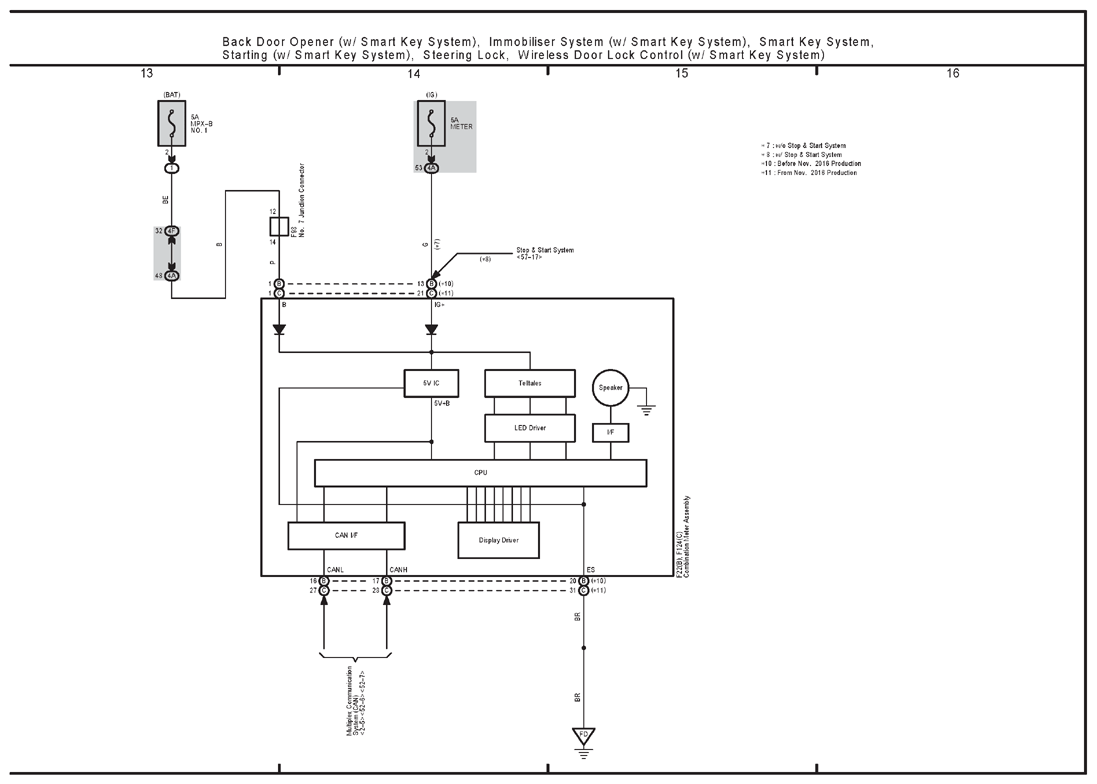

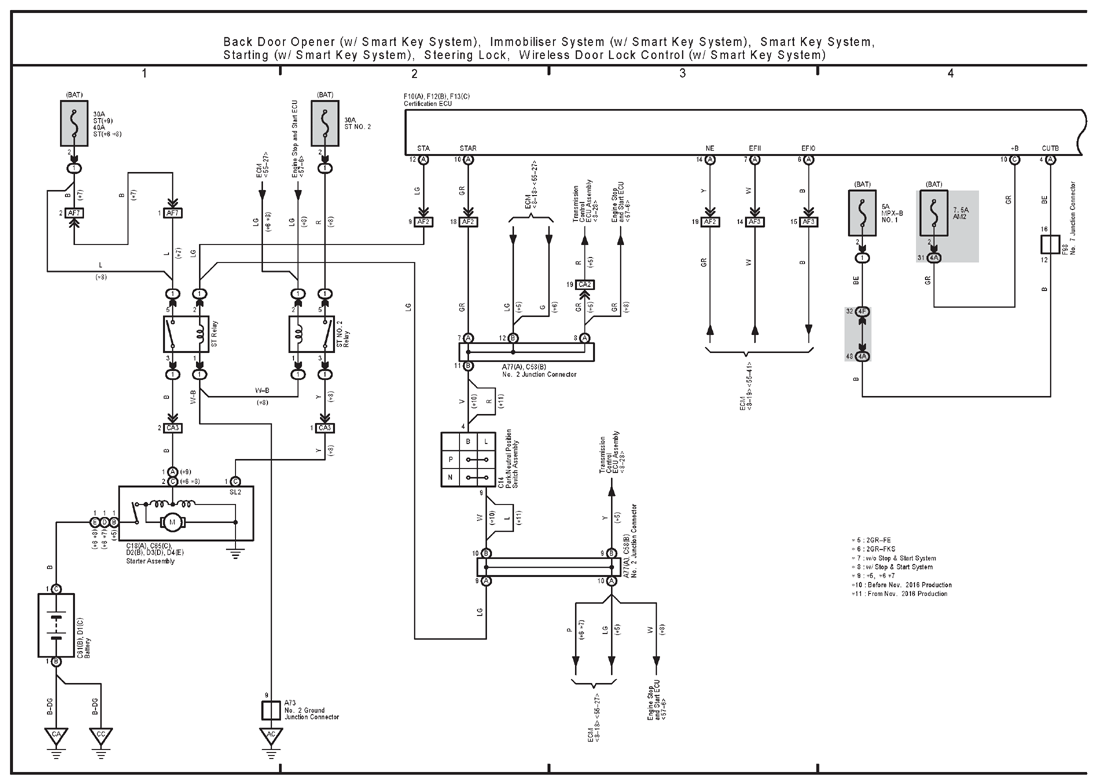

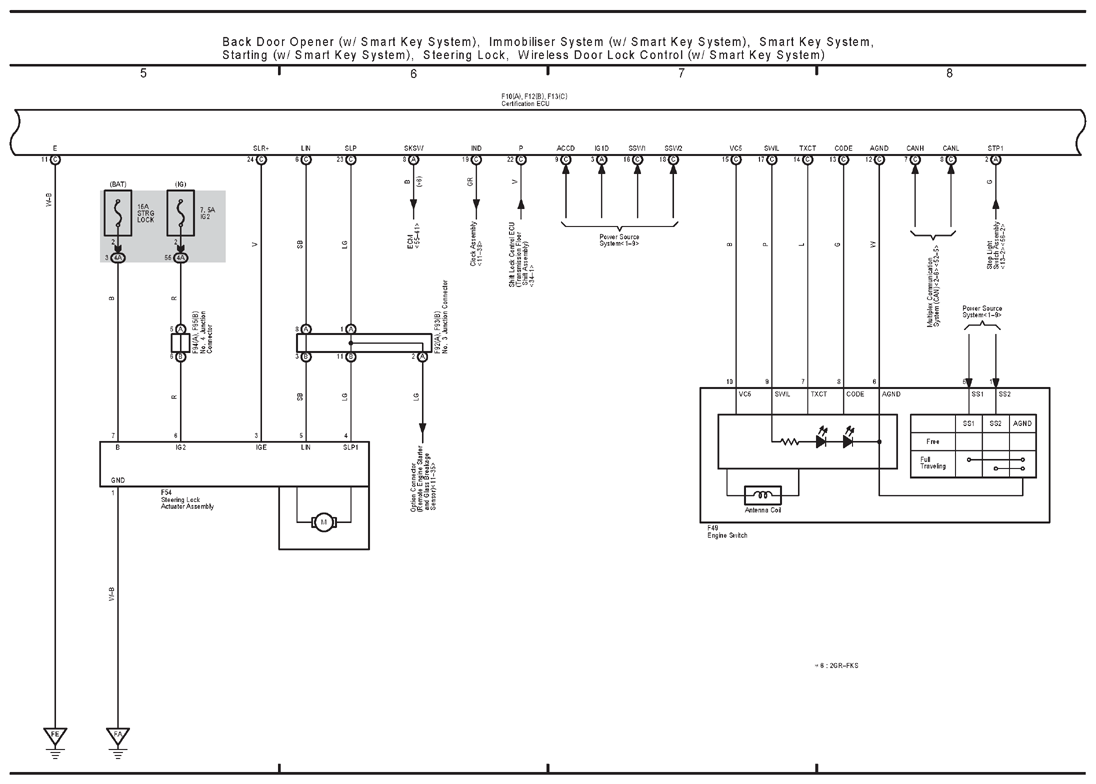

Back Door Opener (W/Smart Key System), Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Back Door Opener (W/Smart Key System), Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System)
