System Diagrams

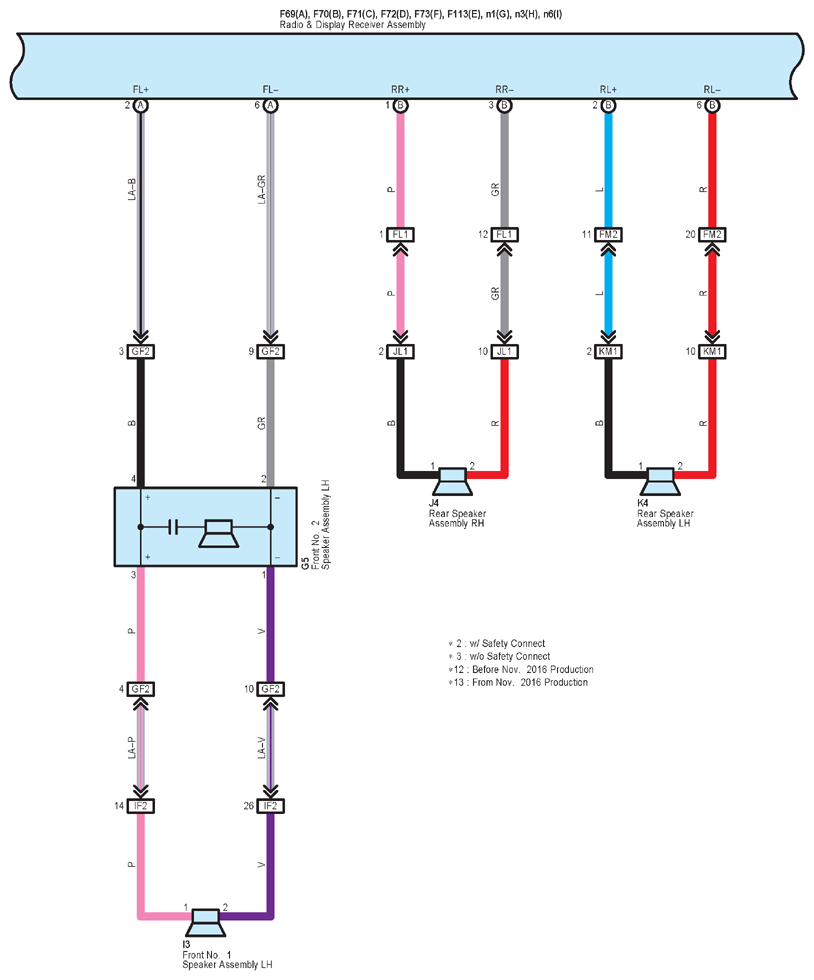

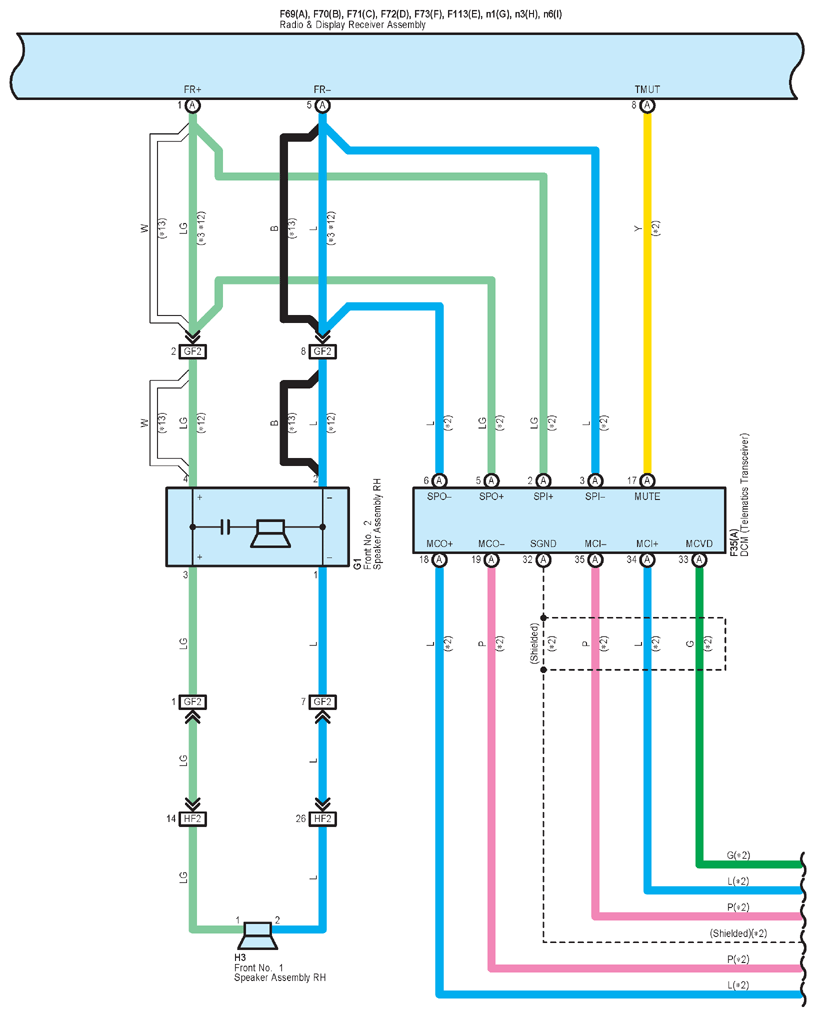

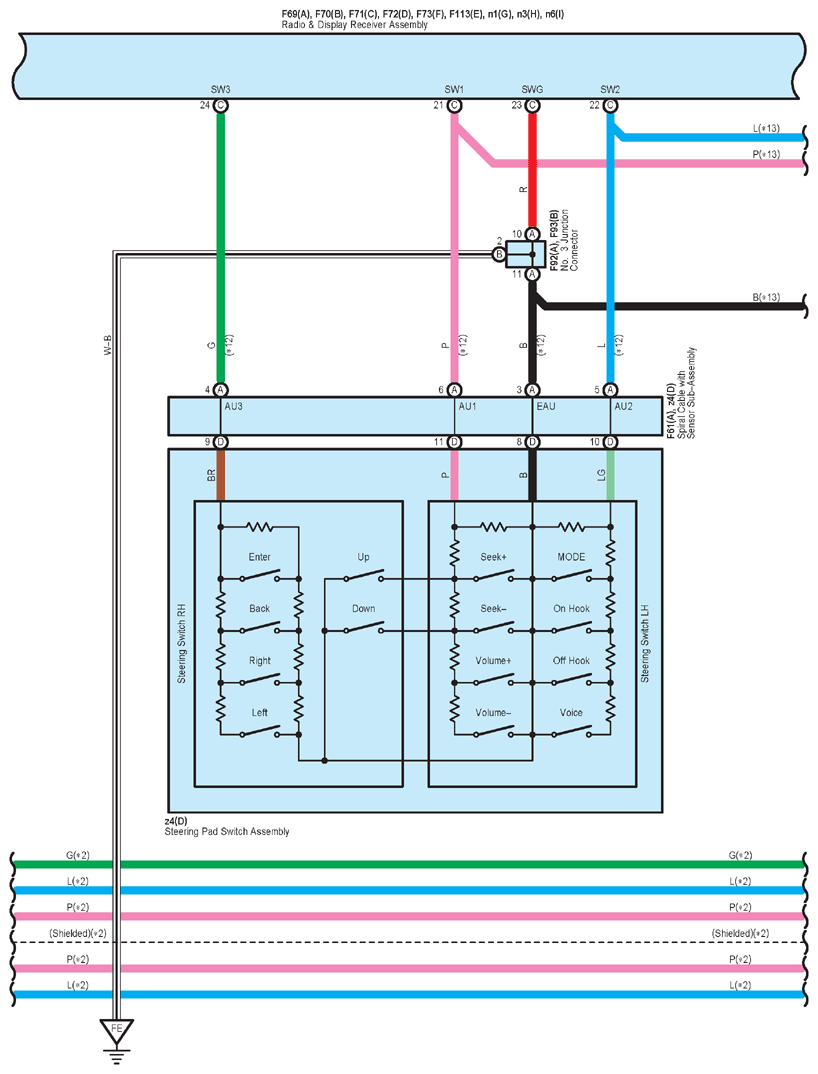

Fig 1: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

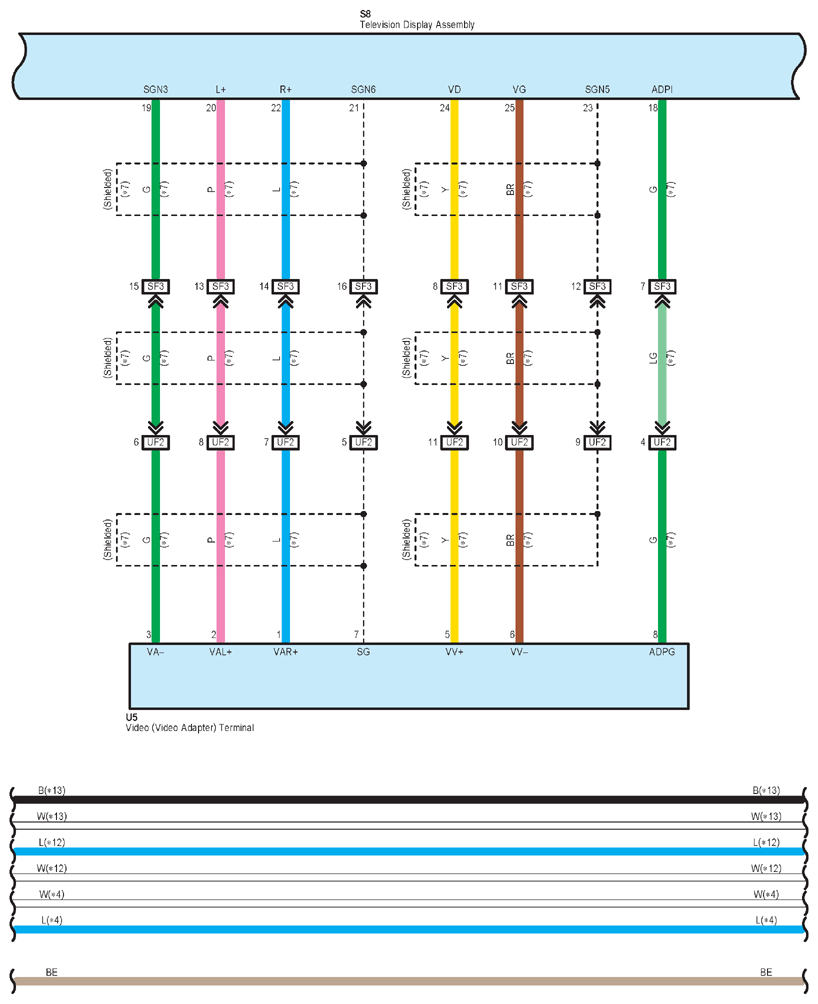

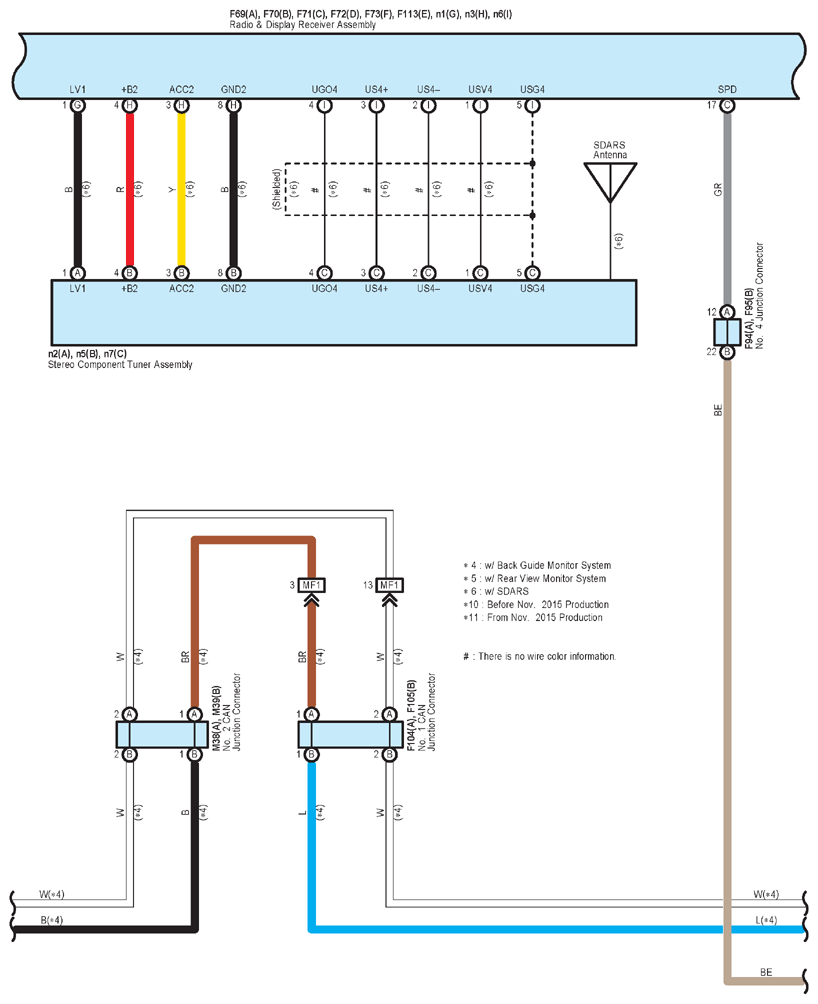

Fig 2: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

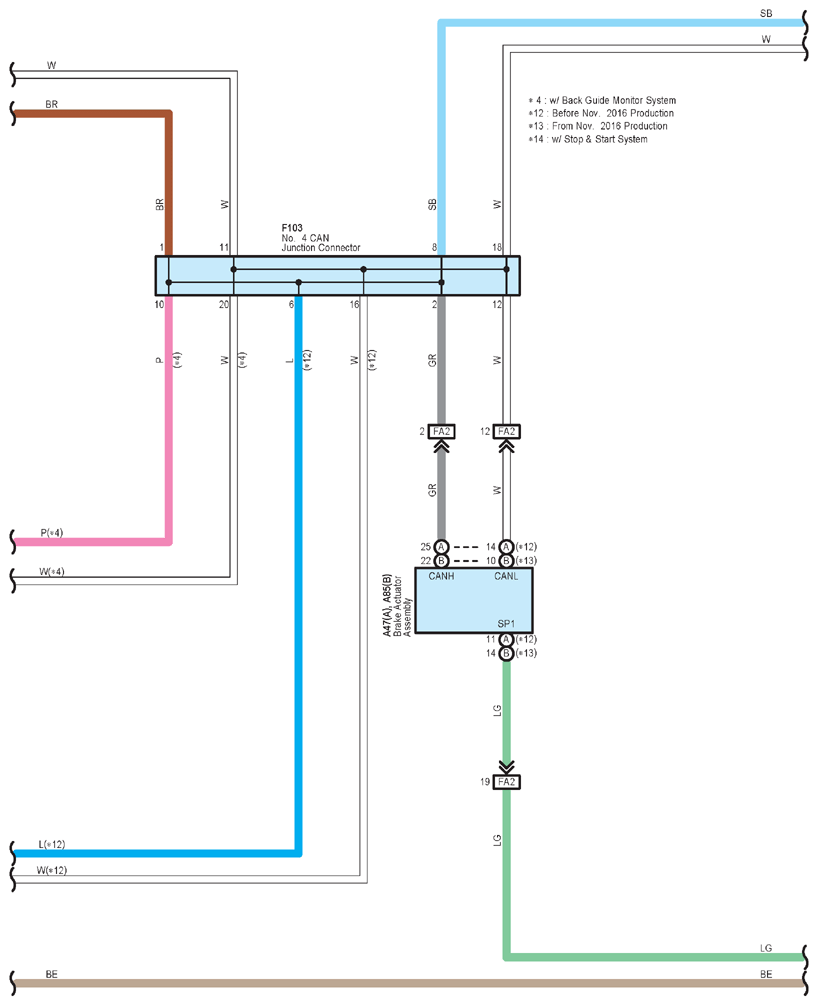

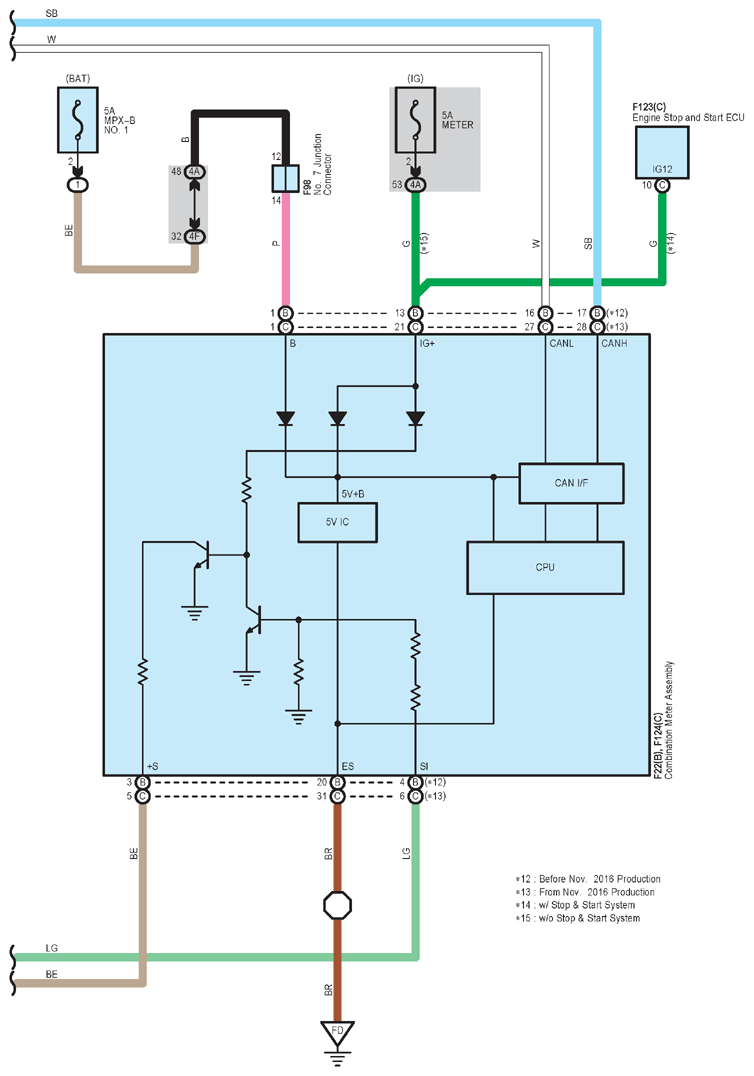

Fig 3: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

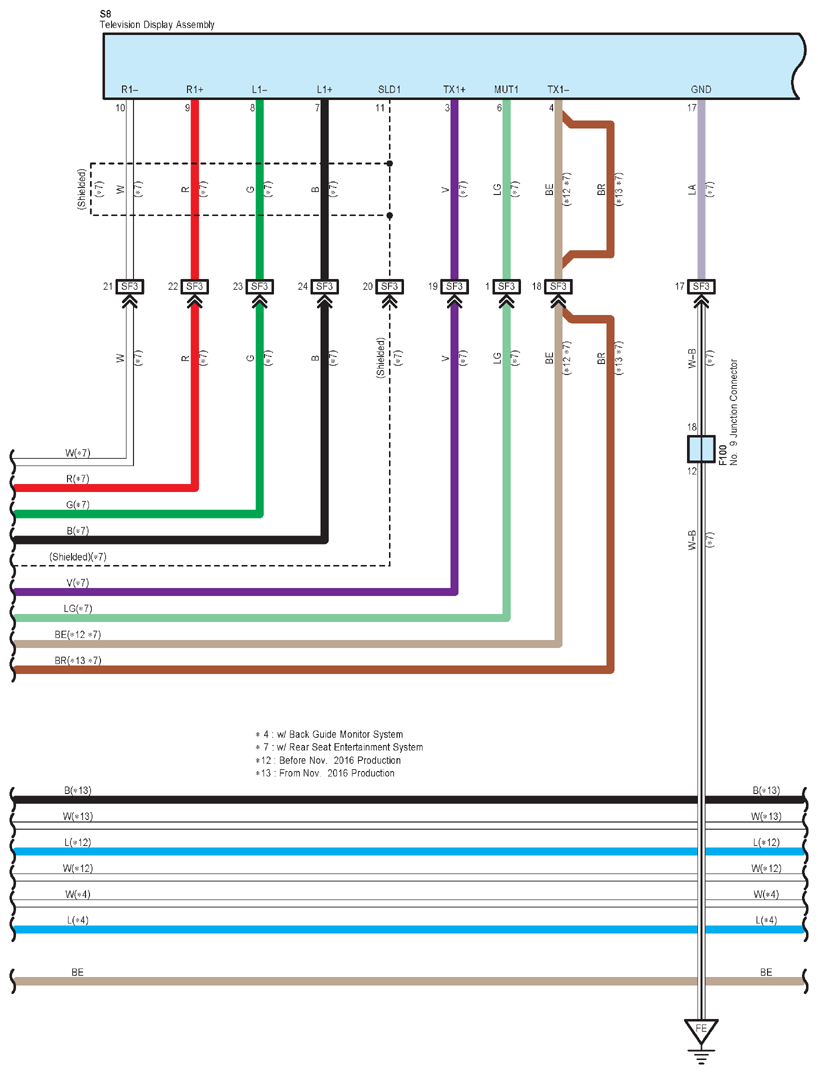

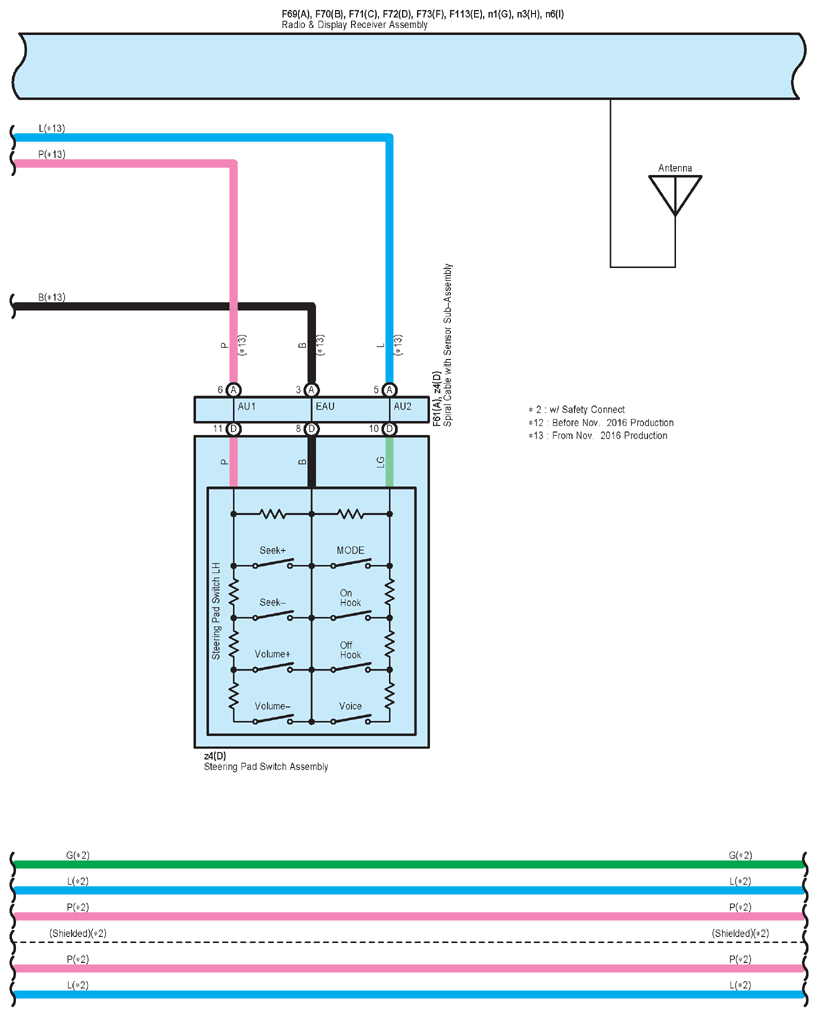

Fig 4: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

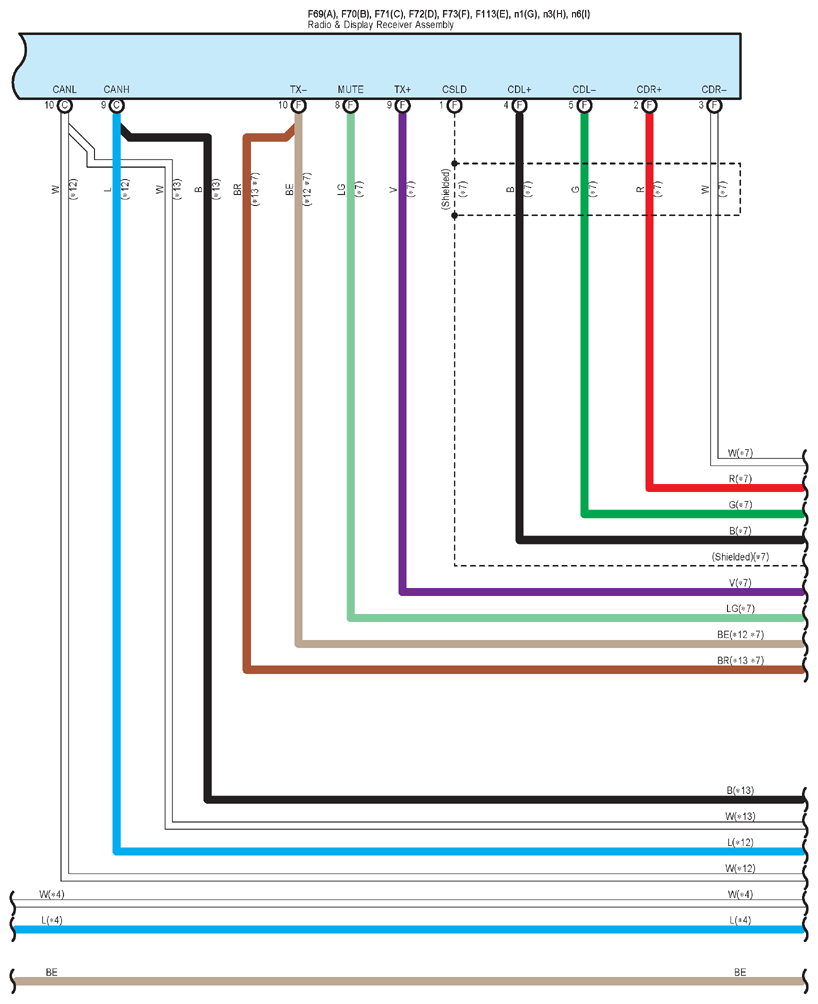

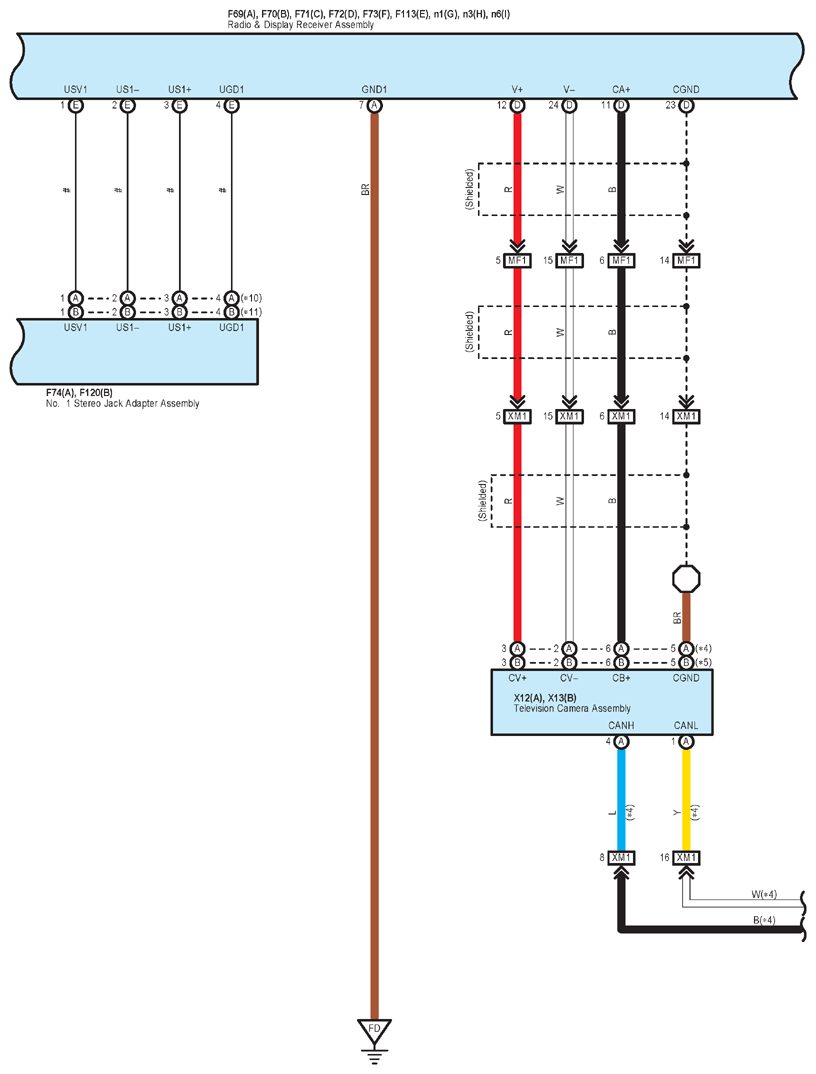

Fig 5: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

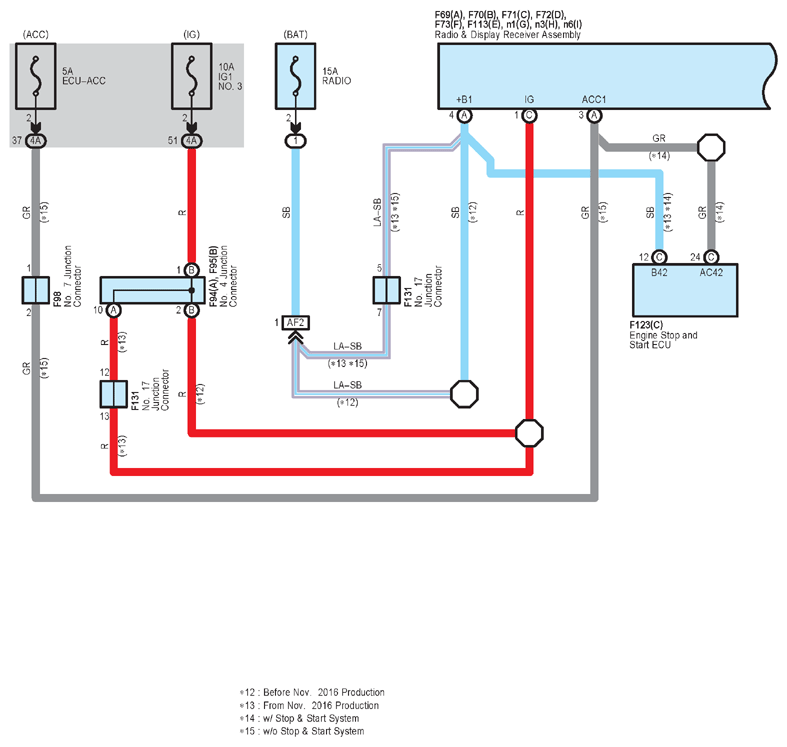

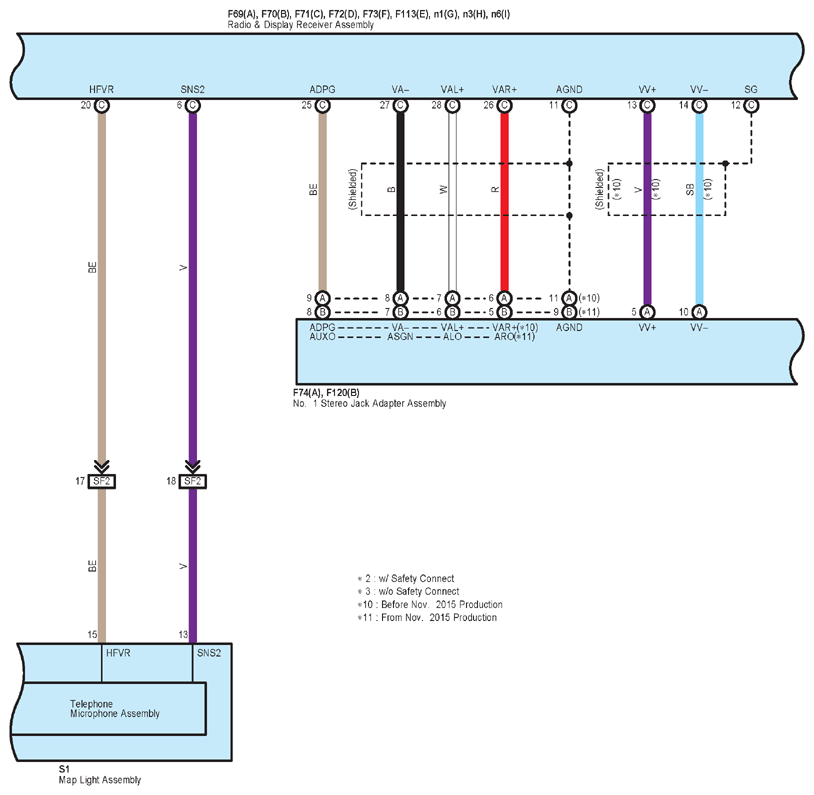

Fig 6: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

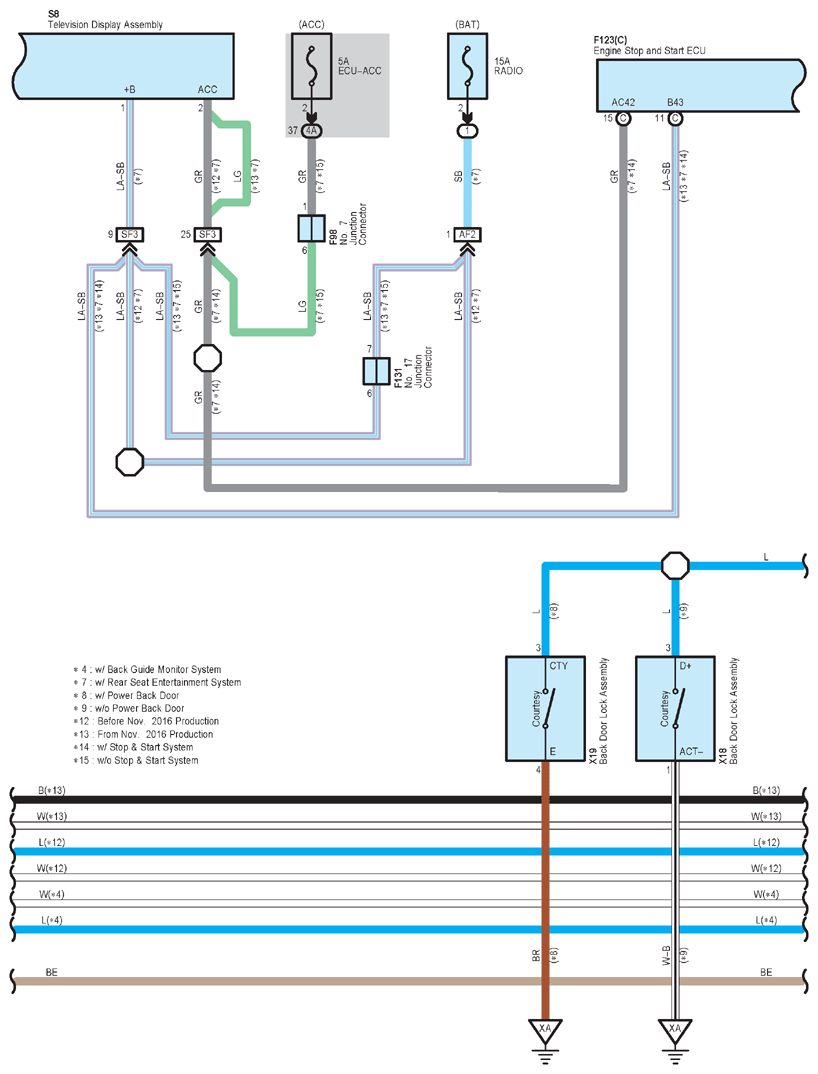

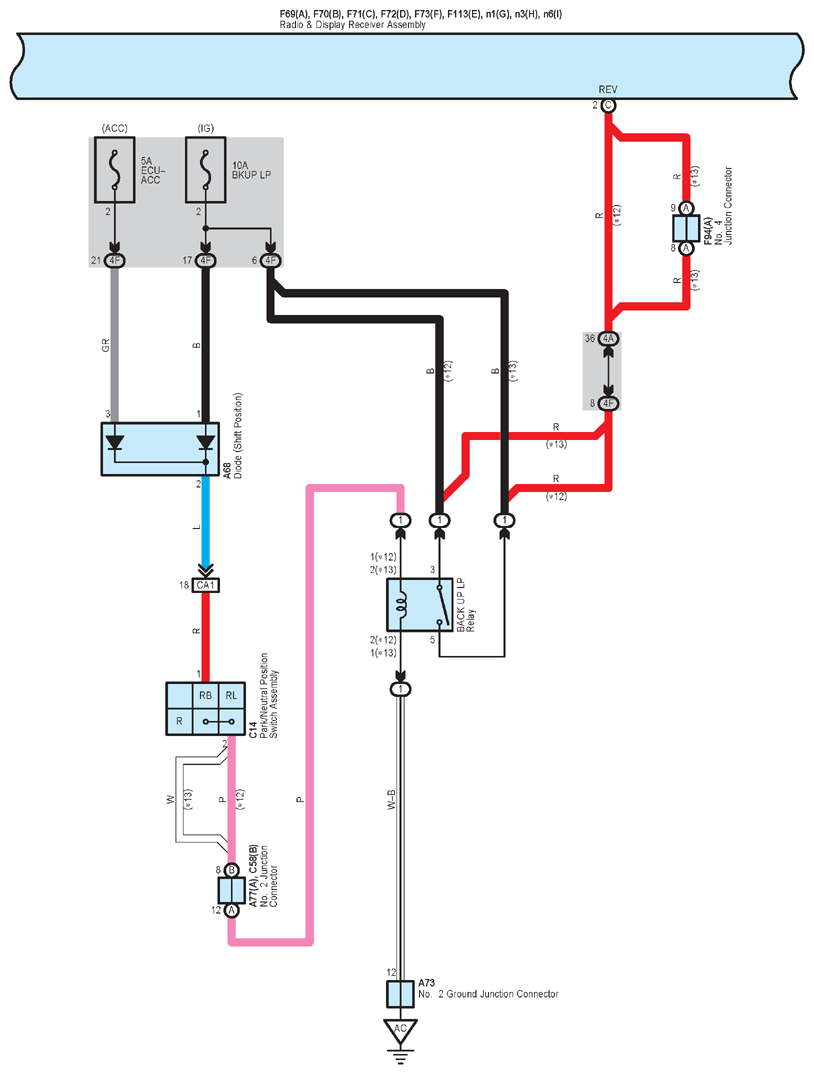

Fig 7: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

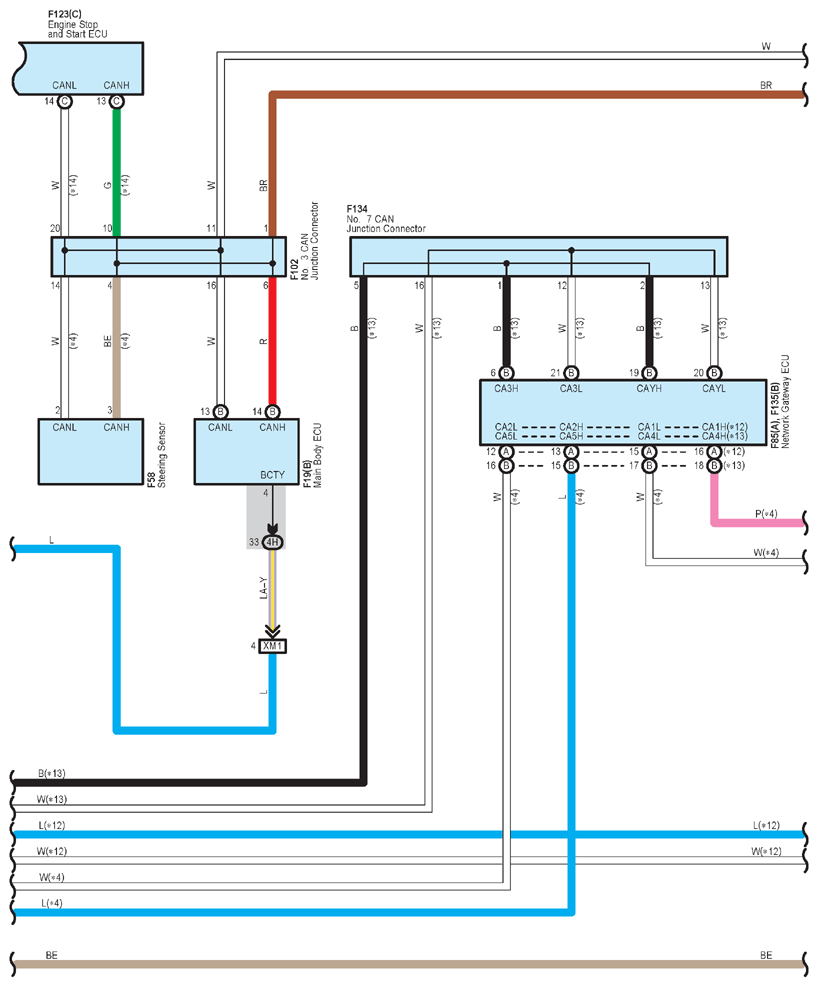

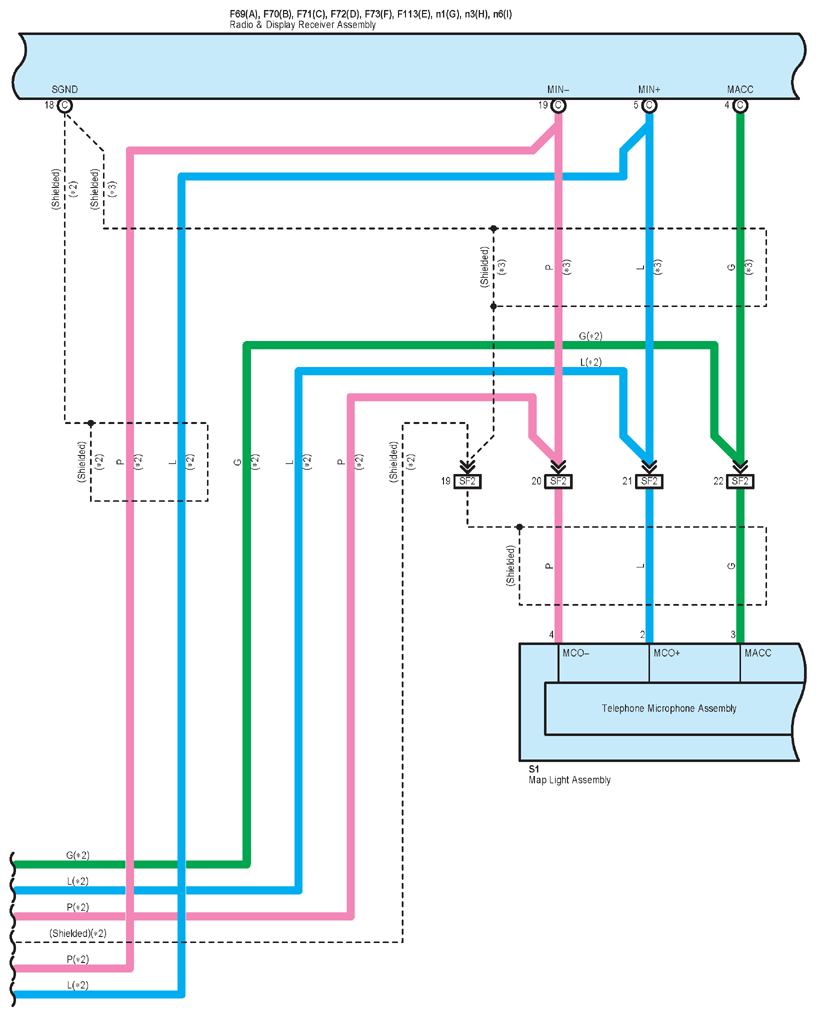

Fig 8: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (12 Of 17)

Fig 13: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (13 Of 17)

Fig 14: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (14 Of 17)

Fig 15: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (15 Of 17)

Fig 16: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (16 Of 17)

Fig 17: Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System) (17 Of 17)
