Audio System (6 Speaker W/O Navigation System), Back Guide Monitor System (6 Speaker), Rear View Monitor System (W/O Navigation System): Connectors

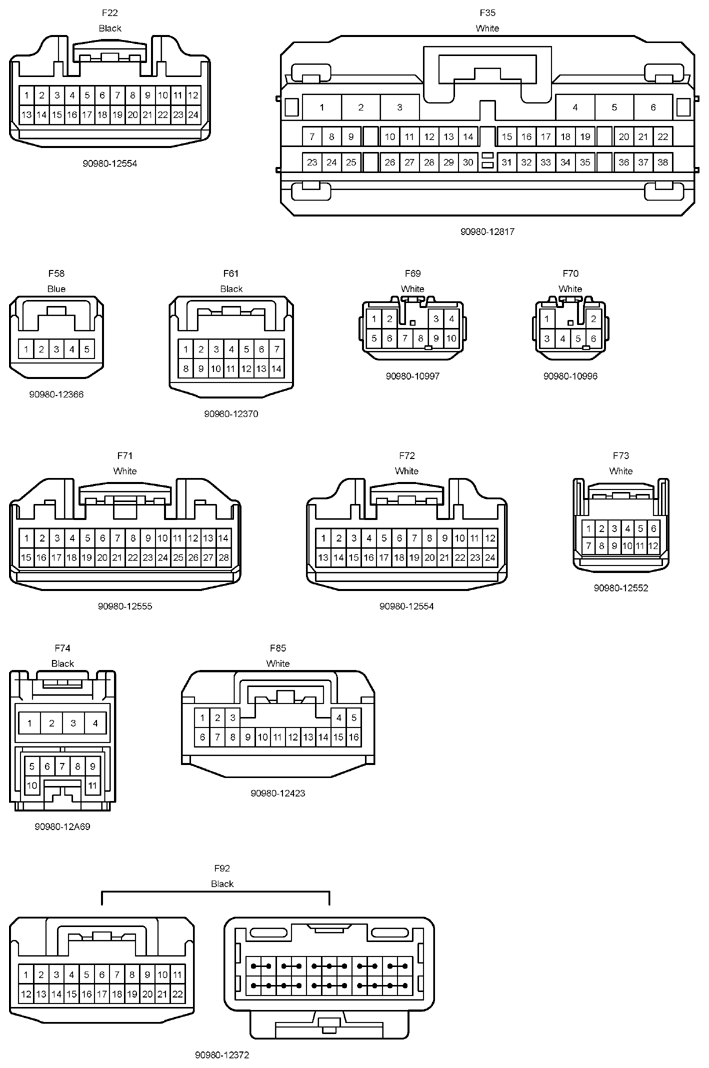

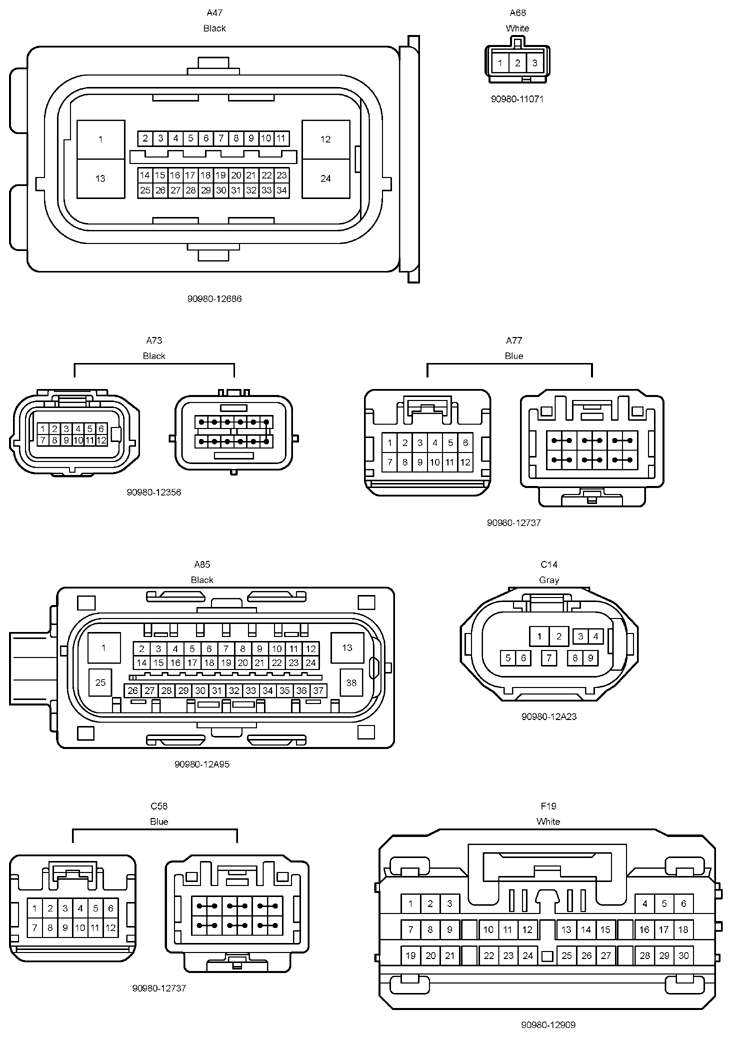

Fig 1: Connectors (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Connectors (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Connectors (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Connectors (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Connectors (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Connectors (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Connectors (7 Of 10)

Fig 8: Connectors (8 Of 10)

Fig 9: Connectors (9 Of 10)

Fig 10: Connectors (10 Of 10)
