Back Door Opener (W/Smart Key System), Immobilizer System, Option Connector (Remote Engine Starter System), Smart Key System, Starting (W/Smart Key System), Steering Lock, Wireless Door Lock Control (W/Smart Key System): Connectors

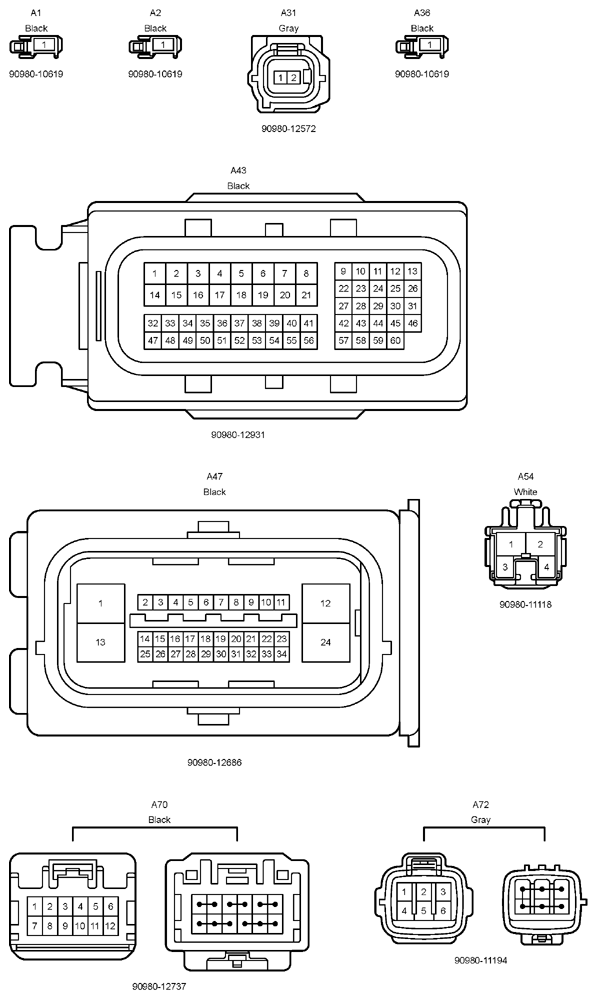

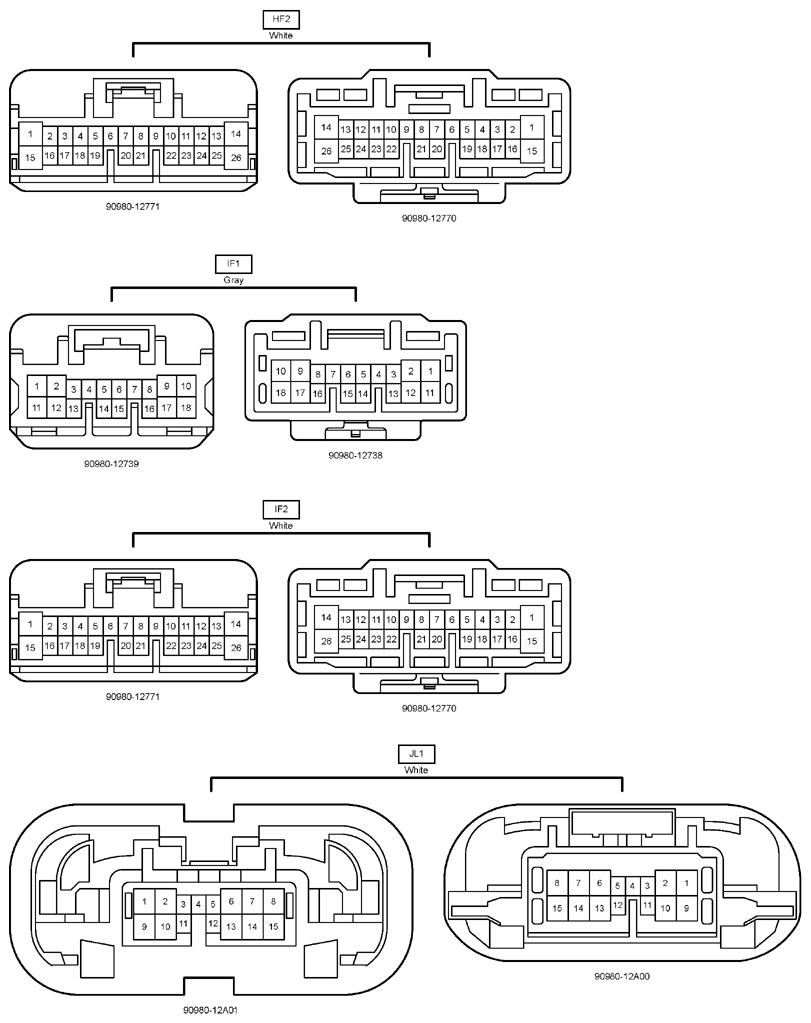

Fig 1: Connectors (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

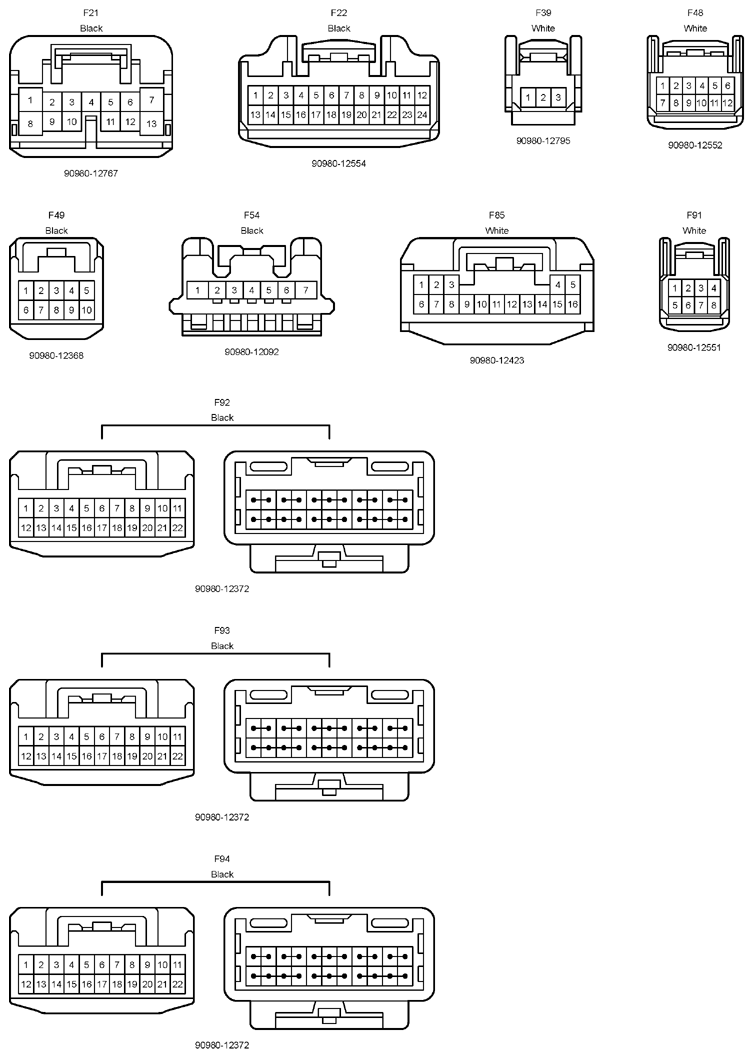

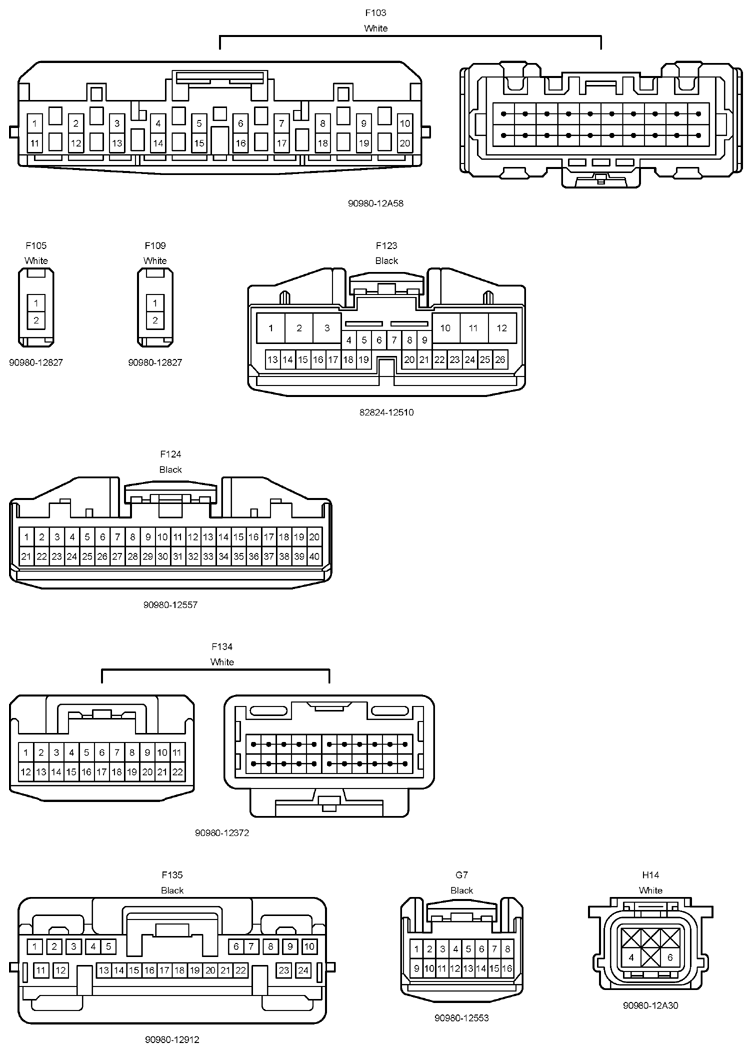

Fig 2: Connectors (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

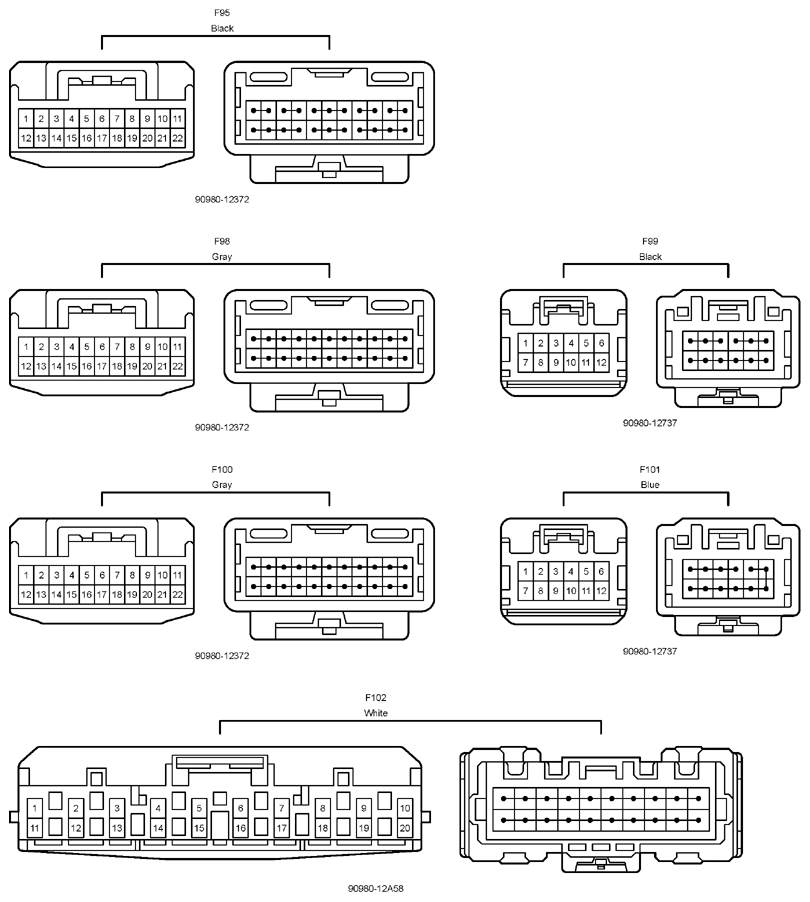

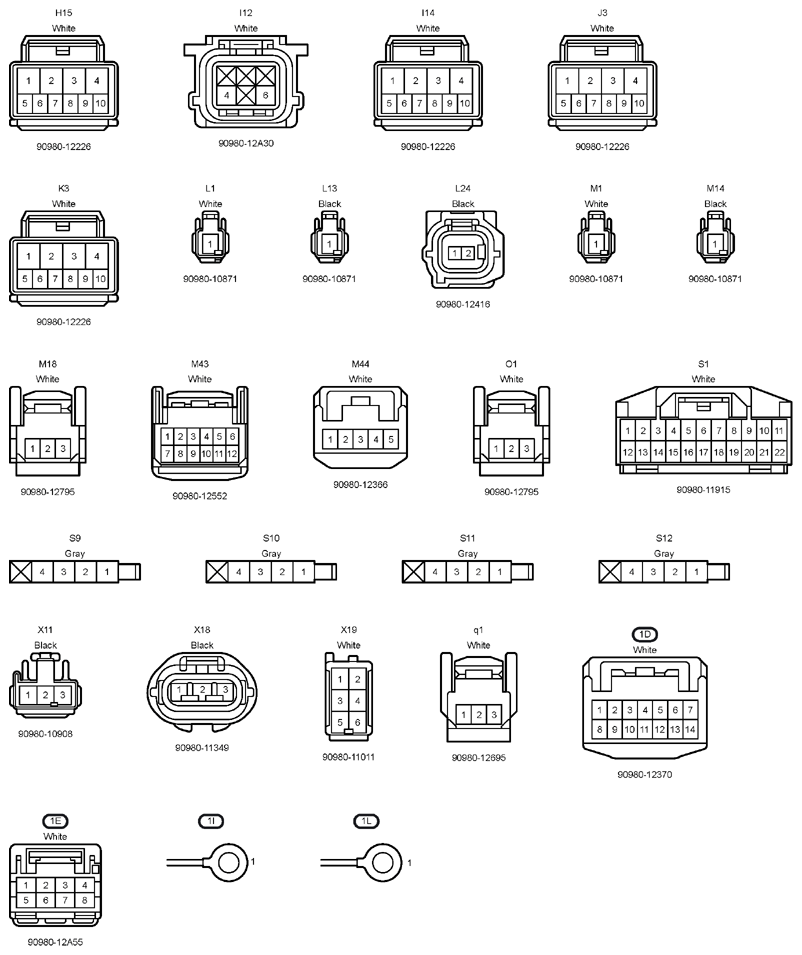

Fig 3: Connectors (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

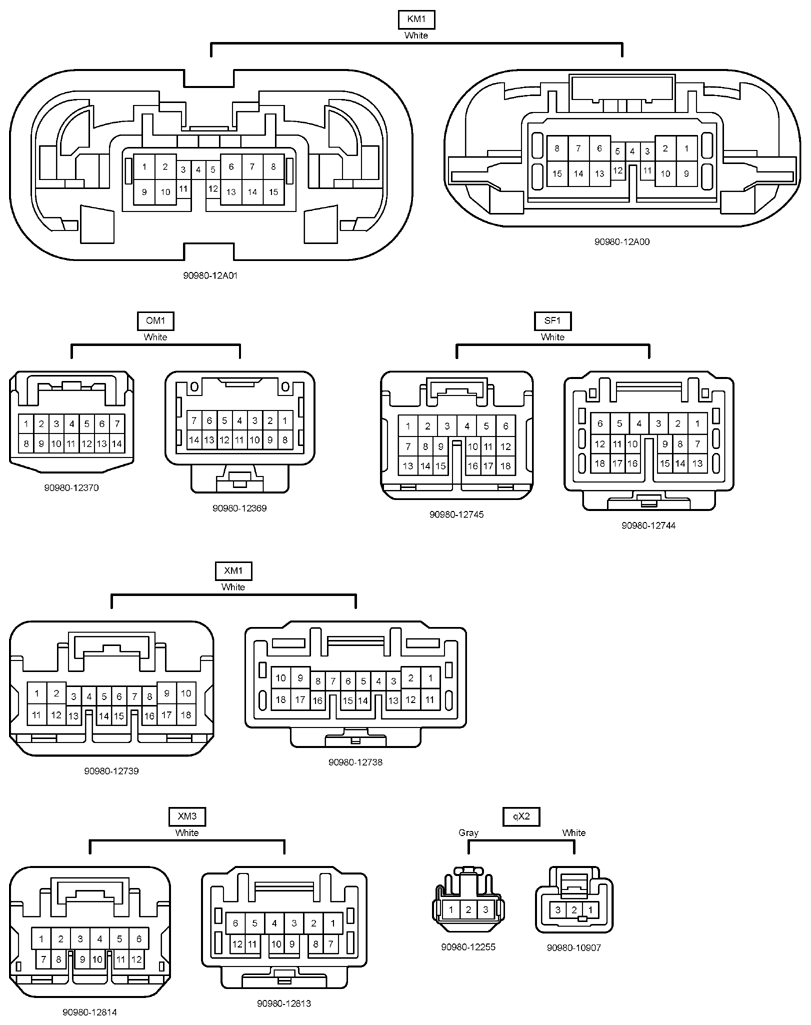

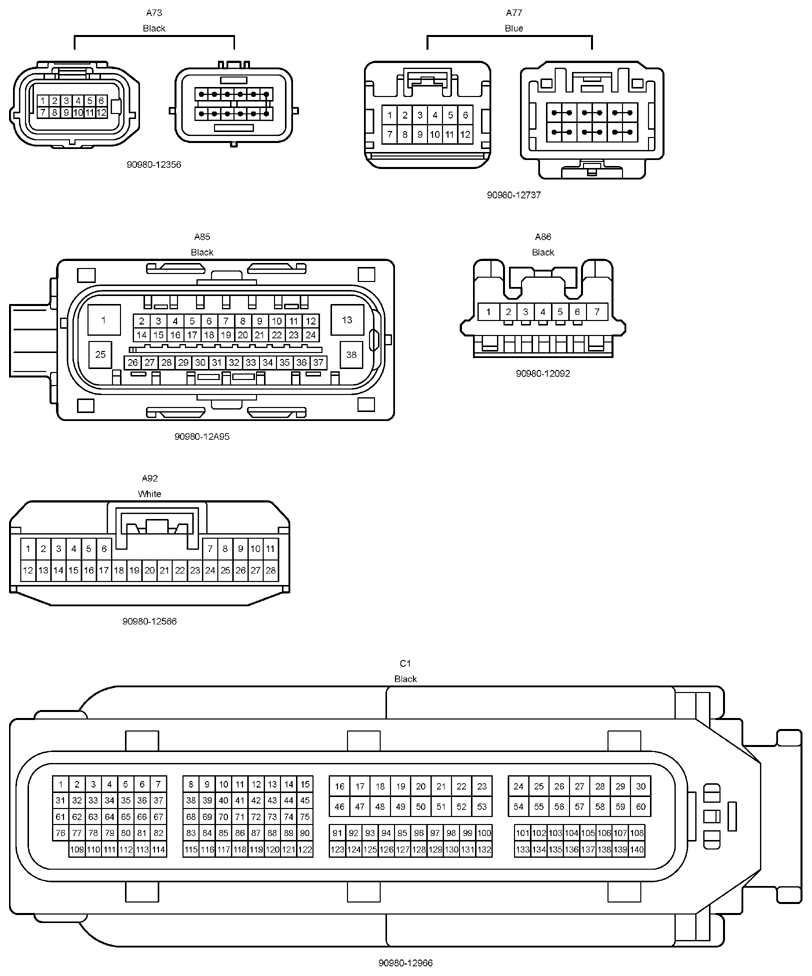

Fig 4: Connectors (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

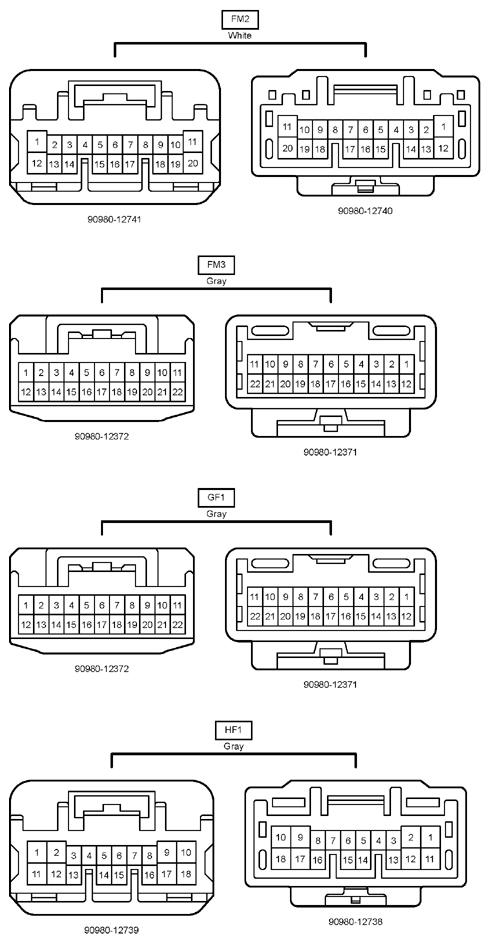

Fig 5: Connectors (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

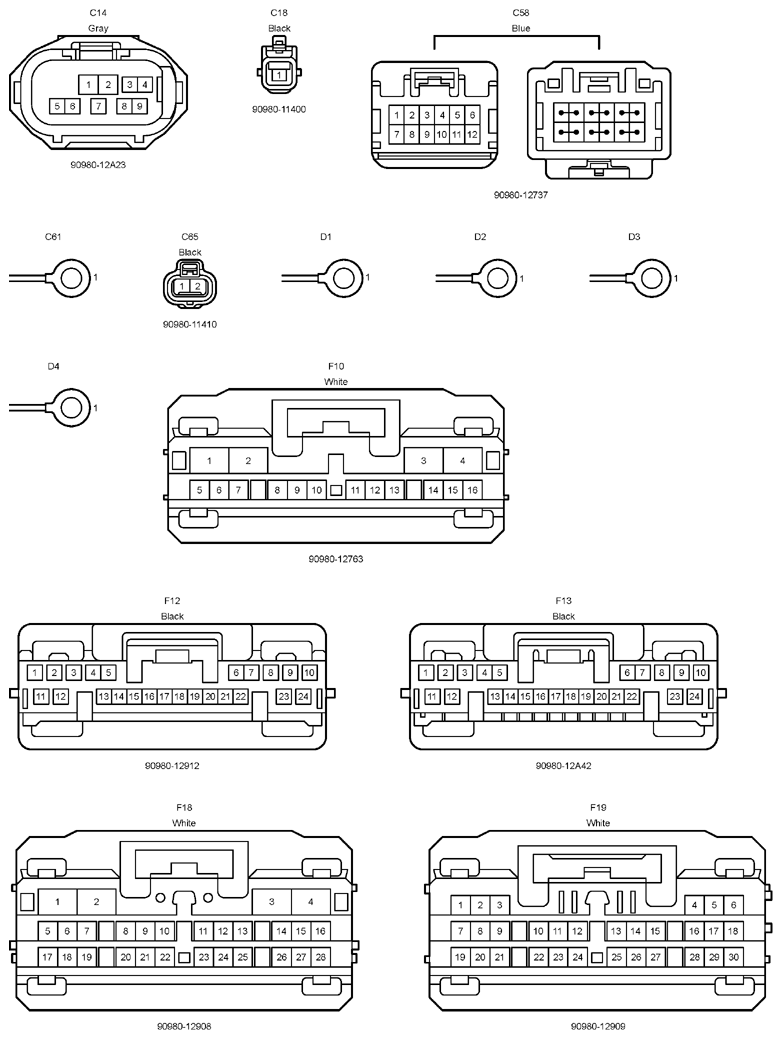

Fig 6: Connectors (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

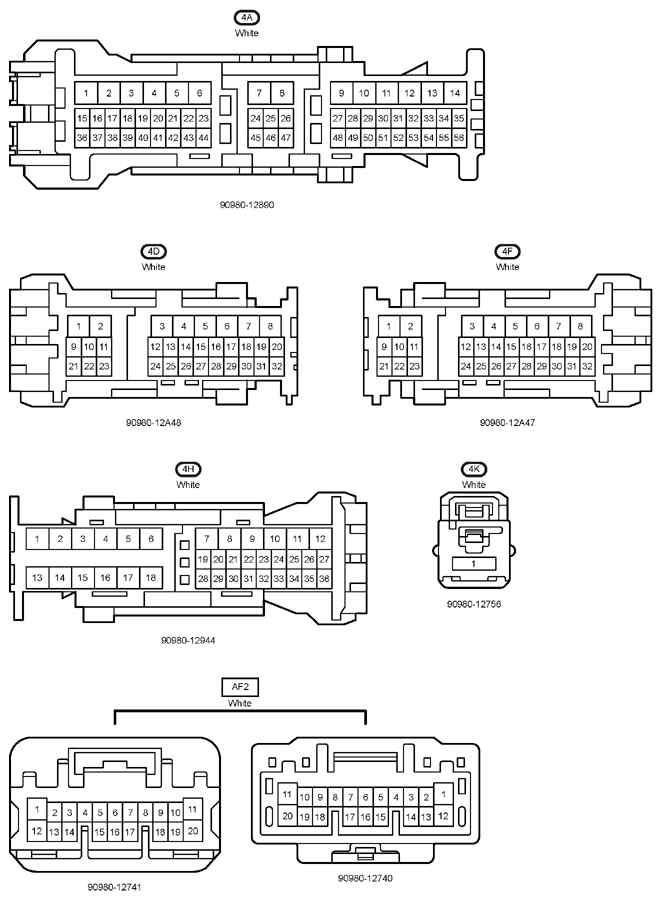

Fig 7: Connectors (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

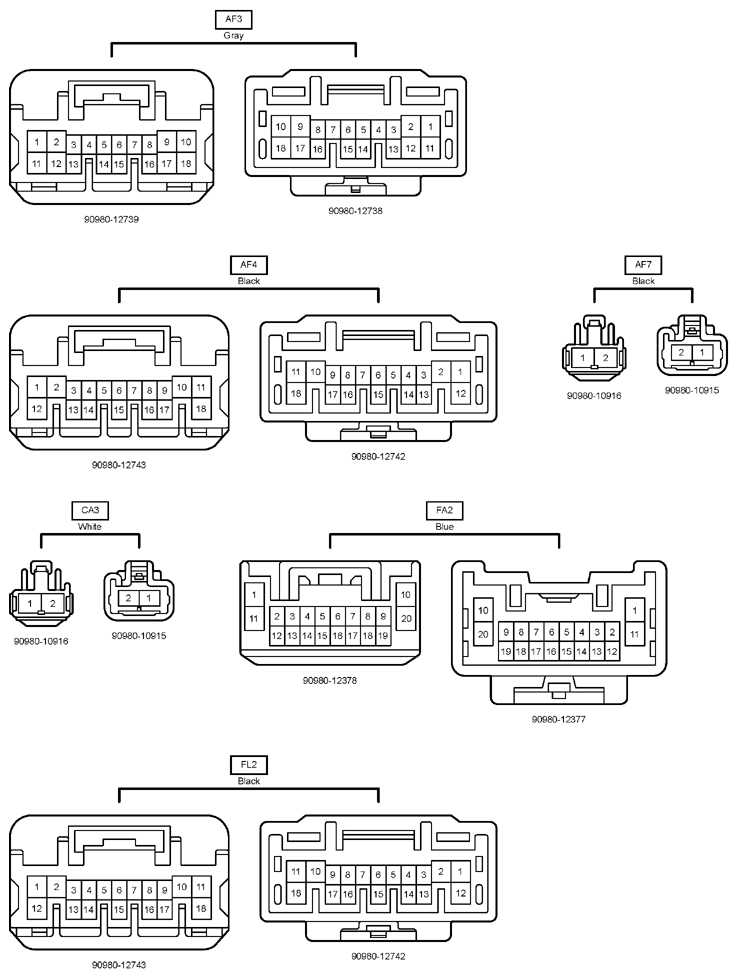

Fig 8: Connectors (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Connectors (9 Of 12)

Fig 10: Connectors (10 Of 12)

Fig 11: Connectors (11 Of 12)

Fig 12: Connectors (12 Of 12)
