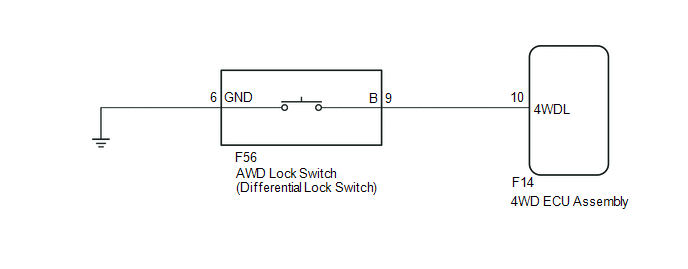

AWD Control Switch Circuit [12/2013 - ]: Wiring Diagram

GTY454076

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
