System Diagram [11/2016 - ]

WARNING: This page is about a different variant/trim than selected.

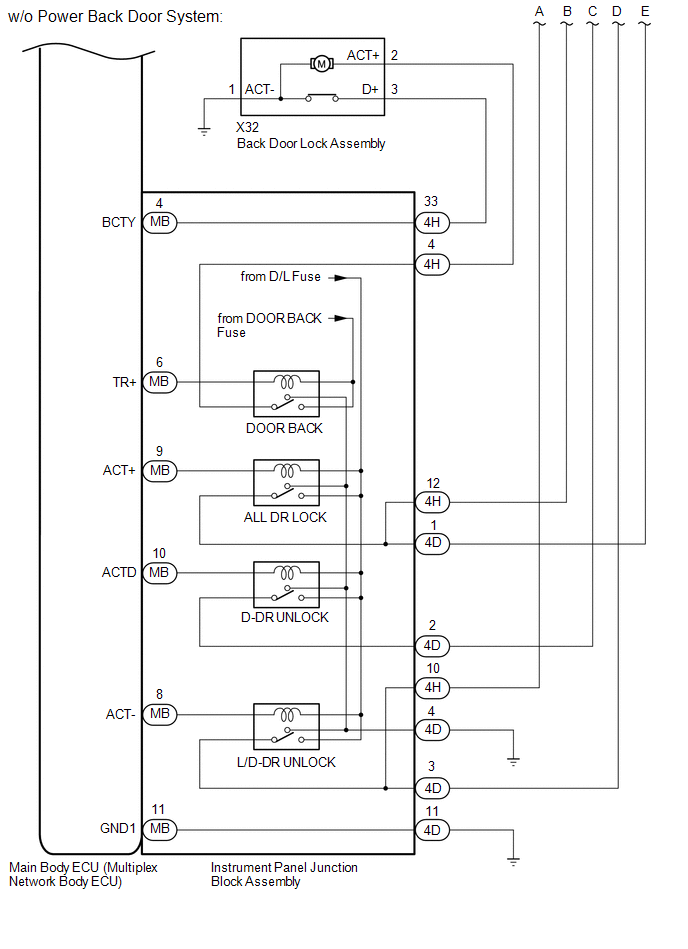

Fig 1: Smart Key System (For Entry Function) Diagram, 11/2016- (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

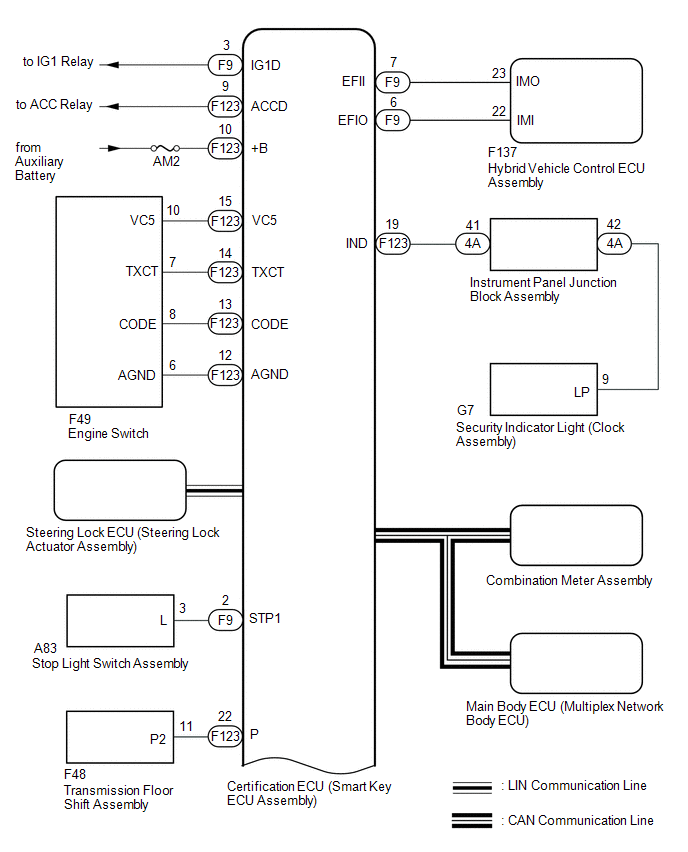

Fig 2: Smart Key System (For Entry Function) Diagram, 11/2016- (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This is a detailed diagram related to the main body ECU (multiplex network body ECU).

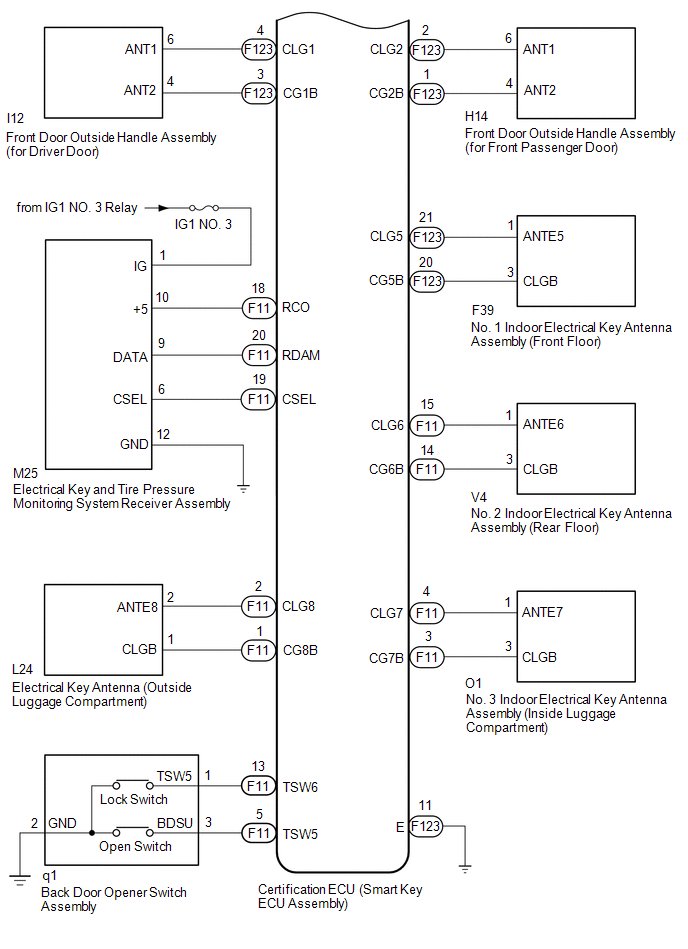

Fig 3: Smart Key System (For Entry Function) Diagram, 11/2016- (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

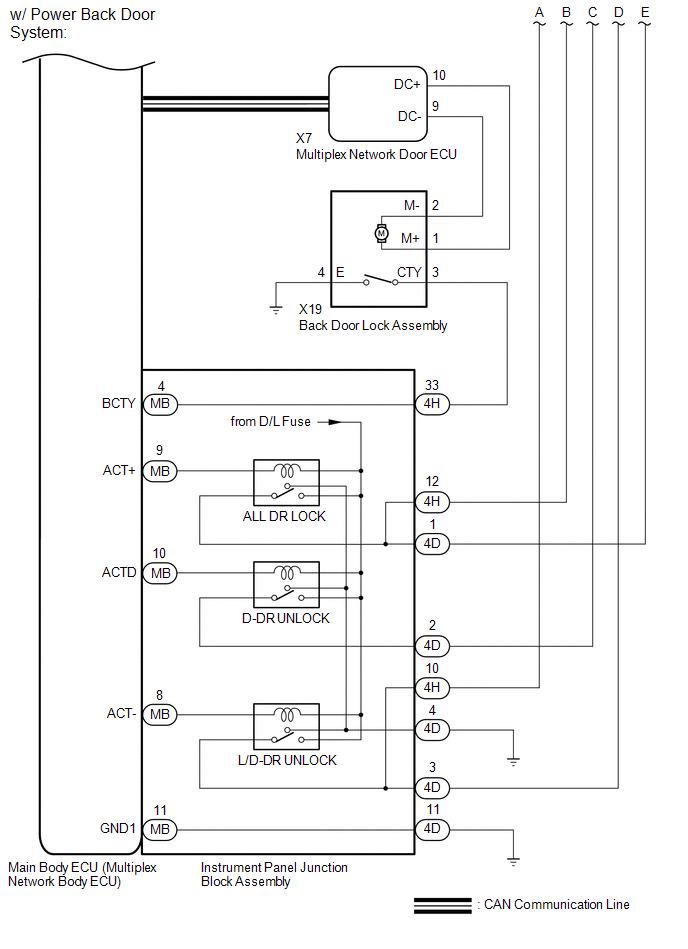

Fig 4: Smart Key System (For Entry Function) Diagram, 11/2016- (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

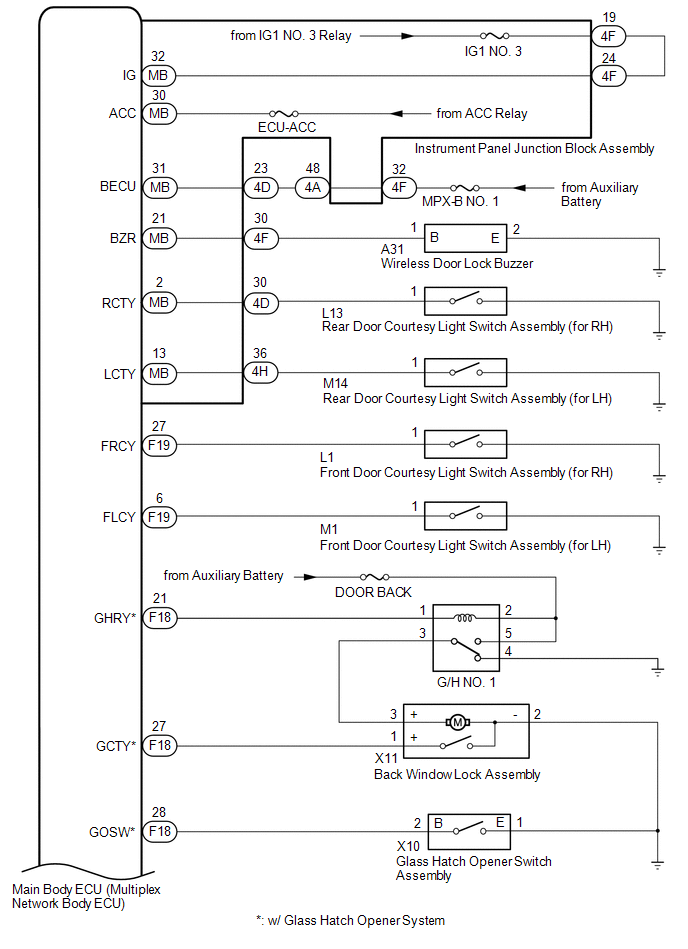

Fig 5: Smart Key System (For Entry Function) Diagram, 11/2016- (5 Of 6)

Fig 6: Smart Key System (For Entry Function) Diagram, 11/2016- (6 Of 6)

Component	Function
Front door outside handle assembly	Receives request signals from the certification ECU (smart key ECU assembly) via the built-in electrical key antenna (front door) and forms the vehicle exterior detection area. Uses the built-in touch sensor (lock sensor/unlock sensor) to detect the operation of the front door outside handle assembly and sends signals to the certification ECU (smart key ECU assembly).
No. 1 indoor electrical key antenna assembly (front floor)	Receives the request code from the certification ECU (smart key ECU assembly) and forms the vehicle interior detection area.
No. 2 indoor electrical key antenna assembly (rear floor)
No. 3 indoor electrical key antenna assembly (inside luggage compartment)
Electrical key antenna (outside luggage compartment)	Receives the request code from the certification ECU (smart key ECU assembly) and forms the back door exterior detection area.
Back door opener switch assembly	Sends switch operation signals to the certification ECU (smart key ECU assembly).
Glass hatch opener switch assembly*
Electrical key and tire pressure monitoring system receiver assembly	Receives the smart key system code/wireless code sent from the electrical key transmitter sub-assembly and sends it to the certification ECU (smart key ECU assembly).
Wireless door lock buzzer	Sounds when warning functions operate in accordance with certification ECU (smart key ECU assembly) control.
Electrical key transmitter sub-assembly	Sends the ID code upon receiving a request signal.
Certification ECU (smart key ECU assembly)	Sends request codes to each electrical key antenna. Distinguishes and verifies the ID code from the electrical key transmitter sub-assembly and sends signals to each ECU in response to operated functions (controls entire system).

*: w/ Glass Hatch Opener System
