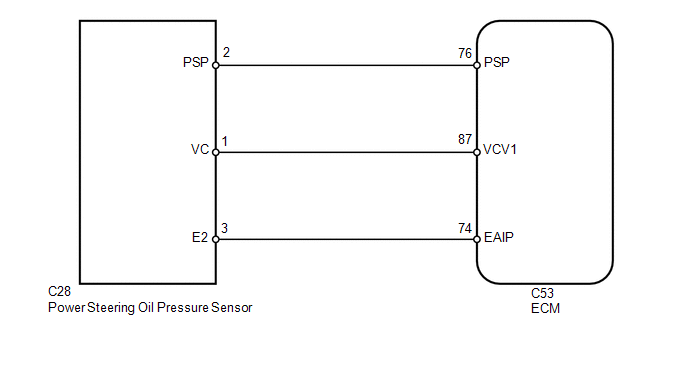

DTC P0550: Power Steering Pressure Sensor Circuit Malfunction; DTC P0552: Power Steering Pressure Sensor Circuit Low Input; DTC P0553: Power Steering Pressure Sensor Circuit High Input [08/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
