Air Conditioning: Connectors

Fig 1: Connectors (1 Of 17)

G12206307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

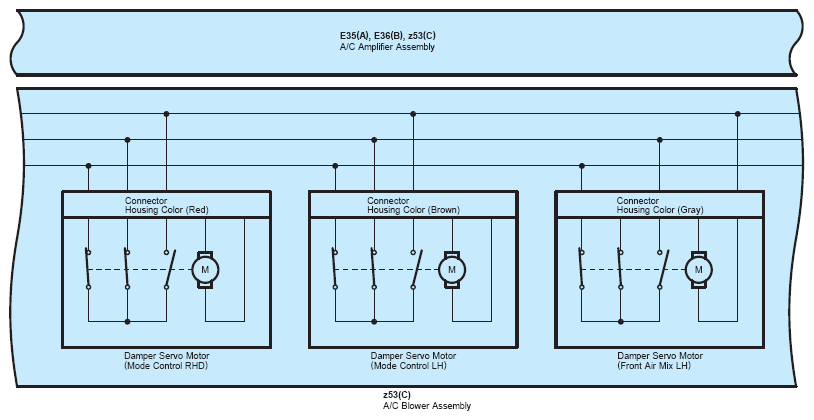

Fig 2: Connectors (2 Of 17)

G12206308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

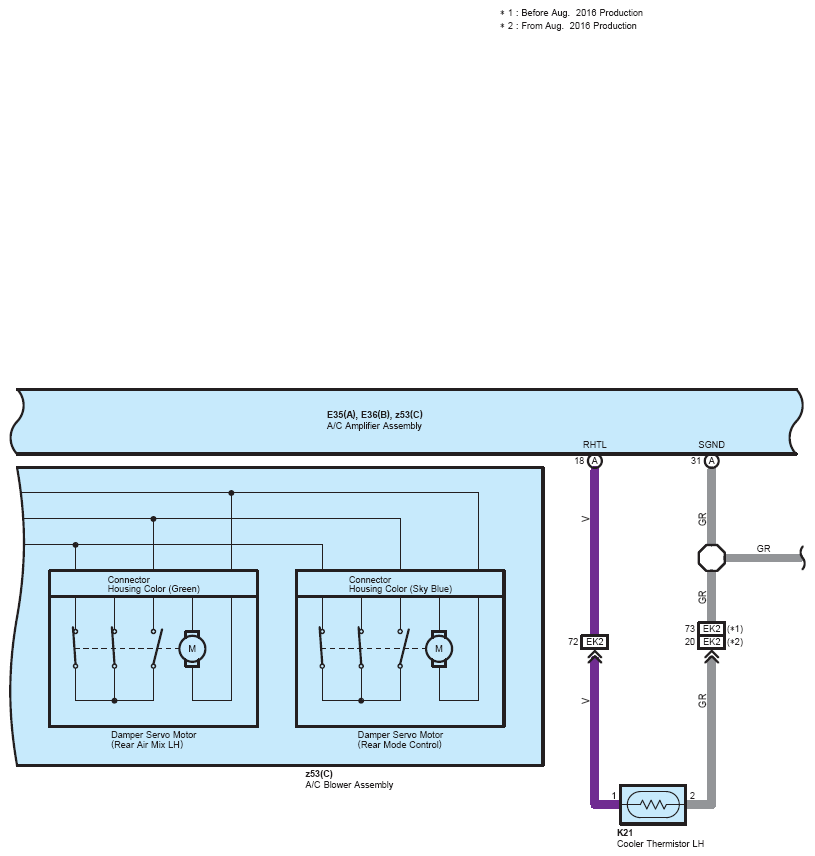

Fig 3: Connectors (3 Of 17)

G12206309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

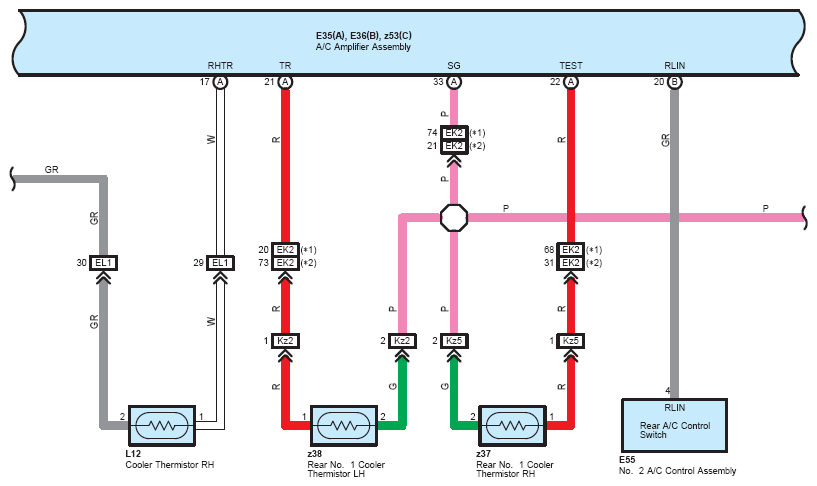

Fig 4: Connectors (4 Of 17)

G12206310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

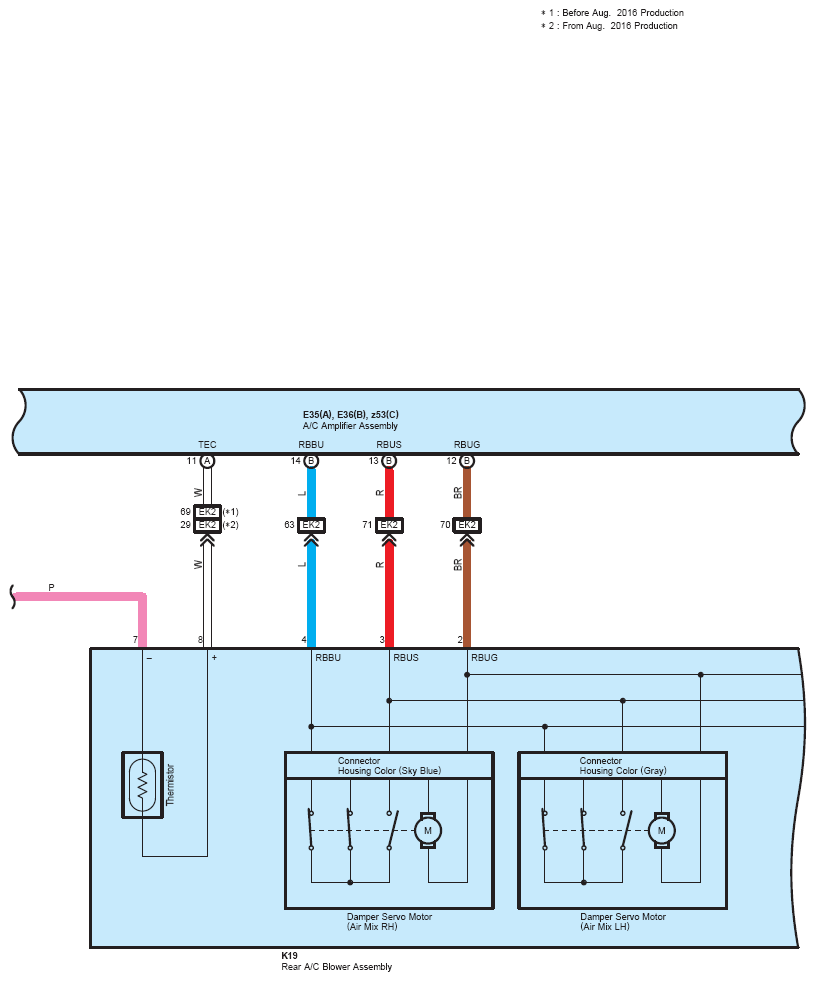

Fig 5: Connectors (5 Of 17)

G12206311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

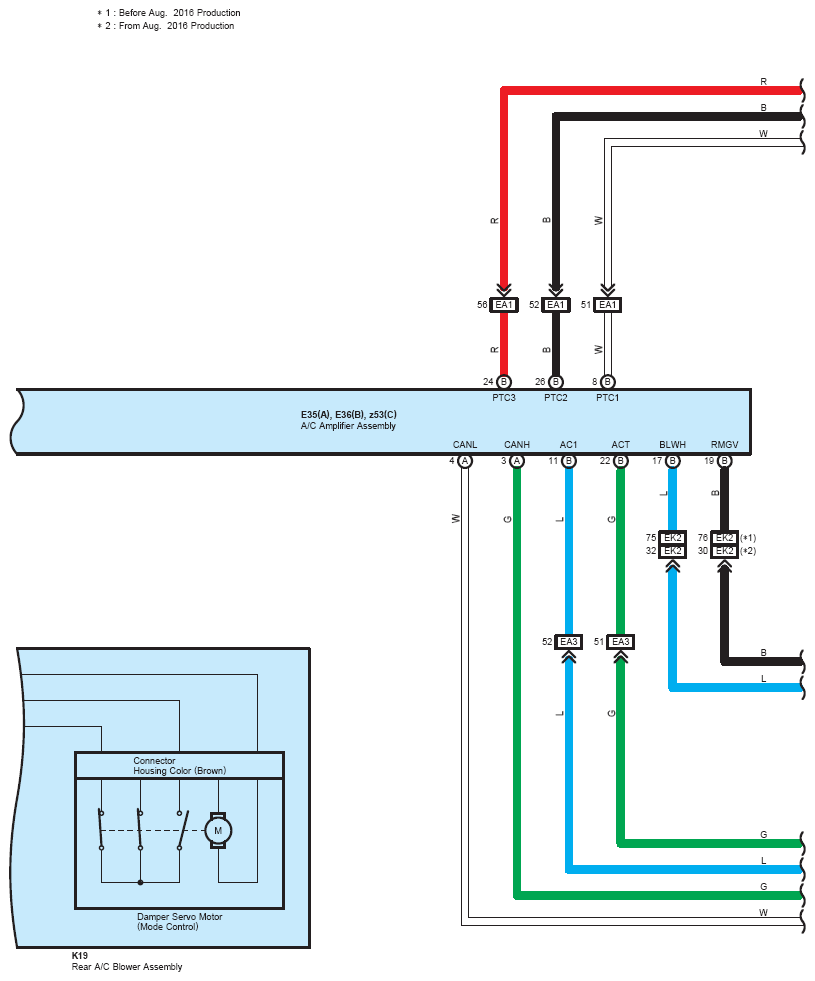

Fig 6: Connectors (6 Of 17)

G12206312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

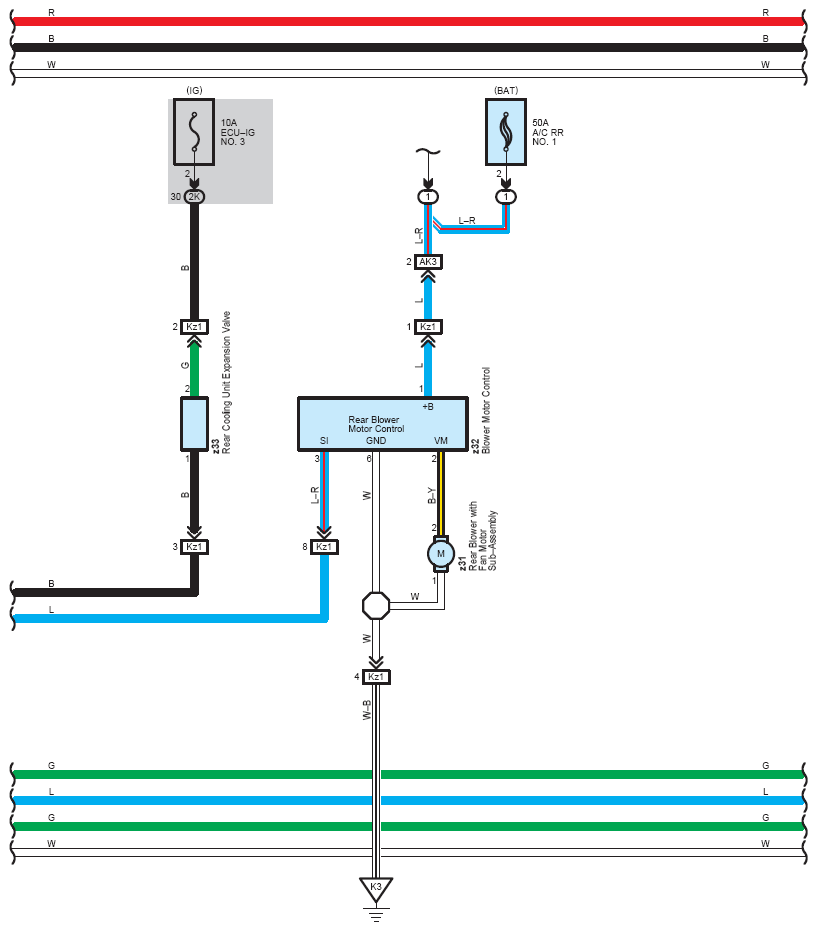

Fig 7: Connectors (7 Of 17)

G12206313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

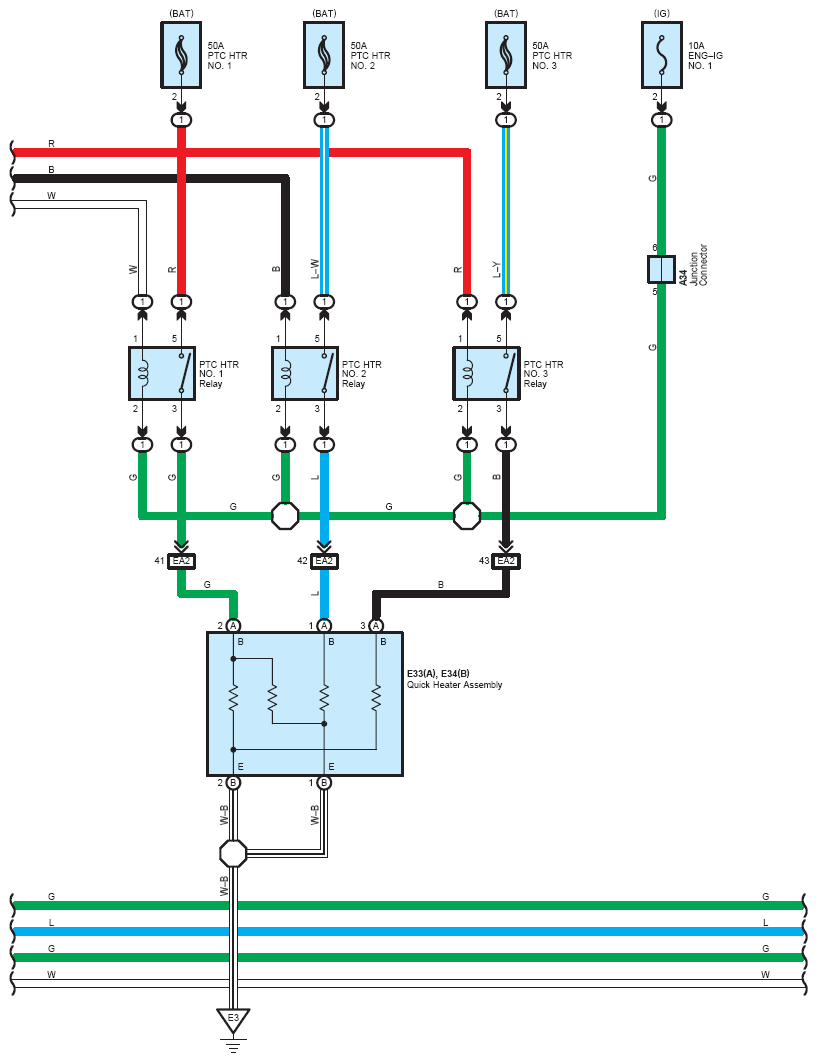

Fig 8: Connectors (8 Of 17)

G12206314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

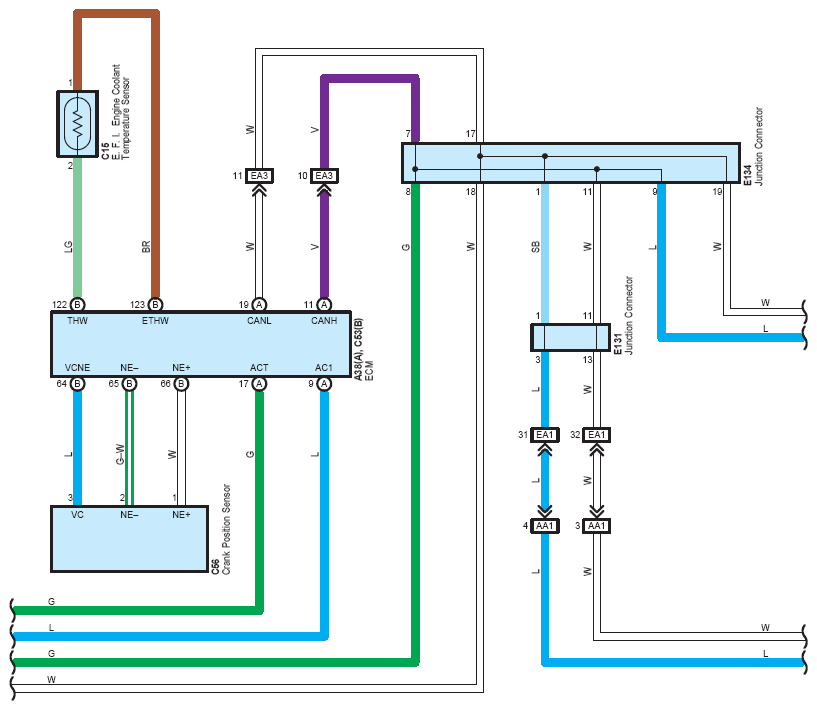

Fig 9: Connectors (9 Of 17)

G12206315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

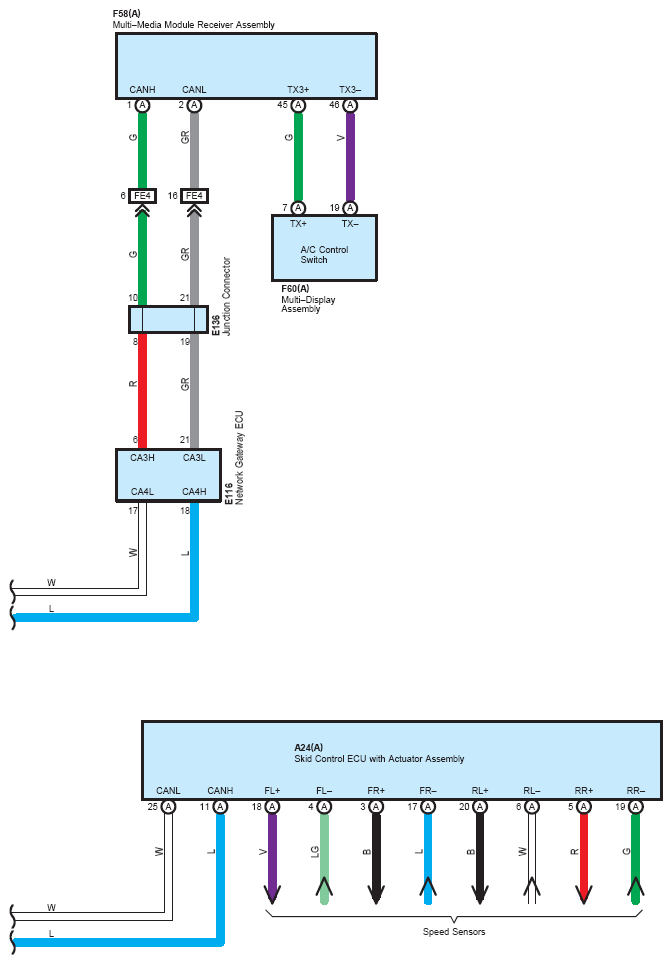

Fig 10: Connectors (10 Of 17)

G12206316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

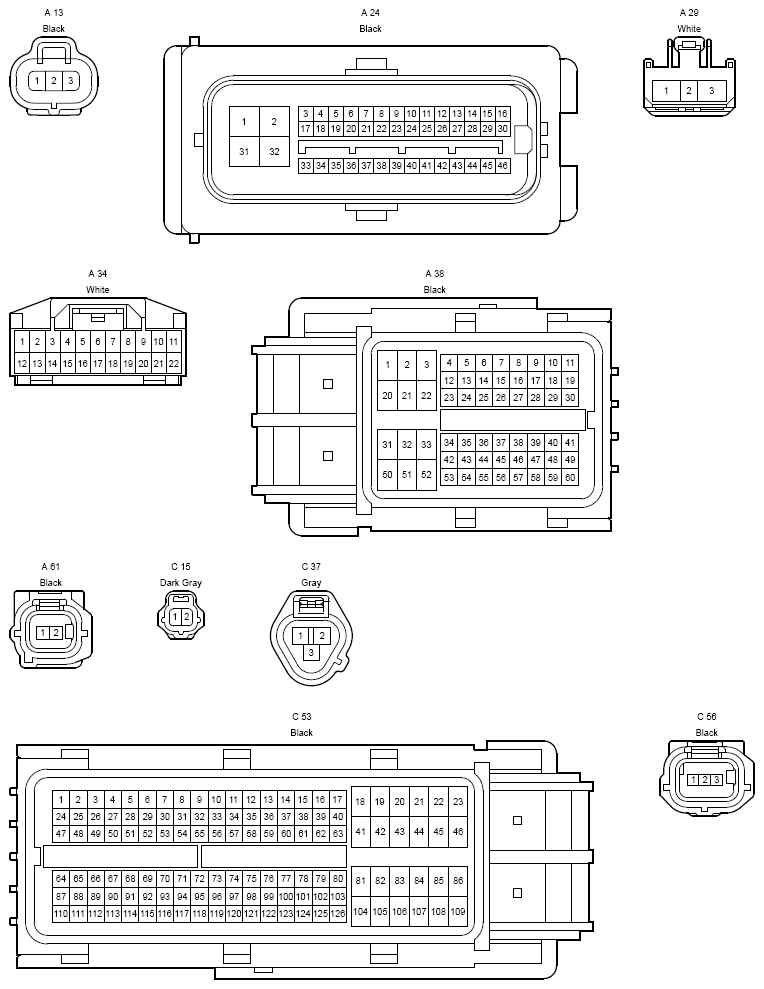

Fig 11: Connectors (11 Of 17)

G12206317

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

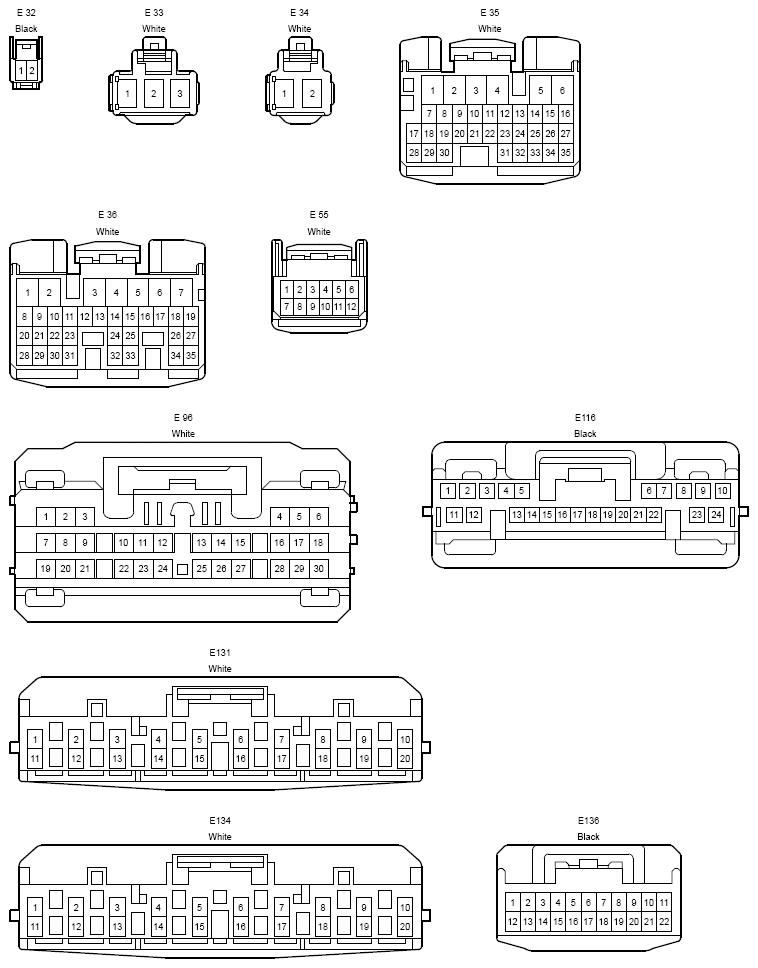

Fig 12: Connectors (12 Of 17)

G12206318

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

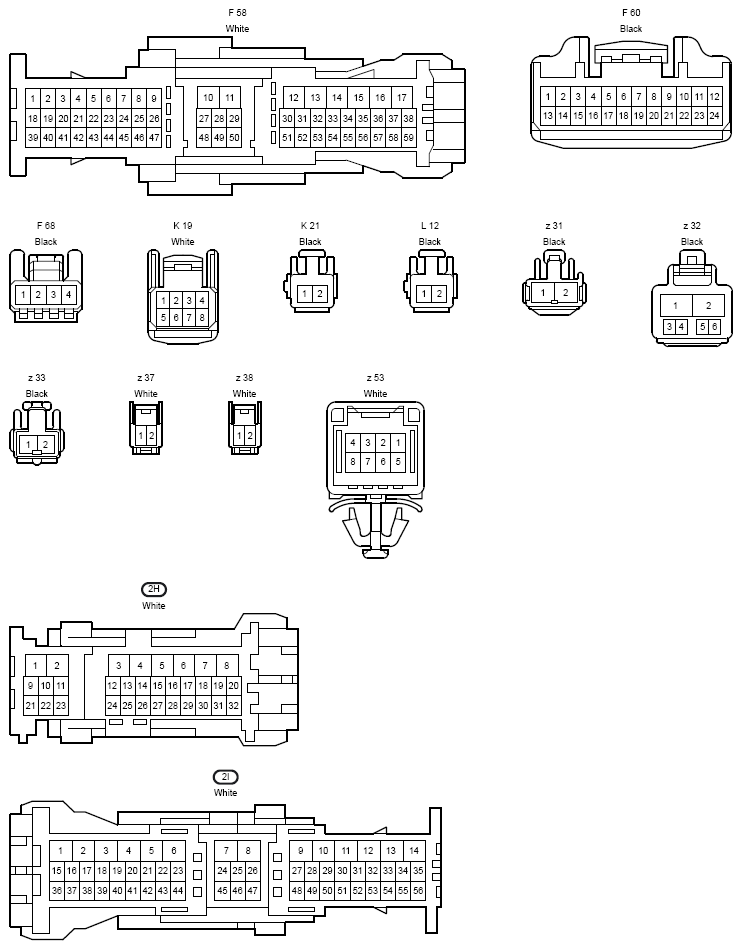

Fig 13: Connectors (13 Of 17)

G12206319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

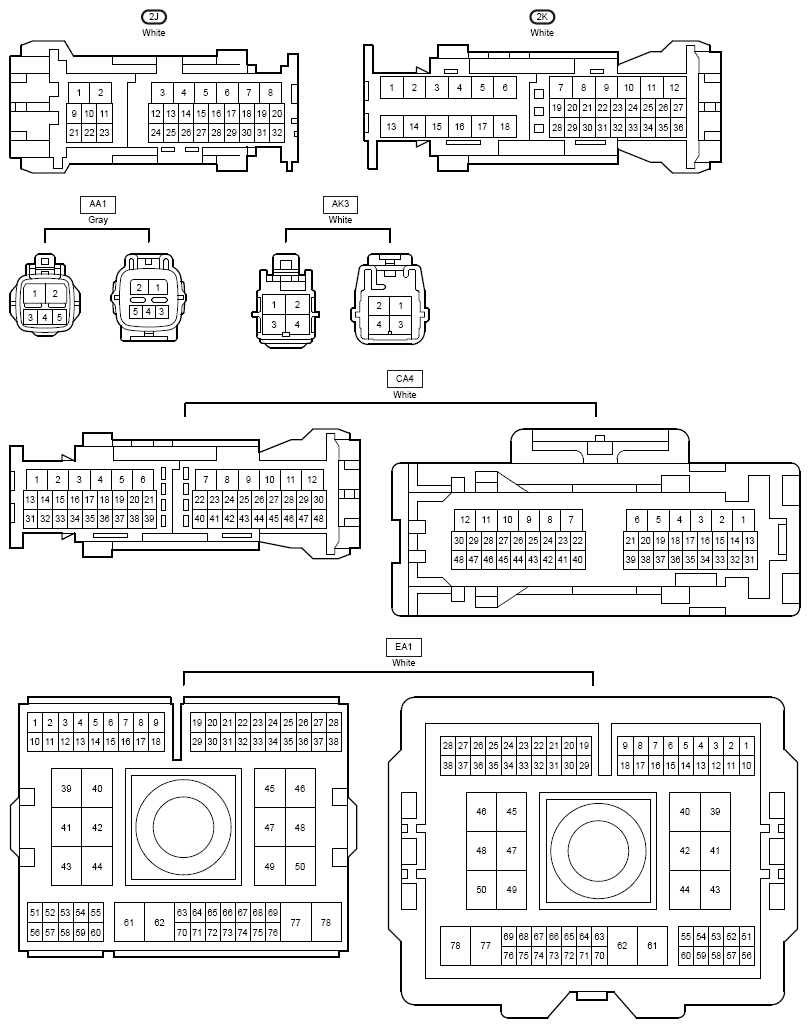

Fig 14: Connectors (14 Of 17)

G12206320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

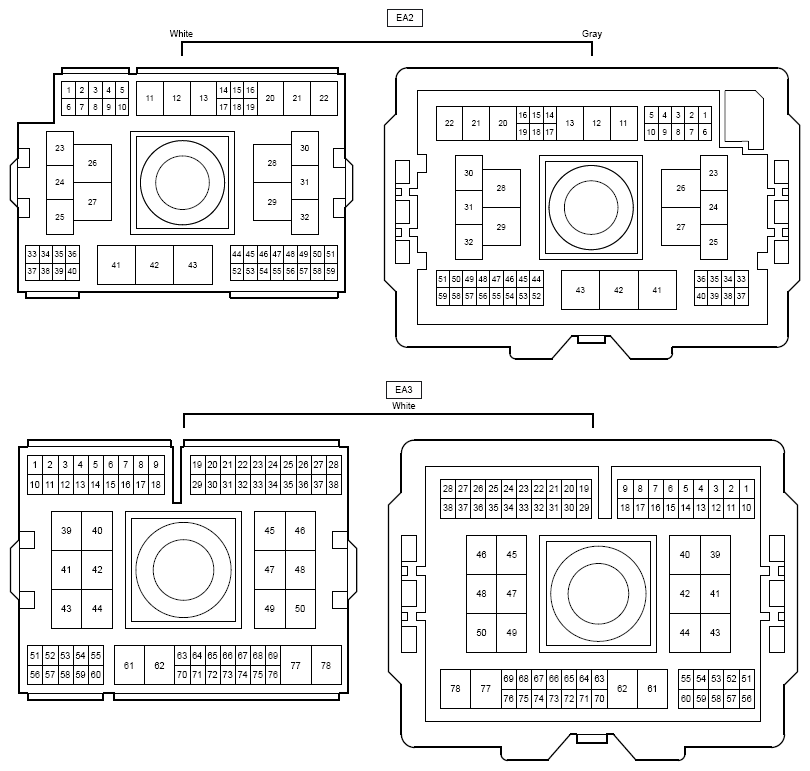

Fig 15: Connectors (15 Of 17)

G12206321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

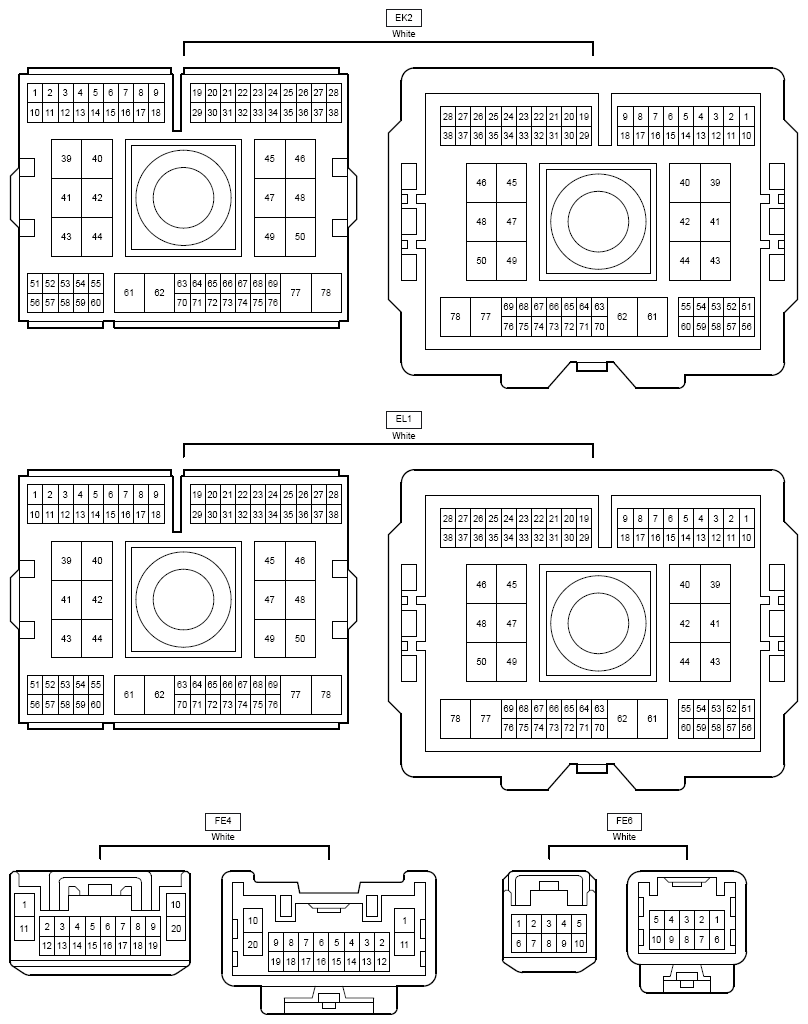

Fig 16: Connectors (16 Of 17)

G12206322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Connectors (17 Of 17)

G12206323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
