System Diagrams

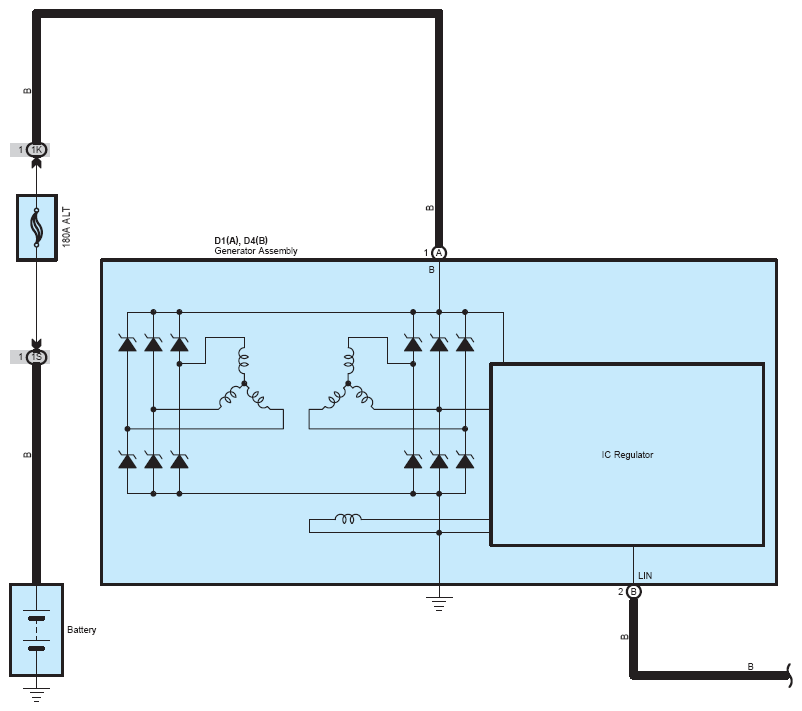

Fig 1: Charging (1 Of 2)
G12206408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

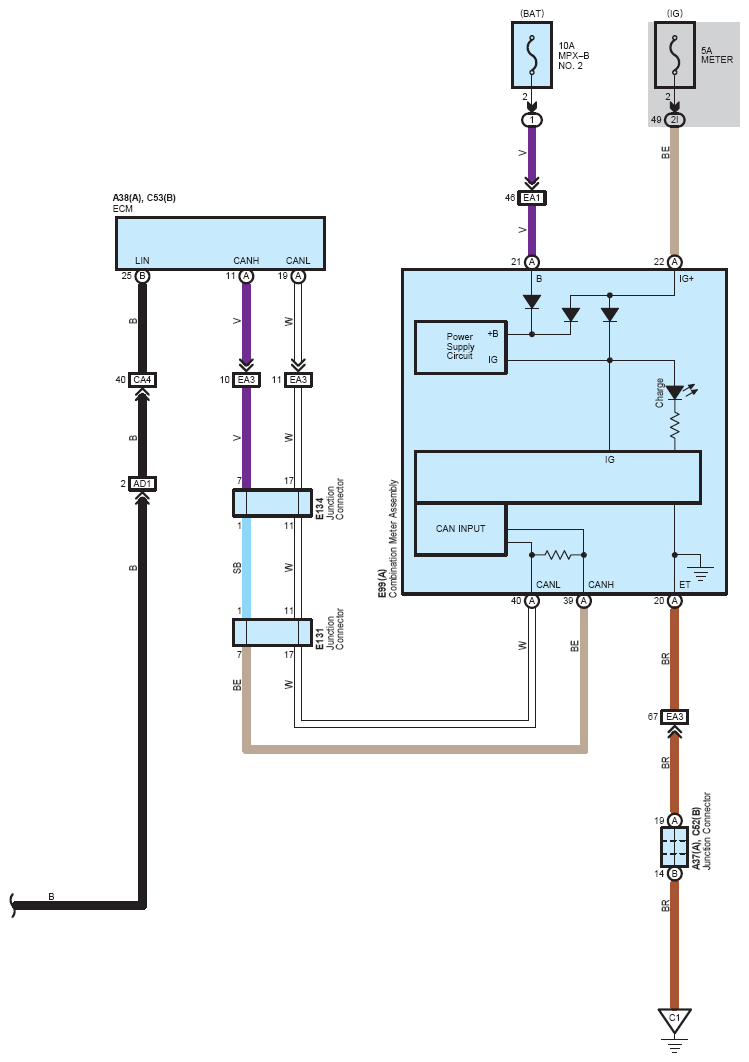

Fig 2: Charging (2 Of 2)
G12206409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
