Door Lock Control: Connectors

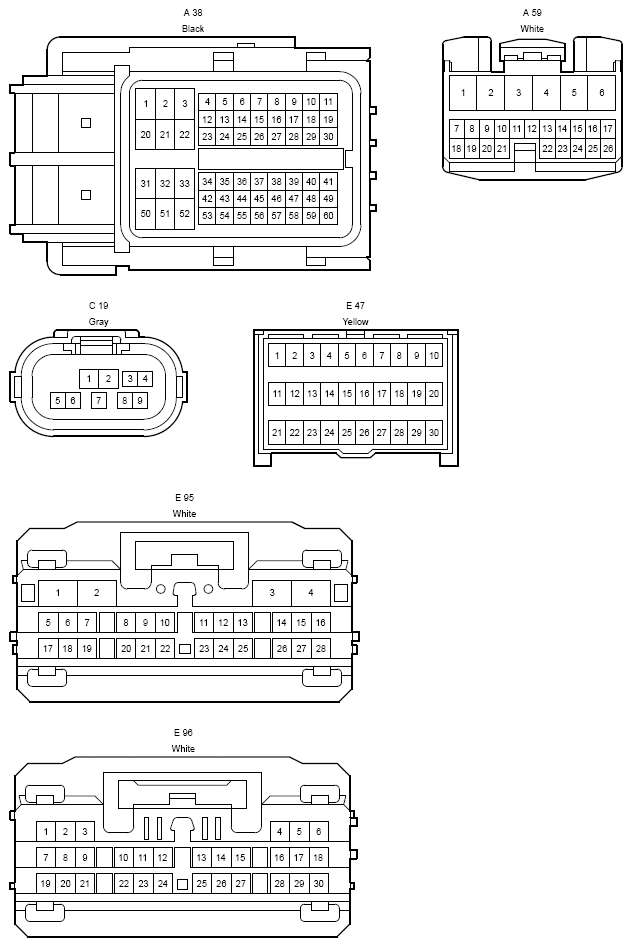

Fig 1: Connectors (1 Of 6)
G12206419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

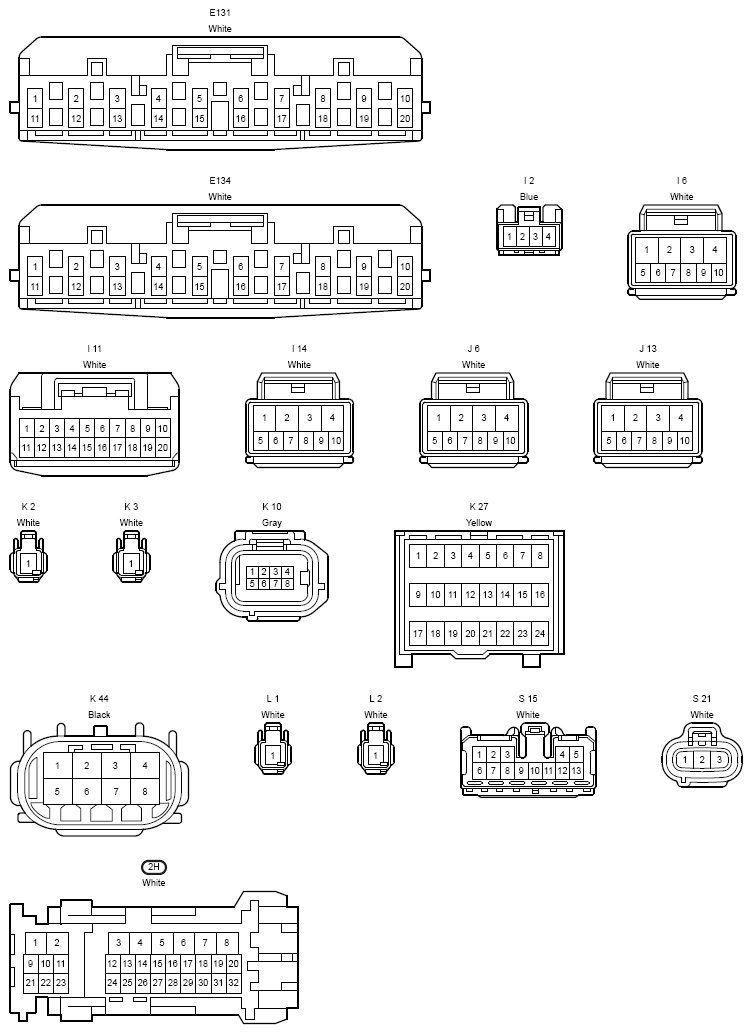

Fig 2: Connectors (2 Of 6)
G12206420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

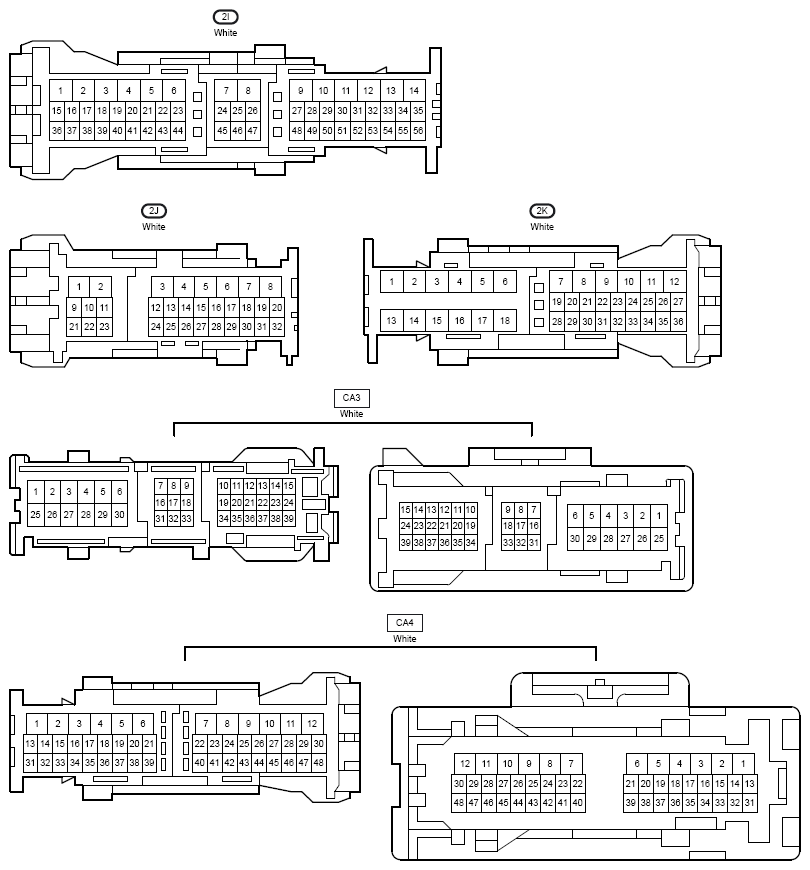

Fig 3: Connectors (3 Of 6)
G12206421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

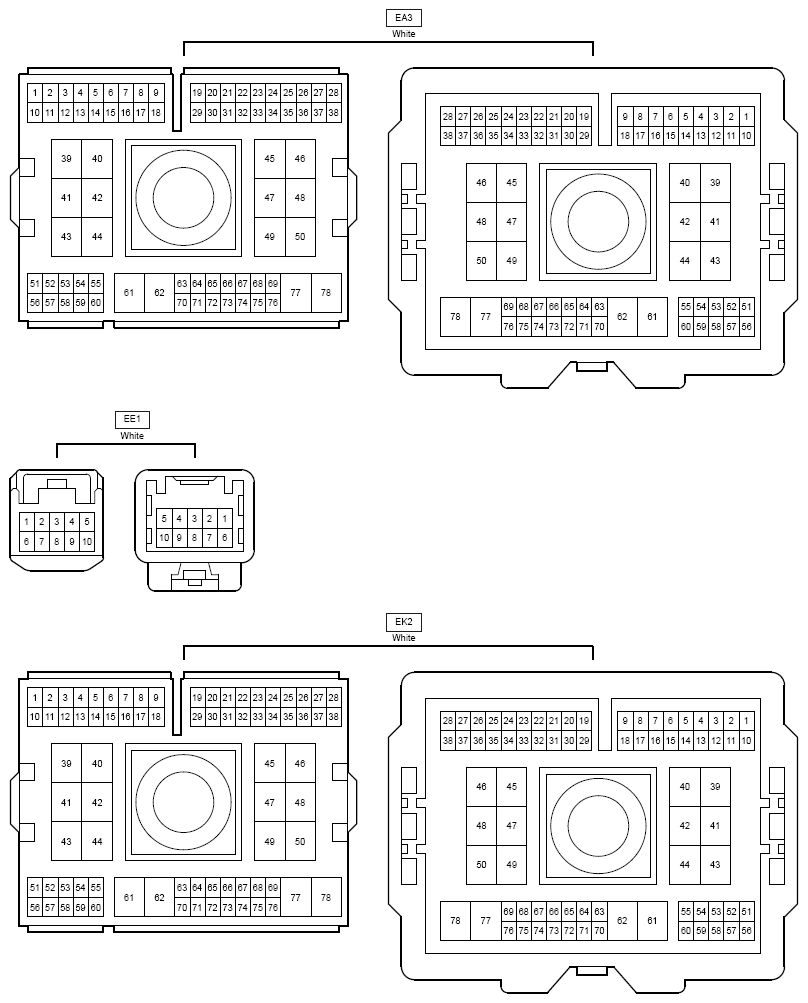

Fig 4: Connectors (4 Of 6)
G12206422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

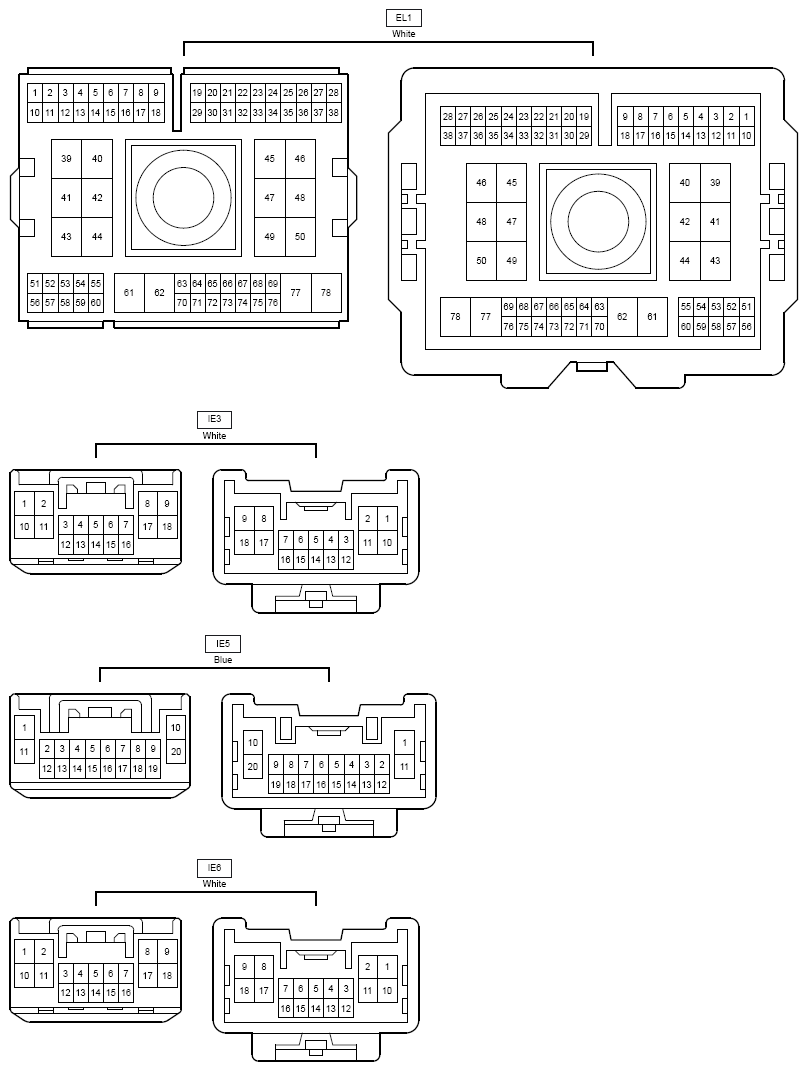

Fig 5: Connectors (5 Of 6)
G12206423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

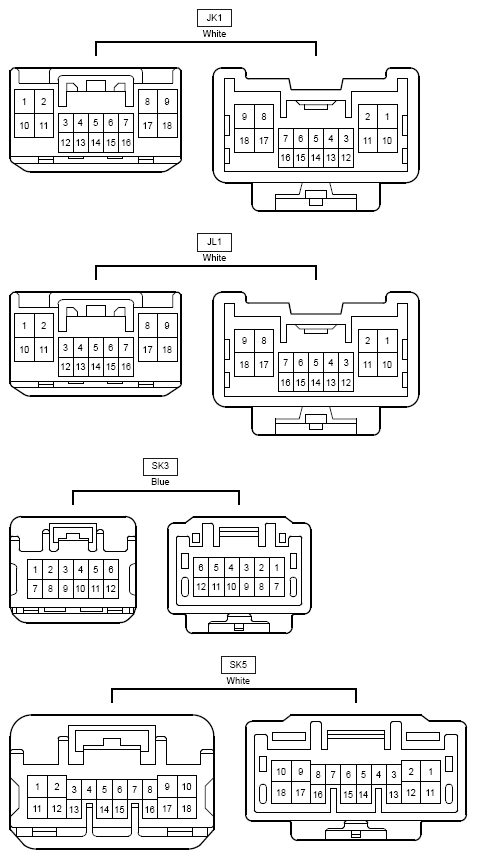

Fig 6: Connectors (6 Of 6)
G12206424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
