System Diagrams

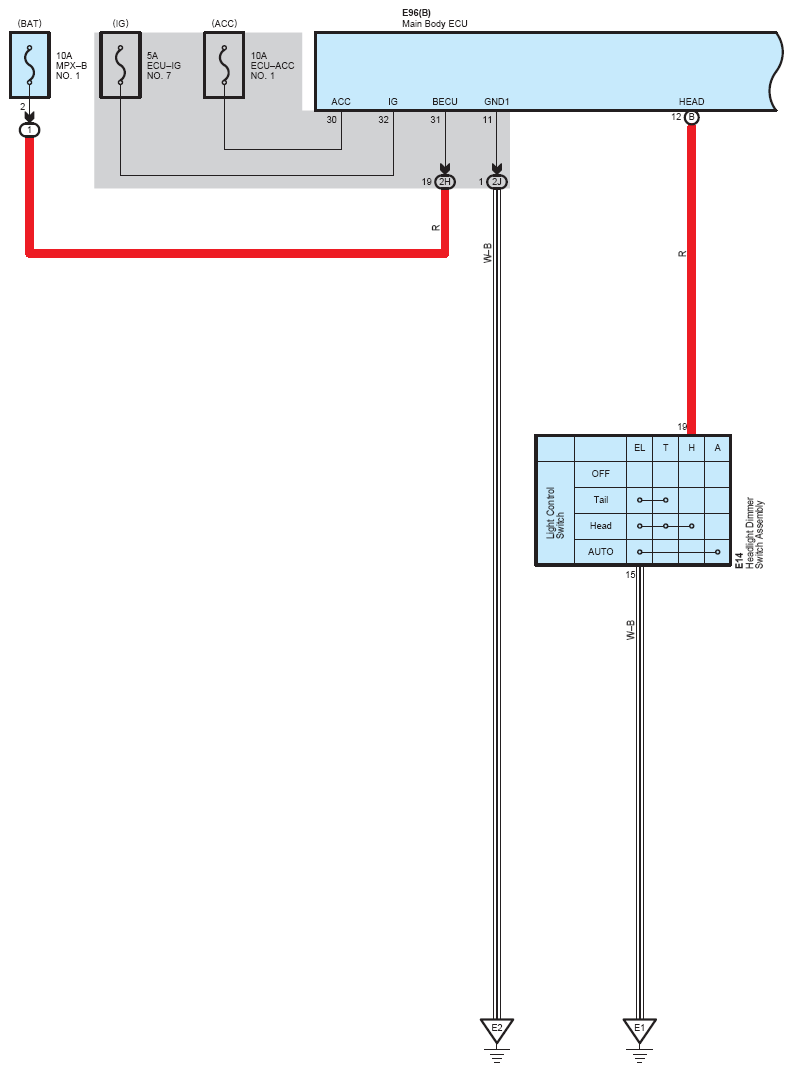

Fig 1: Headlight Beam Level Control (1 Of 3)
G12206520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

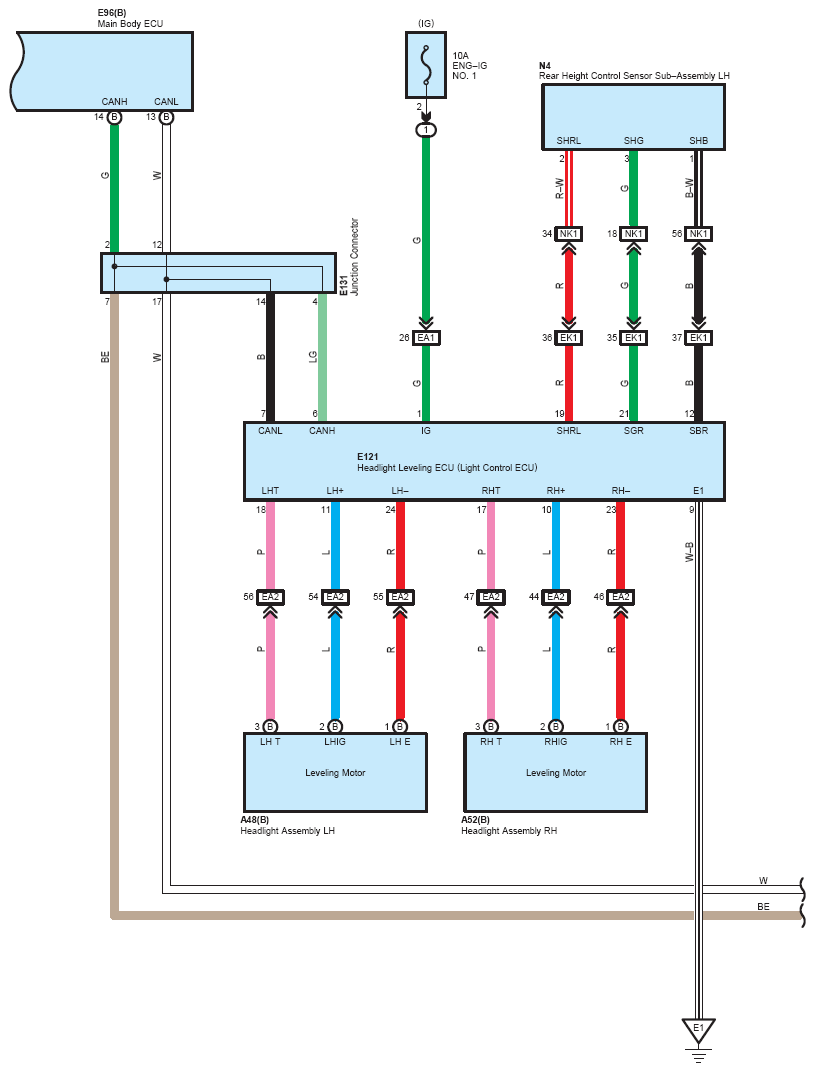

Fig 2: Headlight Beam Level Control (2 Of 3)
G12206521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

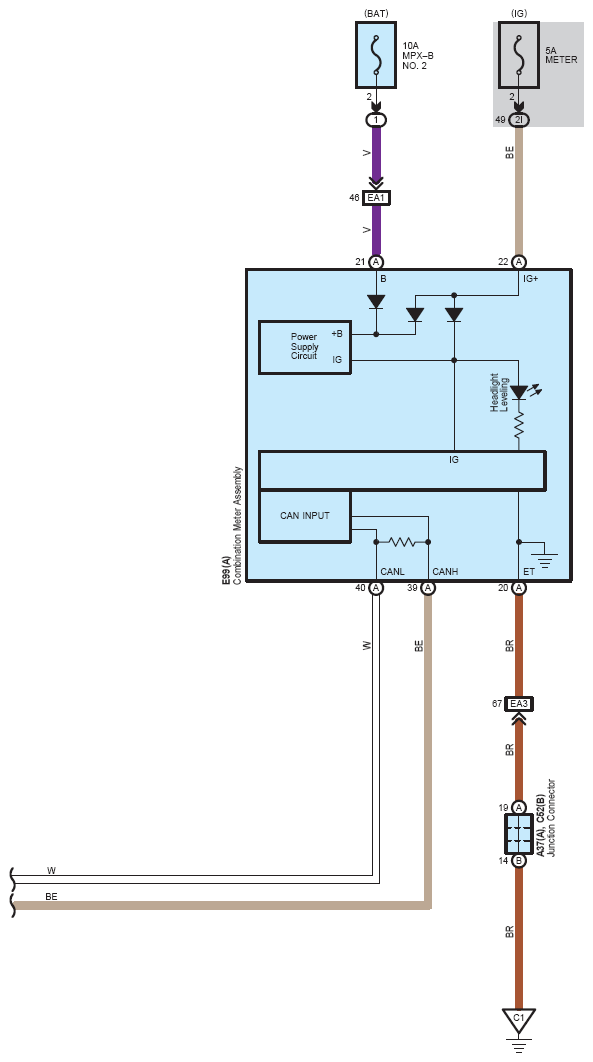

Fig 3: Headlight Beam Level Control (3 Of 3)
G12206522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
