System Diagrams — 2017 Toyota Land Cruiser Service Manual ~ LEMON Manuals

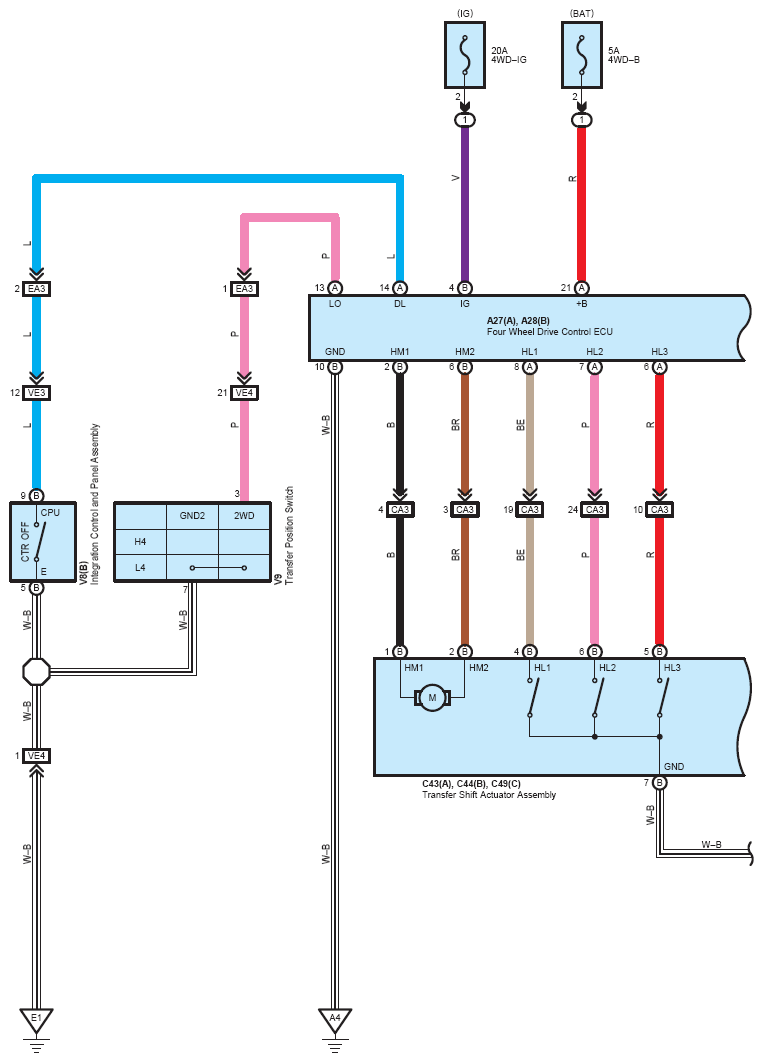

Fig 1: Multi Mode 4WD (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

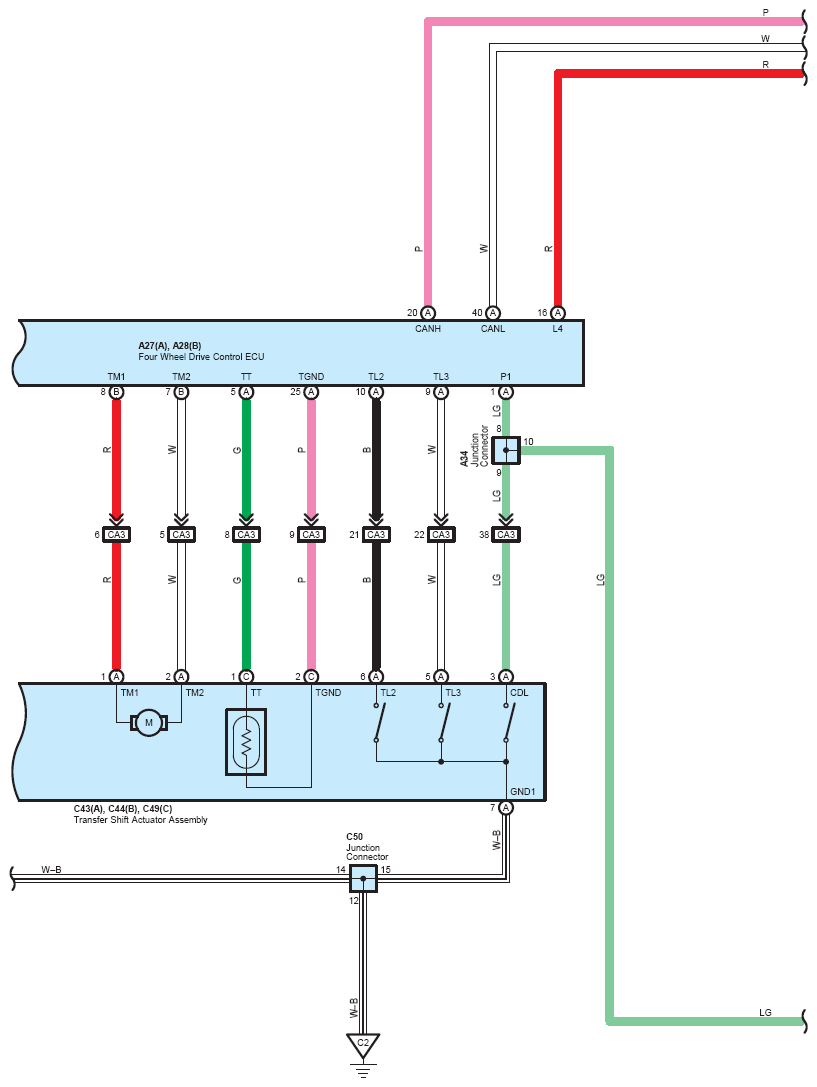

Fig 2: Multi Mode 4WD (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

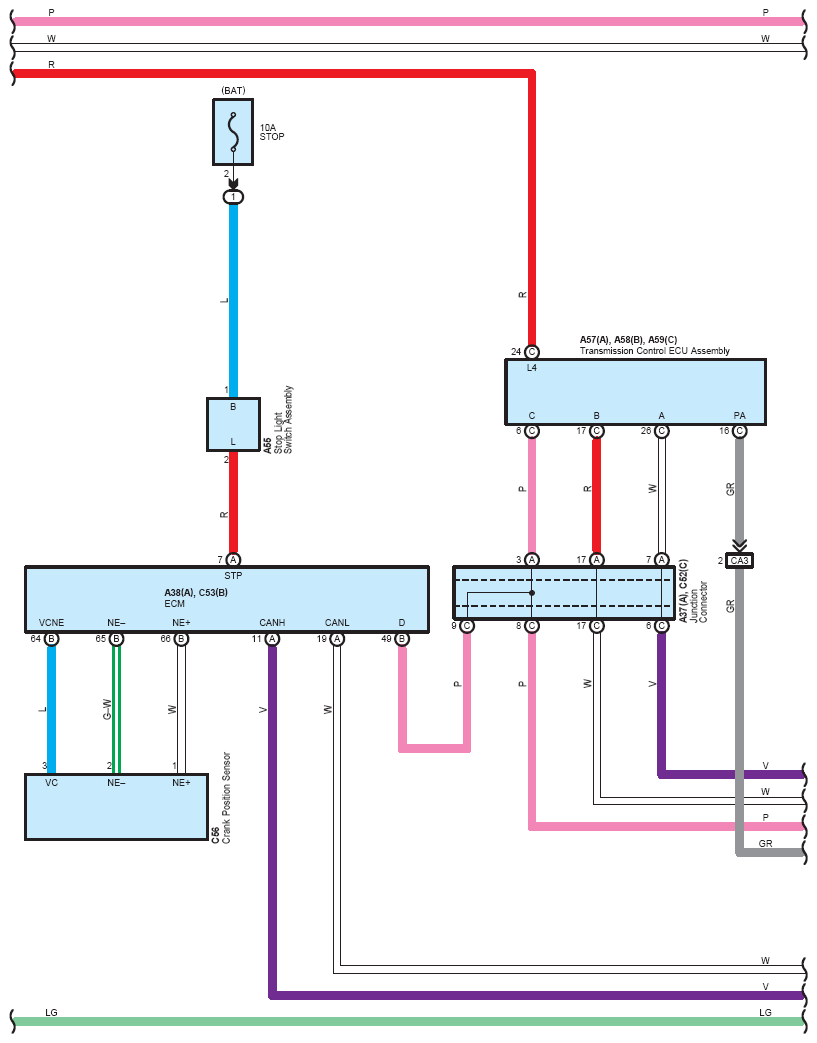

Fig 3: Multi Mode 4WD (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

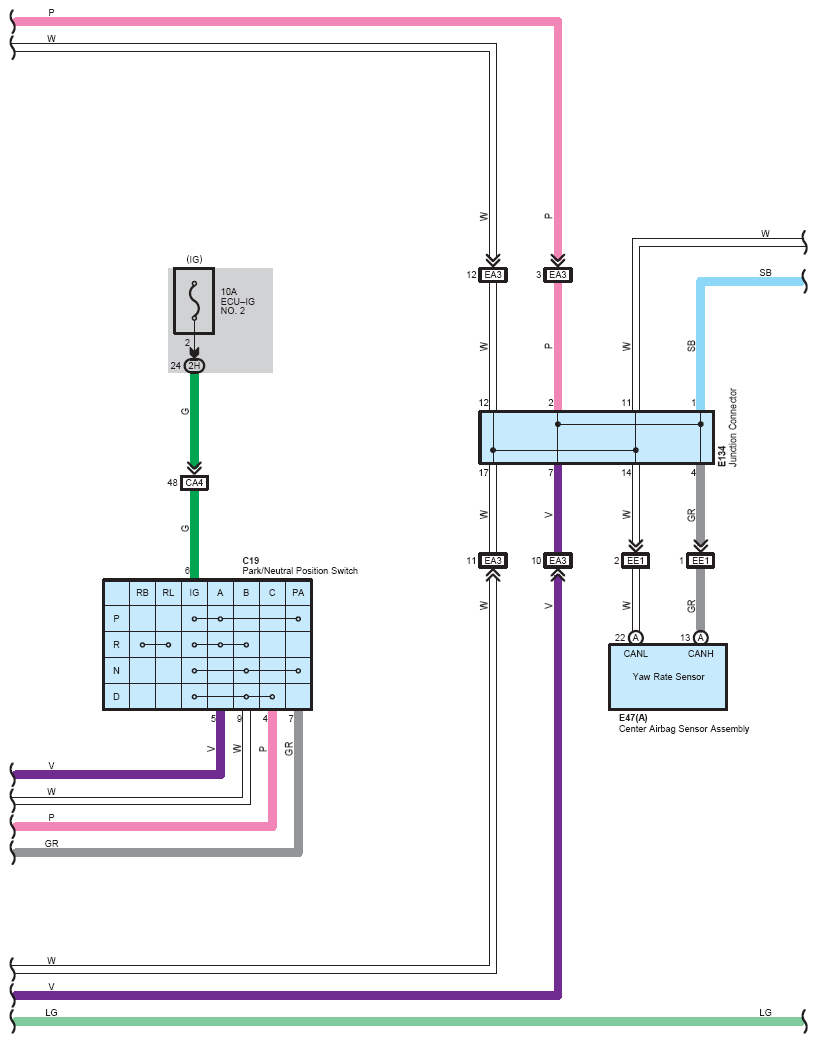

Fig 4: Multi Mode 4WD (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

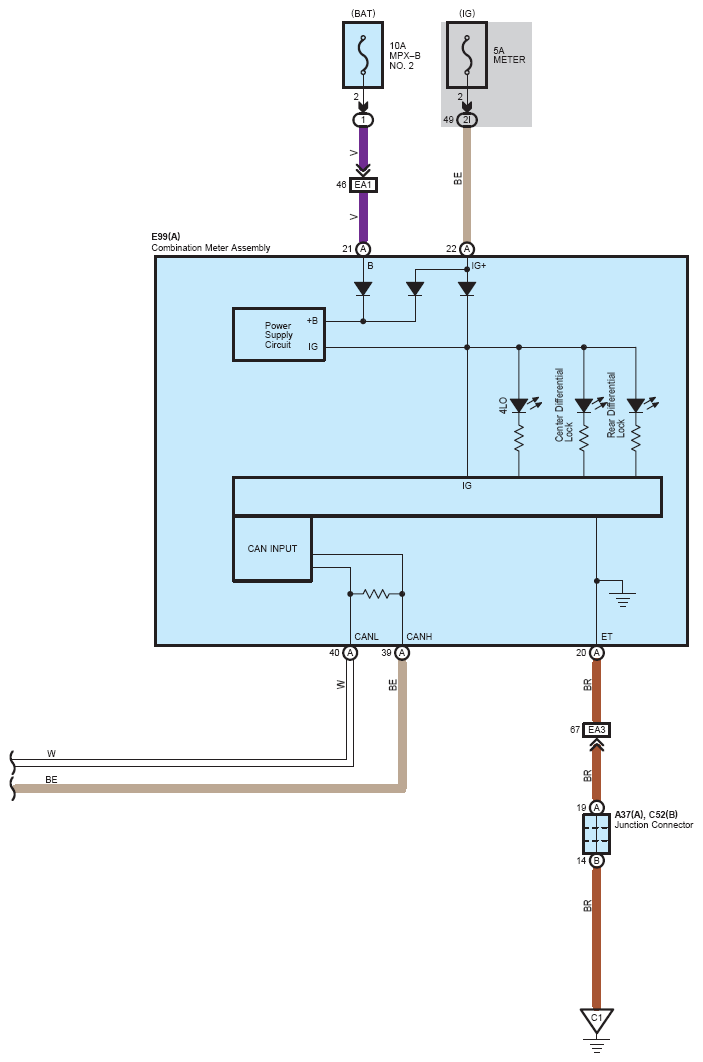

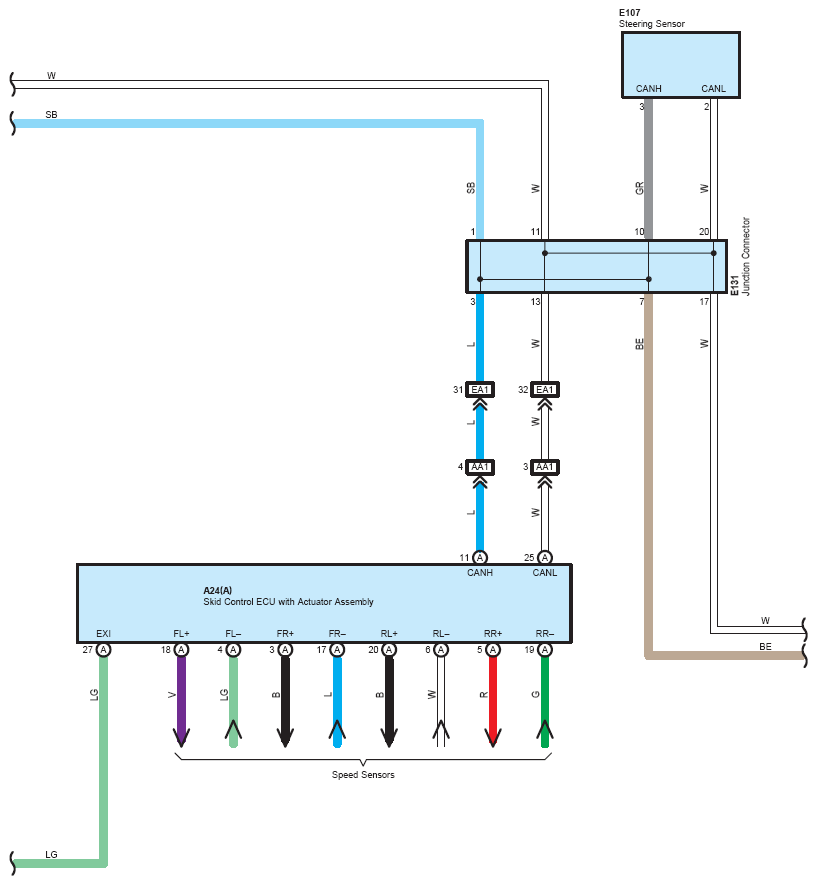

Fig 5: Multi Mode 4WD (5 Of 6)

Fig 6: Multi Mode 4WD (6 Of 6)
