System Diagrams

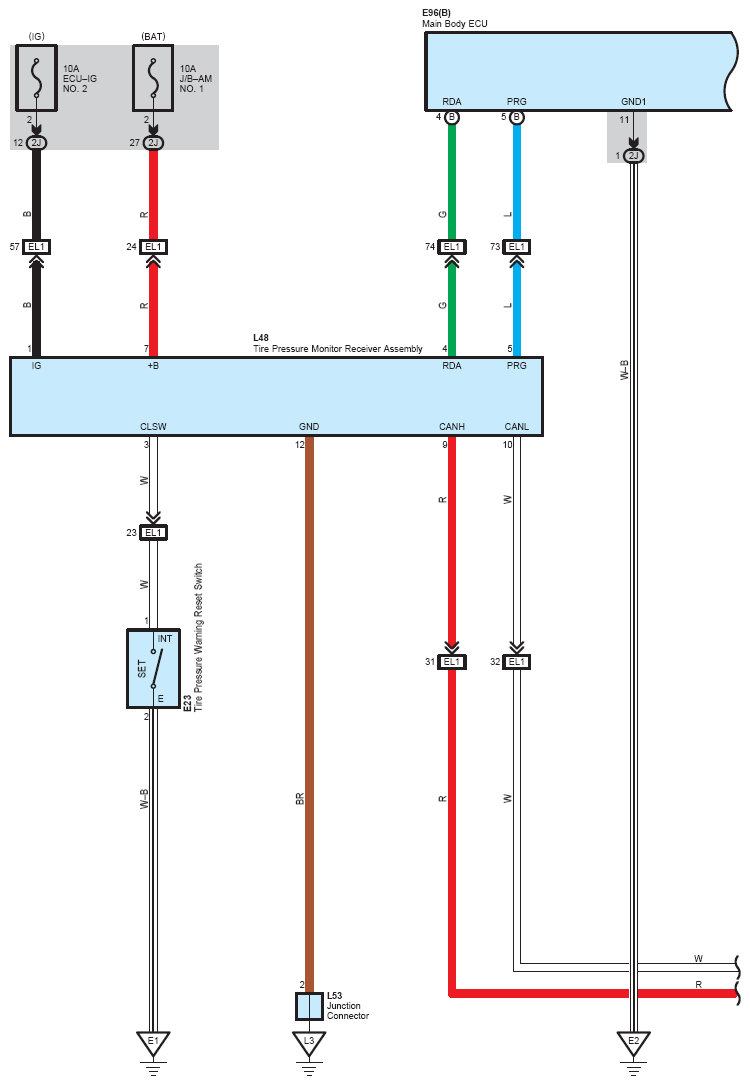

Fig 1: Tire Pressure Warning System (1 Of 3)
G12206804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

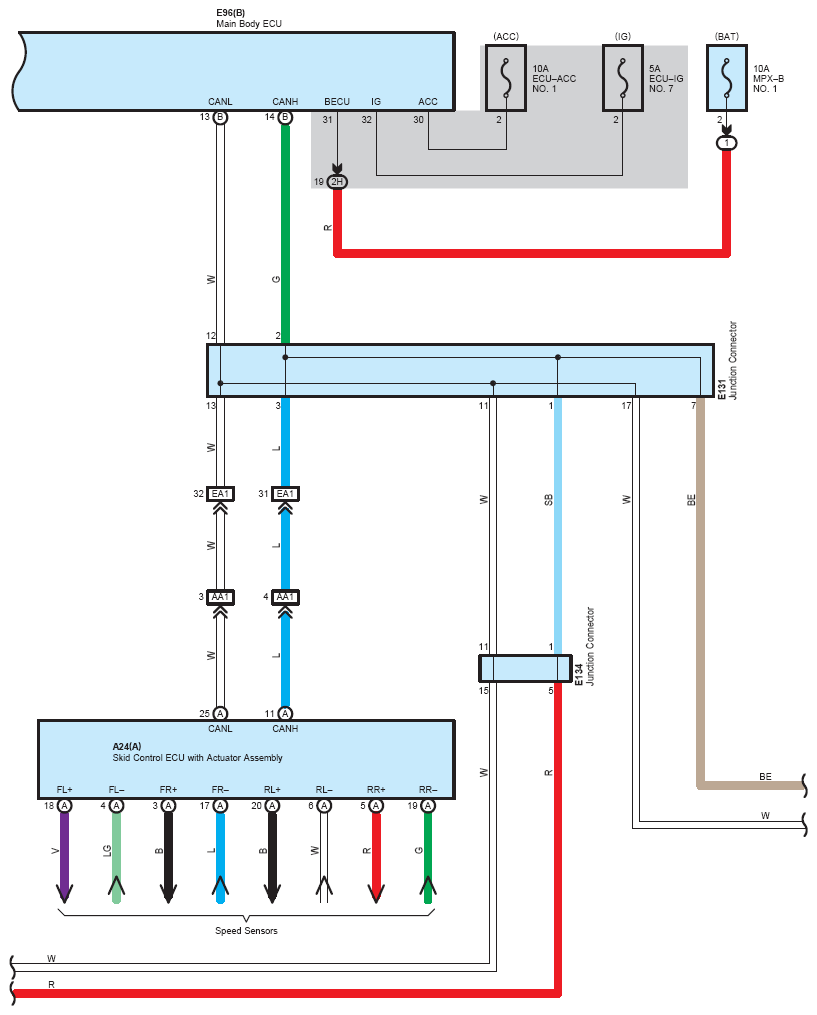

Fig 2: Tire Pressure Warning System (2 Of 3)
G12206805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

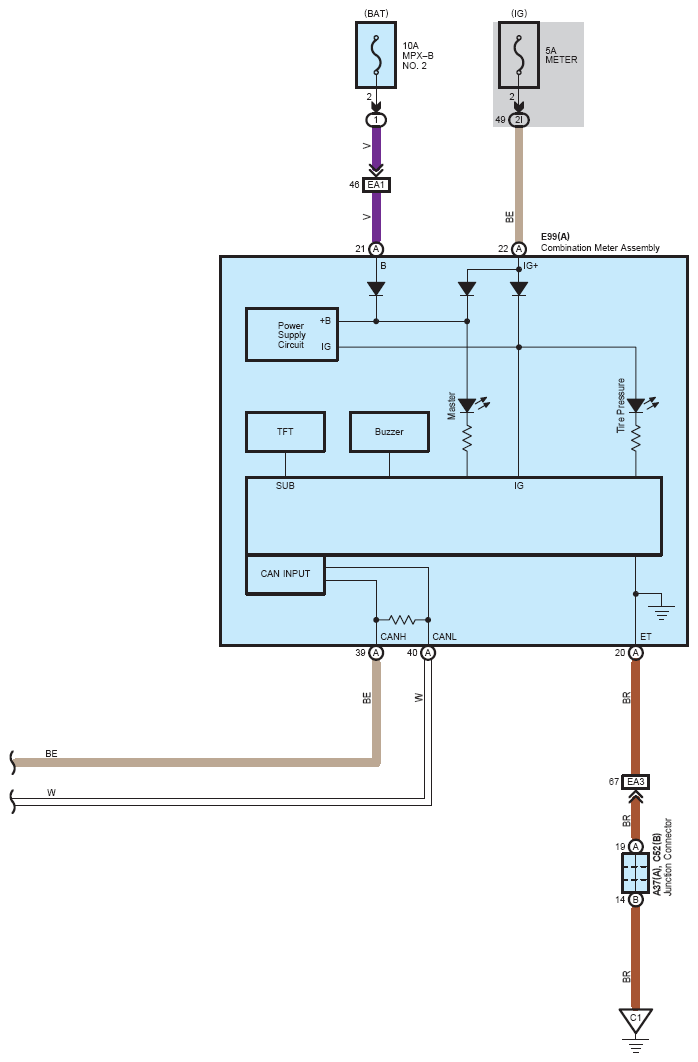

Fig 3: Tire Pressure Warning System (3 Of 3)
G12206806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
