System Diagrams

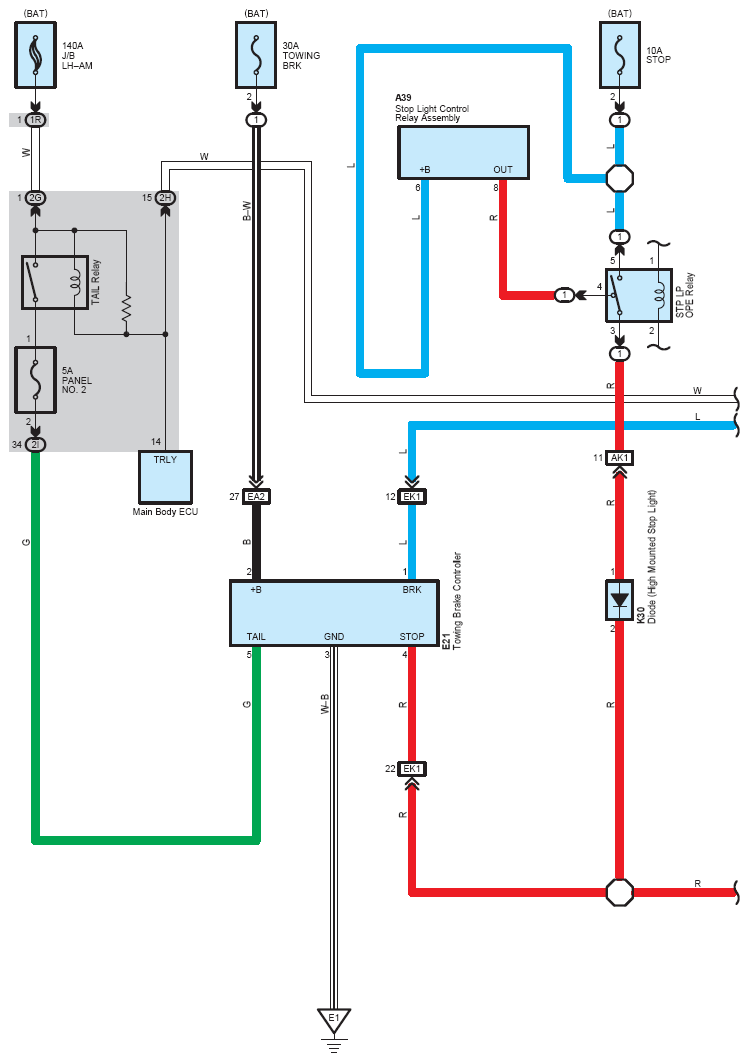

Fig 1: Trailer Towing (1 Of 4)

G12206818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

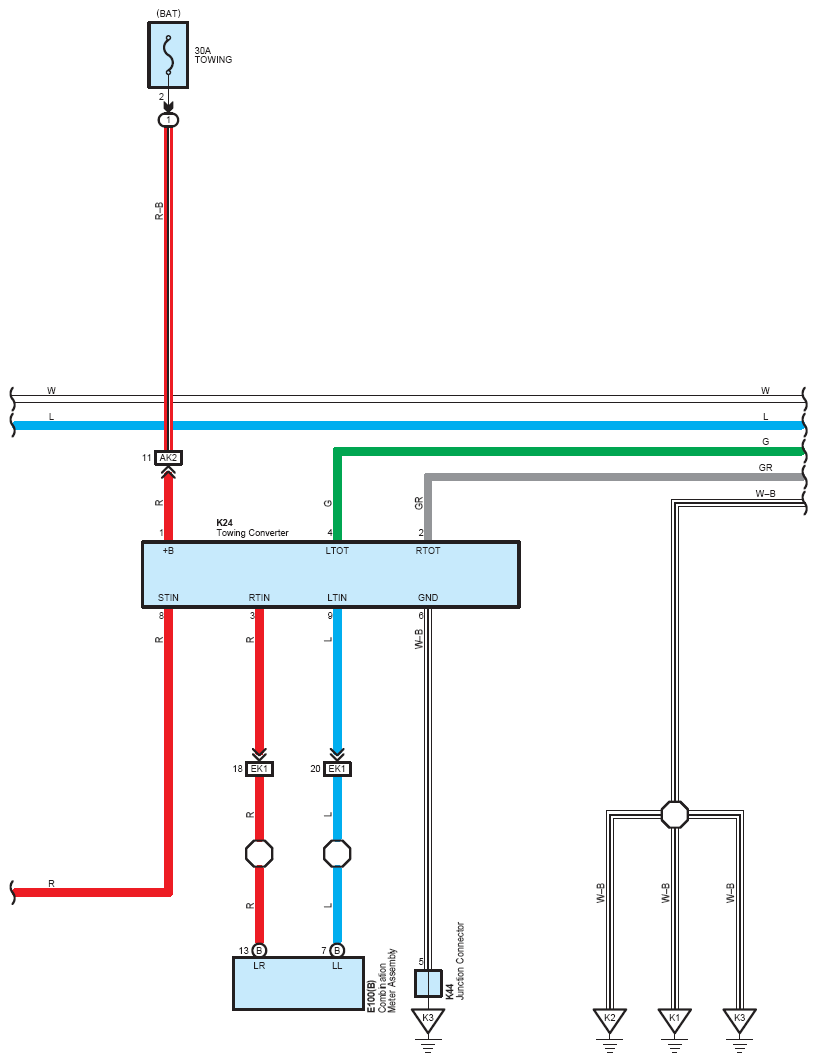

Fig 2: Trailer Towing (2 Of 4)

G12206819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

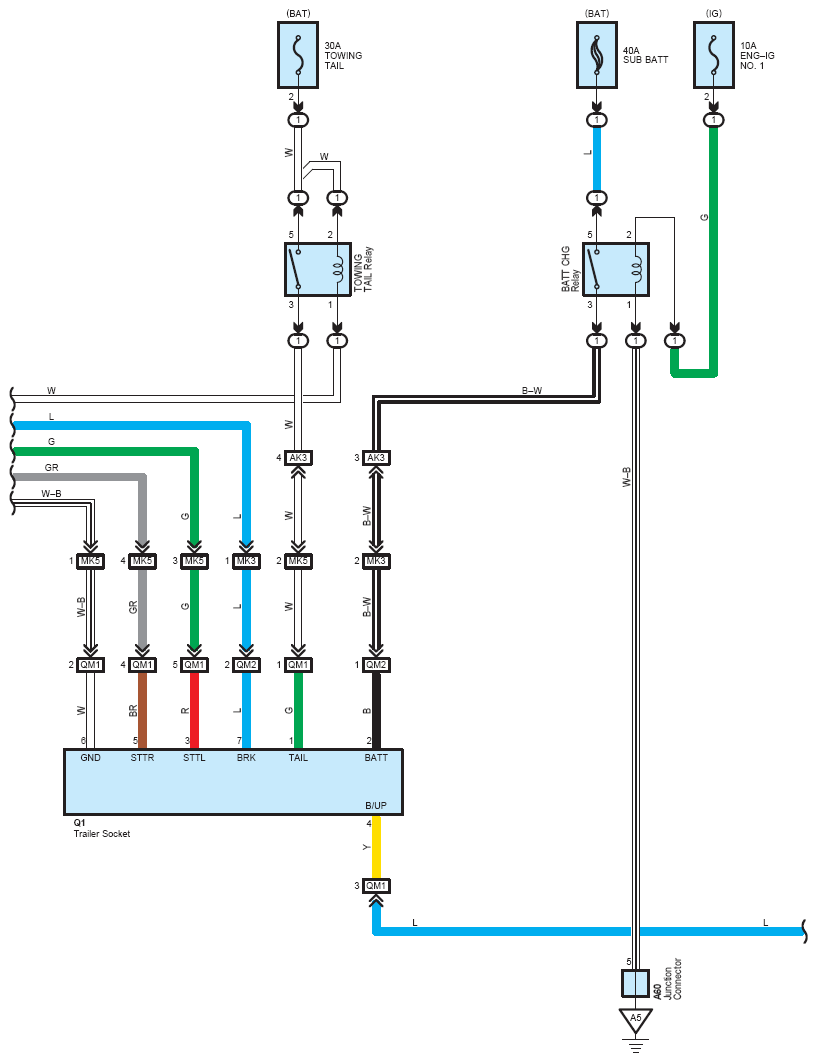

Fig 3: Trailer Towing (3 Of 4)

G12206820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Trailer Towing (4 Of 4)

G12206821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
