DTC B27A2: Open in Front Passenger Side Electrical Antenna Circuit [06/2015 - ]: Procedure

1. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and front door outside handle assembly RH.

   OK

   Connectors are properly connected.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  2

1. Disconnect the G41 certification ECU (smart key ECU assembly) connector.
2. Disconnect the L4 front door outside handle assembly RH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G41-2 (CLG2) - L4-6 (ANT1)	Always	Below 1 Ω
   G41-1 (CG2B) - L4-4 (ANT2)	Always	Below 1 Ω
   G41-11 (E) - Body ground	Always	Below 1 Ω
   G41-2 (CLG2) or L4-6 (ANT1) - Body ground	Always	10 kΩ or higher
   G41-1 (CG2B) or L4-4 (ANT2) - Body ground	Always	10 kΩ or higher

4. Reconnect the G41 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

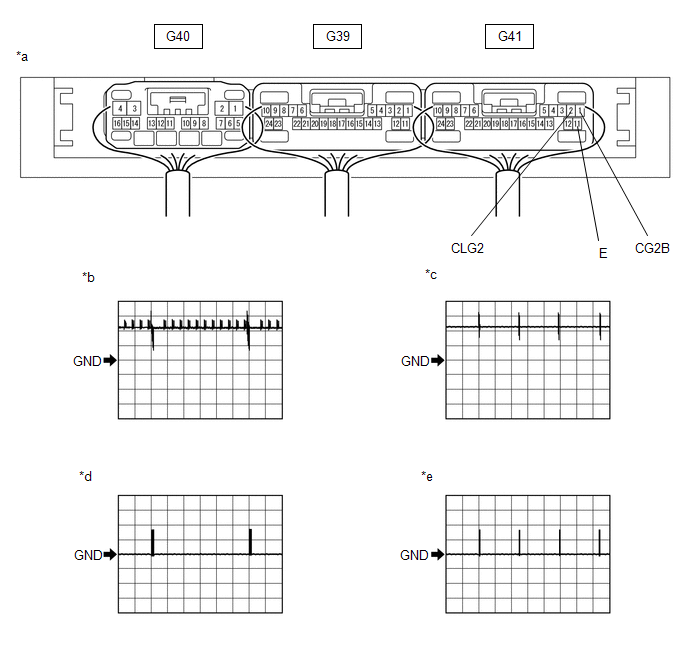

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G41-2 (CLG2) - G41-11 (E)	Procedure: Power switch off All doors closed Electrical key transmitter sub-assembly not inside vehicle All doors locked through wireless operation (electrical key transmitter sub-assembly brought inside detection area*)	5 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)
   	Procedure: Power switch off All doors closed Electrical key transmitter sub-assembly not inside vehicle All doors locked through wireless operation (electrical key transmitter sub-assembly brought outside detection area*)	5 V/DIV., 100 ms./DIV.	Pulse generation (See waveform 2)
   G41-1 (CG2B) - G41-11 (E)	Procedure: Power switch off All doors closed Electrical key transmitter sub-assembly not inside vehicle All doors locked through wireless operation (electrical key transmitter sub-assembly brought inside detection area*)	5 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 3)
   	Procedure: Power switch off All doors closed Electrical key transmitter sub-assembly not inside vehicle All doors locked through wireless operation (electrical key transmitter sub-assembly brought outside detection area*)	5 V/DIV., 100 ms./DIV.	Pulse generation (See waveform 4)

   1. *: For details about the entry function detection area, refer to Operation Check.

      Refer to OPERATION CHECK [06/2015 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  4

1. Replace the front door outside handle assembly RH with a new one or the front door outside handle assembly LH if it is functioning properly.

   Refer to DISASSEMBLY [06/2015 - 11/2018] , or refer to DISASSEMBLY [11/2018 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  5

1. Clear the DTCs.

   Body Electrical > Smart Key > Clear DTCs

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  6

1. Check for DTCs.

   Body Electrical > Smart Key > Trouble Codes

   OK

   DTC B27A2 is not output.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH WAS DEFECTIVE)

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]
