Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [06/2015 - ]: Procedure

  1. READ VALUE USING TECHSTREAM (LUGGAGE COMPARTMENT DOOR OPEN MODE)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Smart Key / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Smart Key > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Trunk Open Mode Entry luggage compartment open mode ON or OFF Customization status displayed -

      Body Electrical > Smart Key > Data List

      Tester Display
      Trunk Open Mode

      Result

      Result Proceed to
      Trunk Open Mode is ON A
      Trunk Open Mode is OFF B

    Result:

    B

    PERFORM CUSTOMIZE SETTING (Proceed to Customize Parameters). Refer to  CUSTOMIZE PARAMETERS [06/2015 - ]

    Result:

    A

    See step  2

  2. CHECK LUGGAGE COMPARTMENT DOOR OPENER SYSTEM
    1. Operate the luggage door opening switch assembly in the vehicle and check that the luggage compartment door opens.

      Refer to OPERATION CHECK [06/2015 - ]

      Result

      Result Proceed to
      The luggage compartment door opens A
      The luggage compartment door does not open B

    Result:

    B

    GO TO LUGGAGE COMPARTMENT DOOR OPENER SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2015 - ]

    Result:

    A

    See step  3

  3. READ VALUE USING TECHSTREAM (TR/B-DOOR UNLOCK SW)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Smart Key / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Smart Key > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Tr/B-Door Unlock SW Luggage compartment door opening switch assembly ON or OFF ON: Luggage compartment door opening switch assembly pressed
      OFF: Luggage compartment door opening switch assembly pressed      		 -

      Body Electrical > Smart Key > Data List

      Tester Display
      Tr/B-Door Unlock SW

      OK

      The Techstream display changes correctly in response to the operation of the luggage compartment door opening switch assembly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  4

  4. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage compartment) and perform an entry luggage compartment open function check.
      GTY603286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Approximately 0.3 m (0.984 ft.)

      HINT:

      • Communication may not be possible if the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the rear bumper.
      • When the electrical key transmitter sub-assembly is brought near the electrical key antenna (outside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
      • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
      • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

      OK

      Entry functions operate normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    AFFECTED BY WAVE INTERFERENCE

    Result:

    NG

    See step  5

  5. CHECK KEY DIAGNOSTIC MODE
    1. Check the following antenna in key diagnostic mode.

      Body Electrical > Smart Key > Utility

      Tester Display
      Communication Check (Key Diag Mode)
    2. When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage compartment), check that the wireless buzzer sounds.

      HINT:

      • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
      • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
      GTY603286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0.7 to 1.0 m (2.30 to 3.28 ft.)

      OK

      Wireless buzzer sounds.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    NG

    See step  6

  6. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT))
    1. Disconnect the G39 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the Q12 electrical key antenna (outside luggage compartment) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G39-2 (CLG8) - Q12-2 (ANTE8) Always Below 1 Ω
      G39-1 (CG8B) - Q12-1 (CLGB) Always Below 1 Ω
      G39-2 (CLG8) or Q12-2 (ANTE8) - Body ground Always 10 kΩ or higher
      G39-1 (CG8B) or Q12-1 (CLGB) - Body ground Always 10 kΩ or higher
    4. Reconnect the G39 certification ECU (smart key ECU assembly) connector.
    5. Reconnect the Q12 electrical key antenna (outside luggage compartment) connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT))

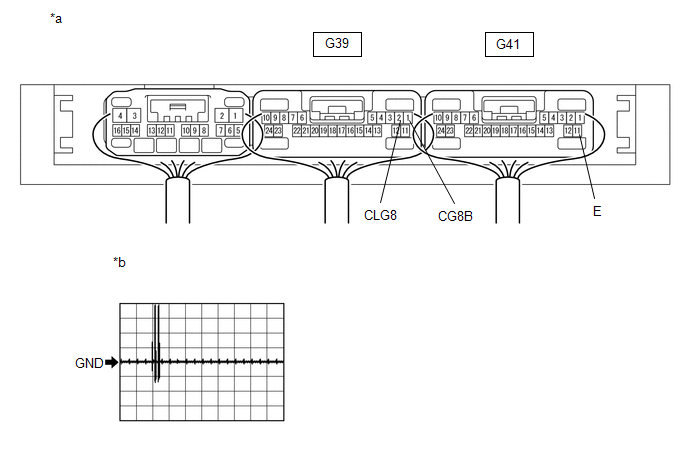

    GTY602361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component with harness connected
    (Certification ECU (Smart Key ECU Assembly))    		 *b Waveform 1
    1. Using an oscilloscope, check the waveform.

      OK

      Tester Connection Condition Tool Setting Specified Condition
      G39-2 (CLG8) - G41-11 (E) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage electrical key switch off → on
      		 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform 1)
      G39-1 (CG8B) - G41-11 (E) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage electrical key switch off → on
      		 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform 1)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT). Refer to  REMOVAL [06/2015 - ]

    Result:

    OK

    See step  8

  8. CHECK ENTRY LUGGAGE COMPARTMENT OPEN OPERATION
    1. Connect all connectors and check that the entry luggage compartment open function operates.

      Refer to OPERATION CHECK [06/2015 - ]

      Result

      Result Proceed to
      Luggage open function operates normally A
      Luggage open function does not operate normally B

    Result:

    A

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    Result:

    B

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

  9. INSPECT LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY
    1. Remove the luggage compartment door opening switch assembly.

      Refer to REMOVAL [06/2015 - ]

    2. Inspect the luggage compartment door opening switch assembly.

      Refer to PROCEDURE - Step 1

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY. Refer to  REMOVAL [06/2015 - ]

    Result:

    OK

    See step  10

  10. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY)
    1. Disconnect the G39 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the P26 luggage compartment door opening switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G39-5 (TSW5) - P26-2 (UL) Always Below 1 Ω
      P26-1 (E) - Body ground Always Below 1 Ω
      G39-5 (TSW5) or P26-2 (UL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. CHECK ENTRY LUGGAGE COMPARTMENT OPEN OPERATION
    1. Connect all connectors and check that the entry luggage compartment open function operates.

      Refer to OPERATION CHECK [06/2015 - ]

      Result

      Result Proceed to
      Luggage open function operates normally A
      Luggage open function does not operate normally B

    Result:

    A

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    Result:

    B

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]
