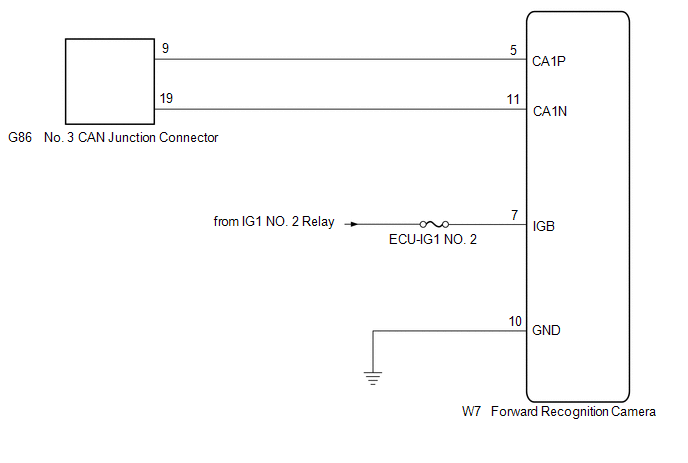

Front Camera Module Communication Stop Mode [11/2018 - ]: Wiring Diagram

GTY911015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
