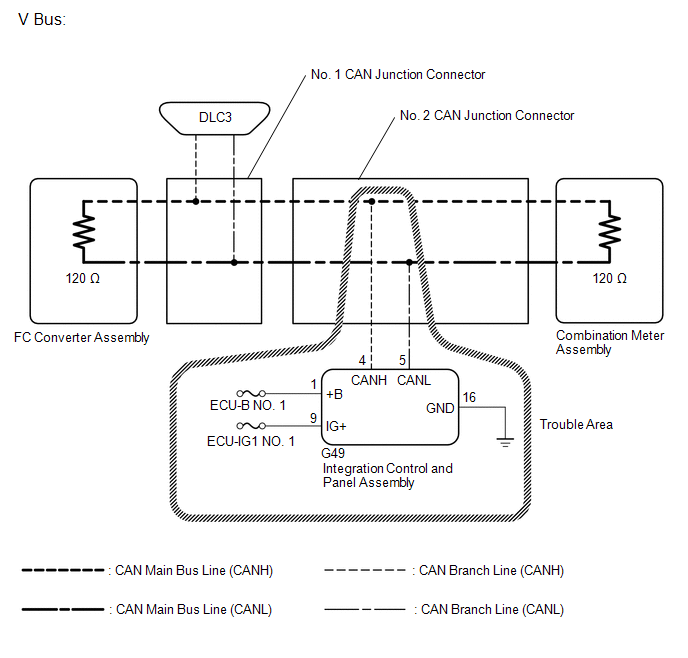

Integration Control and Panel Assembly Communication Stop Mode [06/2015 - 11/2018]: Wiring Diagram

GTY601495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
