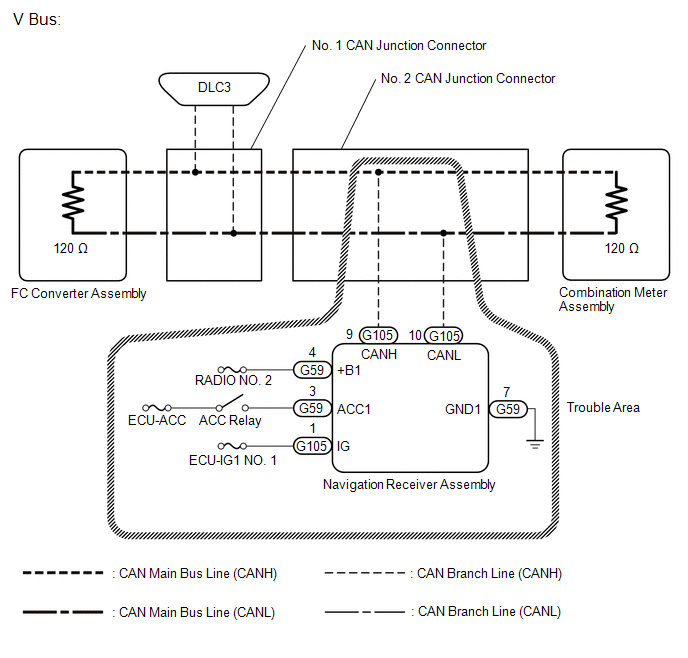

Navigation Receiver Assembly Communication Stop Mode [06/2015 - 01/2018]: Wiring Diagram

GTY603444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
