Radio Receiver Assembly Communication Stop Mode [01/2018 - 11/2018]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the radio and display receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

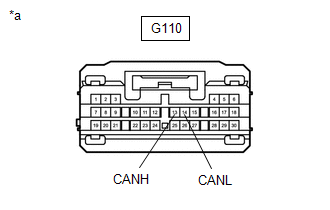

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G110-13 (CANH) - G110-14 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

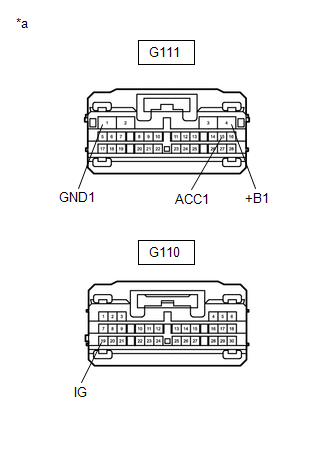

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G111-1 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) auxiliary battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G110-19 (IG) - Body ground	Power switch ON (IG)	11 to 14 V
   G111-15 (ACC1) - Body ground	Power switch ON (ACC)	11 to 14 V
   G111-4 (+B1) - Body ground	Power switch off	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to  REMOVAL [01/2018 - 11/2018]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
