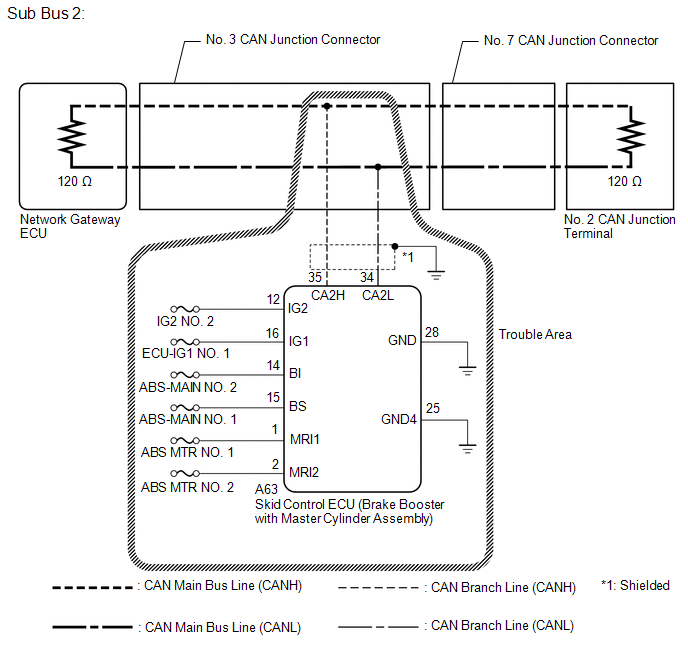

DTC U0129: Lost Communication with Brake System Control Module [06/2015 - 11/2018]: Wiring Diagram

GTY598740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
