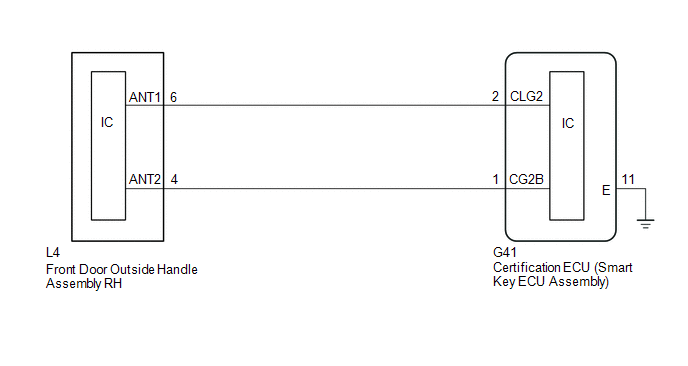

Front Passenger Side Door Entry Lock Function does not Operate [06/2015 - ]: Wiring Diagram

GTY601691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
