Room Oscillator does not Recognize Key [06/2015 - ]: Procedure

1. Using another registered electrical key transmitter sub-assembly, check that the hybrid control system starts.

   Result

   Result	Proceed to
   Hybrid control system can be started	A
   Hybrid control system cannot be started	B

Result:

A

END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY WAS DEFECTIVE)

Result:

B

See step  2

1. Check that the entry lock and unlock functions operate on each door.

   Refer to OPERATION CHECK [06/2015 - ]

   HINT:

   If the electrical key and TPMS receiver assembly is defective, code verification does not begin in the cabin and the entry lock and unlock functions do not operate.

   Result

   Result	Proceed to
   All door entry functions operate normally (w/ Wireless Charging System)	A
   All door entry functions does not operate normally	B

Result:

B

GO TO OTHER PROBLEM. Refer to  PROBLEM SYMPTOMS TABLE [06/2015 - ]

Result:

A

See step  3

1. Wireless charging system off.

   Refer to OPERATION CHECK [06/2015 - ]

2. Check that interior certification is performed.

   Refer to OPERATION CHECK [06/2015 - ]

   Result

   Result	Proceed to
   Operate normally	A
   Not operate normally	B

Result:

B

GO TO WIRELESS CHARGING SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2015 - ]

Result:

A

See step  4

1. Remove the transmitter battery of the electrical key transmitter sub-assembly.

   Refer to REMOVAL [06/2015 - ]

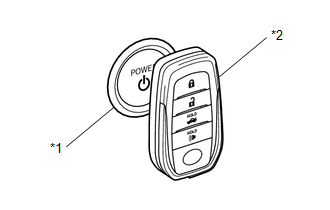

2. With the brake pedal depressed, face the logo side of the electrical key transmitter sub-assembly towards the power switch, hold the transmitter near the power switch and then press the power switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Power Switch
   *2	Electrical Key Transmitter Sub-assembly

3. When operating the power switch, check whether the hybrid control system starts.

   HINT:

   • When the electrical key transmitter sub-assembly cannot be verified even though it is inside the detection area, the hybrid control system start check can be performed by removing the transmitter battery from the electrical key transmitter sub-assembly and holding the electrical key transmitter sub-assembly near the power switch.
   • If the hybrid control system cannot be started when performing this inspection, the certification ECU (smart key ECU assembly) or transmission control ECU assembly may be malfunctioning.

   Result

   Result	Proceed to
   Hybrid control system can be started	A
   Hybrid control system cannot be started	B

Result:

B

GO TO SMART KEY SYSTEM (FOR ENTRY FUNCTION). Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2015 - ]

Result:

A

See step  5

1. Install the transmitter battery to the electrical key transmitter sub-assembly.

   Refer to REMOVAL [06/2015 - ]

2. Bring the electrical key transmitter sub-assembly near the No. 1 indoor electrical key antenna assembly (front floor) and perform a smart key system check.

   Refer to OPERATION CHECK [06/2015 - ]

   NOTE:

   Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (front floor).

   Refer to PARTS LOCATION [06/2015 - ]

3. Bring the electrical key transmitter sub-assembly near the No. 2 indoor electrical key antenna assembly (rear floor) and perform a smart key system check.

   Refer to OPERATION CHECK [06/2015 - ]

   HINT:

   Check that the customize status of the "Ignition Available Area" has been "All".

   Refer to CUSTOMIZE PARAMETERS [06/2015 - ]

   NOTE:

   Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the No. 2 indoor electrical key antenna assembly (rear floor).

   Refer to PARTS LOCATION [06/2015 - ]

   HINT:

   • As the effect of wave interference decreases by moving the electrical key transmitter sub-assembly close to each indoor electrical key antenna assembly, it may be possible to check whether wave interference is the cause of the problem.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   The hybrid control system starts when the electrical key transmitter sub-assembly is held near each indoor electrical key antenna assembly and the power switch is pressed.

   Result

   Proceed to
   OK
   NG

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  6

1. Check for DTCs.

   Body Electrical > Smart Key > Trouble Codes

   OK

   DTCs are not output.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSIS SYSTEM [06/2015 - ]

Result:

OK

See step  7

1. Check the following antennas in key diagnostic mode.

   Body Electrical > Smart Key > Utility

   Tester Display
   Communication Check (Key Diag Mode)

2. Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
   1. Check the No. 1 indoor electrical key antenna assembly (front floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

      HINT:

      • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
      • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
   2. Check the No. 2 indoor electrical key antenna assembly (rear floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

      HINT:

      • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
      • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.
      • It is possible to check which indoor electrical key antenna assembly (front floor, rear floor or inside luggage) is operating by the sounding of the buzzer.
      • When the wireless buzzer sounds for all indoor electrical key antenna assemblies, they can be judged as operating properly and a malfunction in the certification ECU (smart key ECU assembly), which performs verification, is suspected.
      • When the wireless buzzer does not sound for all indoor electrical key antenna assemblies, it can be judged that the certification ECU (smart key ECU assembly), which controls the indoor electrical key antenna assemblies, is malfunctioning.

   Result

   Result	Proceed to
   The wireless buzzer sounds/does not sound for all indoor electrical key antenna assemblies	A
   The wireless buzzer does not sound for only the No. 1 indoor electrical key antenna assembly (front floor)	B
   The wireless buzzer does not sound for only the No. 2 indoor electrical key antenna assembly (rear floor)	C

Result:

A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

Result:

C

See step  12

Result:

B

See step  8

1. Disconnect the G41 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G35 No. 1 indoor electrical key antenna assembly (front floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G41-21 (CLG5) - G35-1 (ANTE5)	Always	Below 1 Ω
   G41-20 (CG5B) - G35-3 (CLGB)	Always	Below 1 Ω
   G41-21 (CLG5) or G35-1 (ANTE5) - Body ground	Always	10 kΩ or higher
   G41-20 (CG5B) or G35-3 (CLGB) - Body ground	Always	10 kΩ or higher

4. Reconnect the G41 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  9

1. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 1 indoor Electrical Key Antenna Assembly (Front Floor))
   *b	Waveform 1
   *c	For 30 seconds after closing any door using the door outside handle
   *d	30 seconds or more have elapsed after closing any door using the door outside handle

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G35-1 (ANTE5) - G35-3 (CLGB)	Procedure: Power switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door using the door outside handle	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  10

1. Temporarily replace the No. 1 indoor electrical key antenna assembly (front floor) with a new one.

   Refer to REMOVAL [06/2015 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  11

1. Check the following antenna in key diagnostic mode.

   Body Electrical > Smart Key > Utility

   Tester Display
   Communication Check (Key Diag Mode)

2. Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
   1. Check the No. 1 indoor electrical key antenna assembly (front floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

      HINT:

      • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
      • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

      OK

      Wireless buzzer sounds.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) WAS DEFECTIVE)

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

1. Disconnect the G39 certification ECU (smart key ECU assembly) connector.
2. Disconnect the P16 No. 2 indoor electrical key antenna assembly (rear floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G39-15 (CLG6) - P16-1 (ANTE6)	Always	Below 1 Ω
   G39-14 (CG6B) - P16-3 (CLGB)	Always	Below 1 Ω
   G39-15 (CLG6) or P16-1 (ANTE6) - Body ground	Always	10 kΩ or higher
   G39-14 (CG6B) or P16-3 (CLGB) - Body ground	Always	10 kΩ or higher

4. Reconnect the G39 certification ECU (smart key ECU assembly) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  13

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   P16-1 (ANTE6) - P16-3 (CLGB)	Procedure: Power switch off Electrical key transmitter sub-assembly not inside vehicle Within 30 seconds of closing any door using the door outside handle	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

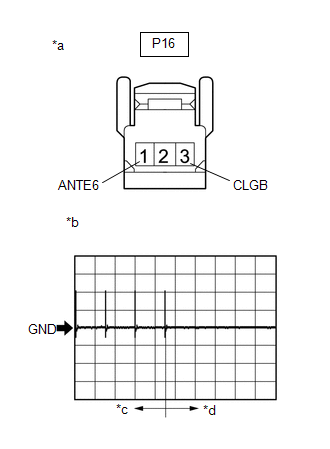

   *a	Front view of wire harness connector (to No. 2 Indoor Electrical Key Antenna Assembly (Rear Floor))
   *b	Waveform 1
   *c	For 30 seconds after closing any door using the door outside handle
   *d	30 seconds or more have elapsed after closing any door using the door outside handle

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

Result:

OK

See step  14

1. Temporarily replace the No. 2 indoor electrical key antenna assembly (rear floor) with a new one.

   Refer to REMOVAL [06/2015 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  15

1. Check the following antenna in key diagnostic mode.

   Body Electrical > Smart Key > Utility

   Tester Display
   Communication Check (Key Diag Mode)

2. Select either channel 1 or channel 2 and inspect the diagnostic mode for each channel.
   1. Check the No. 2 indoor electrical key antenna assembly (rear floor):

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Inspection Point

      When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

      HINT:

      • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
      • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

      OK

      Wireless buzzer sounds.

   Result

   Proceed to
   OK
   NG

Result:

OK

END (NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) WAS DEFECTIVE)

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]
