Power Seat Power Easy Access System Function does not Operate [06/2015 - ]: Procedure

  1. CHECK FRONT POWER SEAT OPERATION
    1. Check that each function of the power seat operates normally by using the front power seat switch LH.

      Refer to OPERATION CHECK [06/2015 - ]

      Result

      Result Proceed to
      Power seat functions operate normally A
      All power seat functions do not operate B
      One or more power seat motors do not operate C

    Result:

    B

    GO TO OTHER FLOW CHART (Front Power Seat does not Operate with Front Power Seat Switch). Refer to  Front Power Seat does not Operate with Front Power Seat Switch [06/2015 - ]

    Result:

    C

    GO TO OTHER FLOW CHART (One or more Power Seat Motors do not Operate). Refer to  One or more Power Seat Motors do not Operate [06/2015 - ]

    Result:

    A

    See step  2

  2. READ VALUE USING TECHSTREAM (DRIVER SEAT BUCKLE SW)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Driver Seat / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Driver Seat > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Driver Seat Buckle SW Driver seat belt buckle switch ON or OFF ON: Driver seat belt fastened
      OFF: Driver seat belt unfastened      		 -

      Body Electrical > Driver Seat > Data List

      Tester Display
      Driver Seat Buckle SW

      OK

      On the Techstream screen, the item changes between ON and OFF according to the above.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - IG POWER SUPPLY)
    1. Disconnect the front seat outer belt assembly LH connector.

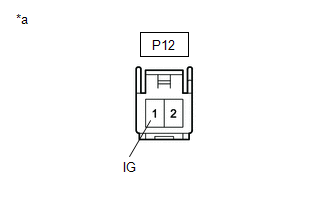

      GTY546959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Front Seat Outer Belt Assembly LH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      P12-1 (IG) - Body ground Power switch on (IG) 11 to 14 V
      P12-1 (IG) - Body ground Power switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - FRONT POWER SEAT SWITCH LH)
    1. Disconnect the P12 front seat outer belt assembly LH connector.
    2. Disconnect the a10 front power seat switch LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P12-2 (L) - a10-9 (DRDC) Always Below 1 Ω
      P12-2 (L) - Body ground Always 10 kΩ or higher
      a10-9 (DRDC) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK SEAT BELT TENSION REDUCER SYSTEM
    1. Check the seat belt tension reducer system.

      Refer to SYSTEM DESCRIPTION [06/2015 - ]

      OK

      Seat belt tension reducer system is normal.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    OK

    See step  6

  6. CHECK POWER SEAT EASY ACCESS SYSTEM
    1. Check the power seat easy access system.

      Refer to OPERATION CHECK [06/2015 - ]

      OK

      Power seat easy access system is normal.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (FRONT POWER SEAT SWITCH LH WAS DEFECTIVE)

    Result:

    NG

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

  7. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
    1. Remove the front seat inner belt assembly LH.

      Refer to REMOVAL [06/2015 - 11/2018] , or refer to REMOVAL [11/2018 - ]

    2. Inspect the front seat inner belt assembly LH.

      Refer to INSPECTION [06/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT INNER BELT ASSEMBLY LH. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - FRONT SEAT INNER BELT ASSEMBLY LH)
    1. Disconnect the a10 front power seat switch LH connector.
    2. Disconnect the a11 front seat inner belt assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      a10-10 (DBCL) - a11-1 Always Below 1 Ω
      a10-10 (DBCL) - Body ground Always 10 kΩ or higher
      a11-1 - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT POWER SEAT SWITCH LH. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR
