DTC P1D4F-450: Total Reactor Current/FC Current Correlation [06/2015 - ]: Procedure

  1. CHECK DTC OUTPUT (FCDC)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / FCDC / Trouble Codes.

      Powertrain > FCDC > Trouble Codes

    5. Check for DTCs.

      Result

      Result Proceed to
      "DTC P1D4F-450 only is output" or "DTCs except the ones in the table below are also output" A
      Any of the following DTCs are also output B
      Malfunction Content Relevant DTC
      Sensor and actuator circuit malfunction P1D31-450 U Phase Reactor Current Sensor Circuit (Offset)
      P1D32-450 U Phase Reactor Current Sensor Circuit Low
      P1D33-450 U Phase Reactor Current Sensor Circuit High
      P1D36-450 V Phase Reactor Current Sensor Circuit (Offset)
      P1D37-450 V Phase Reactor Current Sensor Circuit Low
      P1D38-450 V Phase Reactor Current Sensor Circuit High
      P1D3B-450 W Phase Reactor Current Sensor Circuit (Offset)
      P1D3C-450 W Phase Reactor Current Sensor Circuit Low
      P1D3D-450 W Phase Reactor Current Sensor Circuit High
      P1D41-450 X Phase Reactor Current Sensor Circuit (Offset)
      P1D42-450 X Phase Reactor Current Sensor Circuit Low
      P1D43-450 X Phase Reactor Current Sensor Circuit High

      HINT:

      DTC P1D4F-450 may be output as a result of the malfunction indicated by the DTCs above.

    6. Turn the power switch off.

    Result:

    B

    GO TO DTC CHART (FC BOOST CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2015 - ]

    Result:

    A

    See step  2

  2. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / FCDC / Trouble Codes.

      Powertrain > FCDC > Clear DTCs

    5. Clear the DTCs.

      Result

      Proceed to
      NEXT
    6. Turn the power switch off and wait for 3 minutes or more.

    Result:

    NEXT

    See step  3

  3. CHECK DTC OUTPUT (FCDC)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / FCDC / Trouble Codes.

      Powertrain > FCDC > Trouble Codes

    5. Check for DTCs.

      Result

      Result Proceed to
      DTCs are not output A
      DTC P1D4F-450 only is output B
      Any of the following DTCs are output C
      Malfunction Content Relevant DTC
      Sensor and actuator circuit malfunction P1D31-450 U Phase Reactor Current Sensor Circuit (Offset)
      P1D32-450 U Phase Reactor Current Sensor Circuit Low
      P1D33-450 U Phase Reactor Current Sensor Circuit High
      P1D36-450 V Phase Reactor Current Sensor Circuit (Offset)
      P1D37-450 V Phase Reactor Current Sensor Circuit Low
      P1D38-450 V Phase Reactor Current Sensor Circuit High
      P1D3B-450 W Phase Reactor Current Sensor Circuit (Offset)
      P1D3C-450 W Phase Reactor Current Sensor Circuit Low
      P1D3D-450 W Phase Reactor Current Sensor Circuit High
      P1D41-450 X Phase Reactor Current Sensor Circuit (Offset)
      P1D42-450 X Phase Reactor Current Sensor Circuit Low
      P1D43-450 X Phase Reactor Current Sensor Circuit High

      HINT:

      DTC P1D4F-450 may be output as a result of the malfunction indicated by the DTCs above.

    6. Turn the power switch off.

    Result:

    B

    REPLACE FC CONVERTER ASSEMBLY. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    C

    GO TO DTC CHART (FC BOOST CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2015 - ]

    Result:

    A

    See step  4

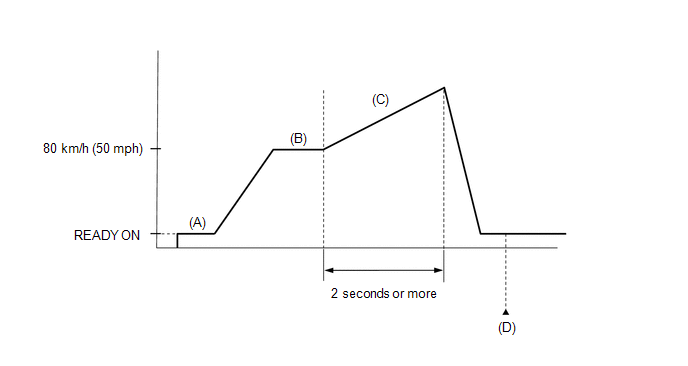

  4. SIMULATION TEST
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (READY). (A)
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / FCDC / Data List / FC Output Power

      Powertrain > FCDC > Data List

      Tester Display
      FC Output Power
    5. Accelerate the vehicle to approximately 80 km/h (50 mph). (B)
    6. While checking the Data List item "FC Output Power", depress the accelerator pedal and ensure that all conditions stated below are met. (C)
      WARNING:

      When performing the confirmation driving pattern, obey all speed limits and traffic laws.

      Driving condition

      Data List item "FC Output Power" value remains 65 kW or more for at least 2 seconds.

      GTY565855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Enter the following menus: Powertrain / FCDC / Trouble Codes. (D)

      Powertrain > FCDC > Trouble Codes

    8. Check for DTCs.

      Result

      Result Proceed to
      DTCs are not output A
      DTC P1D4F-450 only is output B
      Any of the following DTCs are output C
      Malfunction Content Relevant DTC
      Sensor and actuator circuit malfunction P1D31-450 U Phase Reactor Current Sensor Circuit (Offset)
      P1D32-450 U Phase Reactor Current Sensor Circuit Low
      P1D33-450 U Phase Reactor Current Sensor Circuit High
      P1D36-450 V Phase Reactor Current Sensor Circuit (Offset)
      P1D37-450 V Phase Reactor Current Sensor Circuit Low
      P1D38-450 V Phase Reactor Current Sensor Circuit High
      P1D3B-450 W Phase Reactor Current Sensor Circuit (Offset)
      P1D3C-450 W Phase Reactor Current Sensor Circuit Low
      P1D3D-450 W Phase Reactor Current Sensor Circuit High
      P1D41-450 X Phase Reactor Current Sensor Circuit (Offset)
      P1D42-450 X Phase Reactor Current Sensor Circuit Low
      P1D43-450 X Phase Reactor Current Sensor Circuit High

      HINT:

      DTC P1D4F-450 may be output as a result of the malfunction indicated by the DTCs above.

    9. Turn the power switch off.

    Result:

    A

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [06/2015 - ]

    Result:

    B

    REPLACE FC CONVERTER ASSEMBLY. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

    Result:

    C

    GO TO DTC CHART (FC BOOST CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [06/2015 - ]
