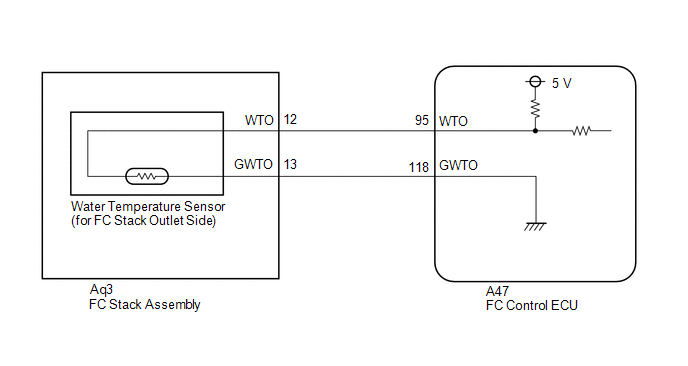

DTC P1D2C-450: FC Stack Coolant Temperature Sensor (FC Stack Outlet) Circuit Low; DTC P1D2D-450: FC Stack Coolant Temperature Sensor (FC Stack Outlet) Circuit High [06/2015 - ]: Wiring Diagram

GTY591832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
