DTC P085D-582: Gear Shift Control Module "A" Performance; DTC P085D-599: Gear Shift Control Module "A" Performance; DTC P0861-597: Gear Shift Control Module "A" Communication Circuit Low; DTC P0862-598: Gear Shift Control Module "A" Communication Circuit High [06/2015 - 11/2018]: Description

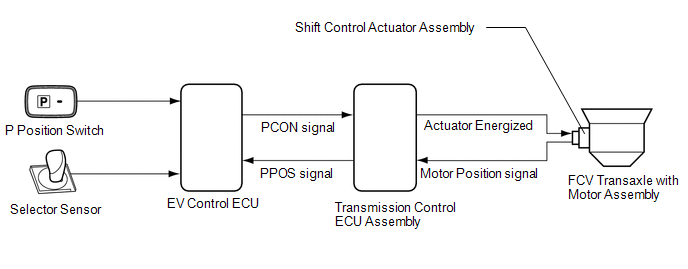

When a signal is input from the P position switch (integration control and panel assembly) or shift lever (transmission instrument panel shift assembly), the EV control ECU transmits a P position control (PCON) signal to the transmission control ECU assembly. Based on this signal, the transmission control ECU assembly actuates the shift control actuator assembly in order to mechanically lock or unlock the counter drive gear in the FCV transaxle with motor assembly.
P position state (engaged or released) of the shift control actuator assembly is sent to the EV control ECU as a P position (PPOS) signal.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate |
|---|---|---|---|---|
| P085D-582 | Gear Shift Control Module "A" Performance | P position (PPOS) signal is logically inconsistent |
|
Master Warning Light: Comes on |
| P085D-599 | Gear Shift Control Module "A" Performance | P position (PPOS) signal malfunction (output pulse is abnormal) |
|
Master Warning Light: Comes on |
| P0861-597 | Gear Shift Control Module "A" Communication Circuit Low | GND short in P position (PPOS) signal circuit |
|
Master Warning Light: Comes on |
| P0862-598 | Gear Shift Control Module "A" Communication Circuit High | +B short in P position (PPOS) signal circuit |
|
Master Warning Light: Comes on |
RELATED DATA LIST
| DTC No. | Data List |
|---|---|
| P085D-582 |
|
| P085D-599 | |
| P0861-597 | |
| P0862-598 |
