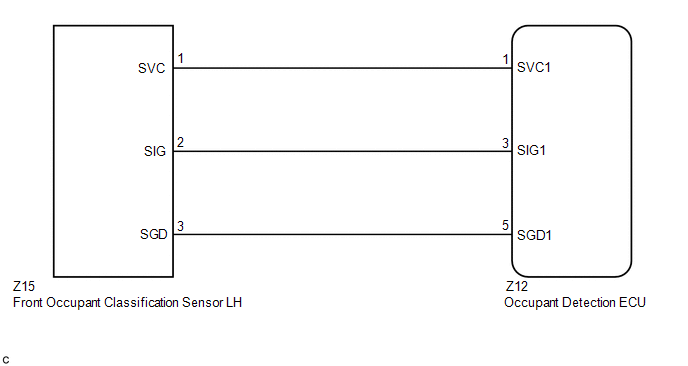

DTC B1785: Front Occupant Classification Sensor LH Collision Detection [06/2015 - ]: Wiring Diagram

GTY576885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
