DTC B1794: Open in Occupant Classification ECU Battery Positive Line [06/2015 - ]: Procedure
- CHECK DTC
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [06/2015 - ]
Body Electrical > Occupant Detection > Clear DTCs
HINT:
- First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the airbag sensor assembly.
- Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [06/2015 - ]
Body Electrical > Occupant Detection > Trouble Codes
Result
Result Proceed to DTC B1794 is not output A DTC B1794 is output B HINT:
DTCs other than DTC B1794 may be output at this time, but they are not related to this check.
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to DIAGNOSIS SYSTEM [06/2015 - ]
Result:
B
See step 2
- CHECK CONNECTION OF CONNECTOR
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Check that the connector is properly connected to occupant detection ECU.
Result
Result Proceed to Connector is properly connected A Connector is not properly connected B
Result:
B
CONNECT CONNECTOR
Result:
A
See step 3
- CHECK CONNECTOR
- Disconnect the connector from the occupant detection ECU.
- Check that the connector (on the occupant detection ECU side) is not damaged.
Result
Result Proceed to Connectors are not deformed or damaged A Connectors are deformed or damaged B
Result:
B
REPLACE HARNESS OR CONNECTOR
Result:
A
See step 4
- CHECK HARNESS AND CONNECTOR (OCCUPANT DETECTION ECU - BATTERY AND BODY GROUND)
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

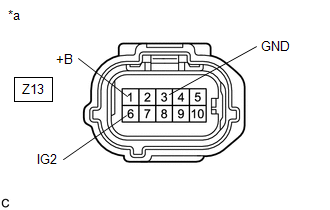

*a Front view of wire harness connector
(to Occupant Detection ECU) - Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition Z13-1 (+B) - Body ground Always 11 to 14 V Z13-6 (IG2) - Body ground Power switch on (IG) - Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Z13-3 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK DTC
- Connect the connector to the occupant detection ECU.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [06/2015 - ]
Body Electrical > Occupant Detection > Clear DTCs
HINT:
- First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the airbag sensor assembly.
- Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [06/2015 - ]
Body Electrical > Occupant Detection > Trouble Codes
Result
Result Proceed to DTC B1794 is not output A DTC B1794 is output B HINT:
DTCs other than DTC B1794 may be output at this time, but they are not related to this check.
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to DIAGNOSIS SYSTEM [06/2015 - ]
Result:
B
See step 6
- REPLACE OCCUPANT DETECTION ECU
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Replace the occupant detection ECU.
Refer to REMOVAL [06/2015 - 11/2018] , or refer to REMOVAL [11/2018 - ]
HINT:
Perform the inspection using parts from a normal vehicle when possible.
Result
Proceed to NEXT
Result:
NEXT
See step 7
- PERFORM ZERO POINT CALIBRATION
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG).
- Perform the zero point calibration.
Refer to INITIALIZATION [06/2015 - ]
Result
Proceed to NEXT
Result:
NEXT
See step 8
- PERFORM SENSITIVITY CHECK
- Perform the sensitivity check.
Refer to INITIALIZATION [06/2015 - ]
Standard
27 to 33 kg (59.5 to 72.8 lb)
Result
Proceed to NEXT
Result:
NEXT
END (OCCUPANT DETECTION ECU WAS DEFECTIVE)
- Perform the sensitivity check.
