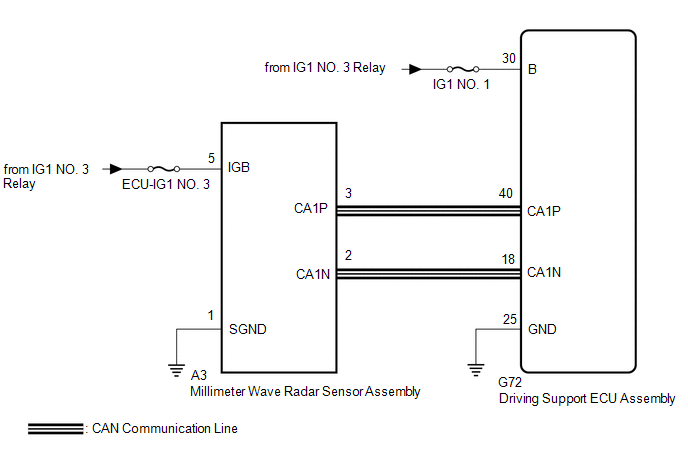

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1002: Lost Communication with Gateway Module; DTC U1104: Lost Communication with Driving Support ECU [06/2015 - 11/2018]: Wiring Diagram

GTY547574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
