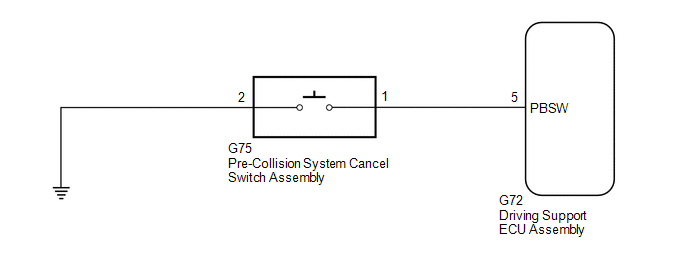

Pre-collision System Switch Circuit [06/2015 - 11/2018]: Wiring Diagram

GTY559144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
