Components [06/2015 - ]

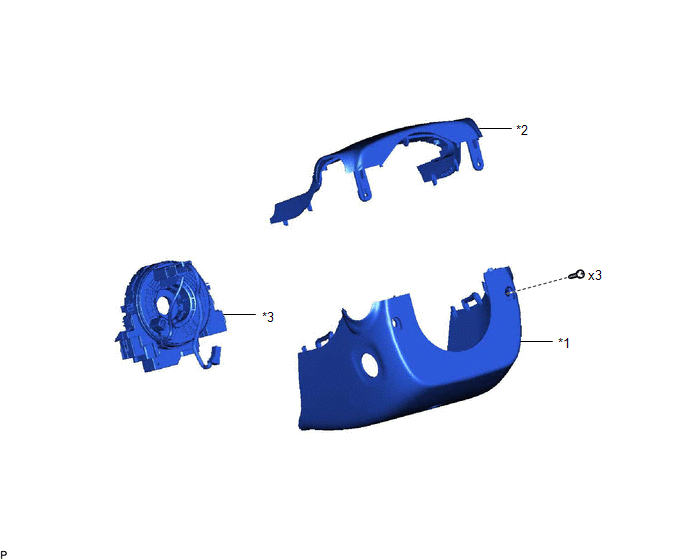

Fig 1: Steering Angle Sensor Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LOWER STEERING COLUMN COVER
*2
UPPER STEERING COLUMN COVER
*3
SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
-
-

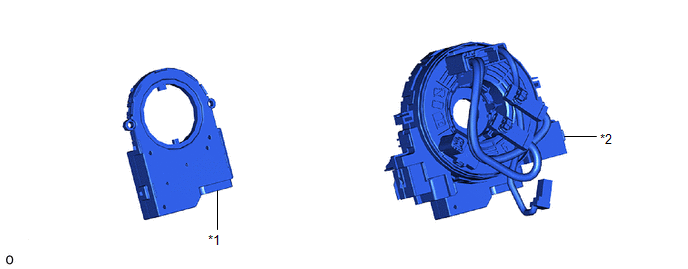

Fig 2: Steering Angle Sensor Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
