System Diagrams

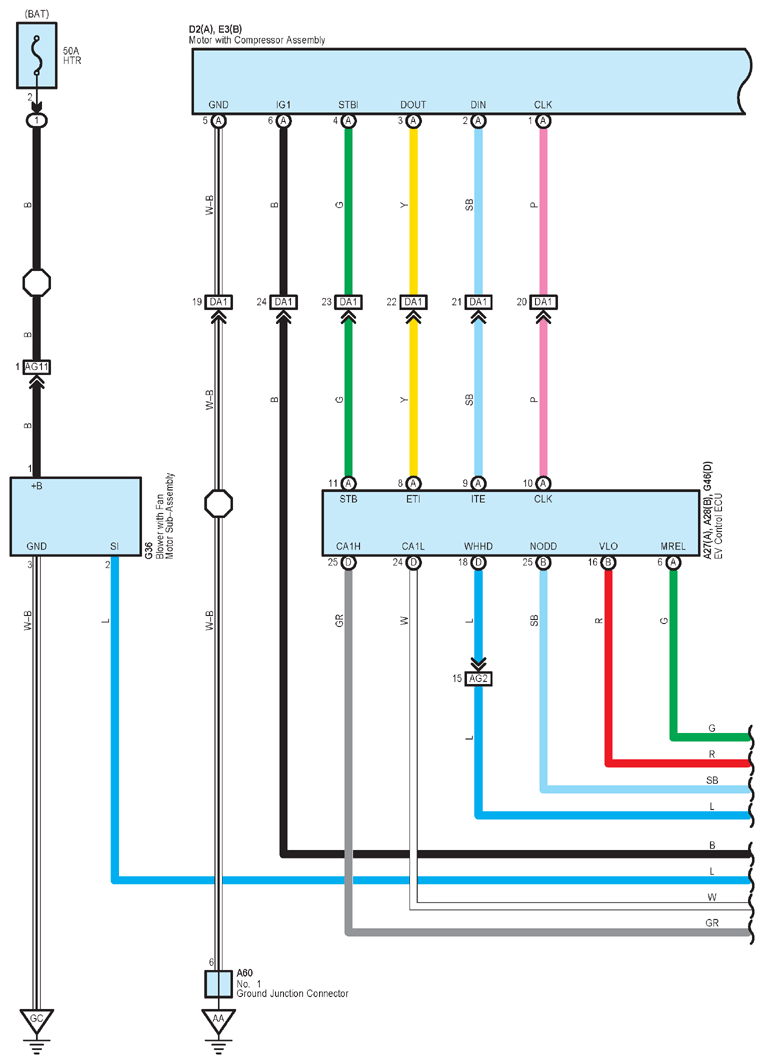

Fig 1: Air Conditioning (1 Of 16)

G12204022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

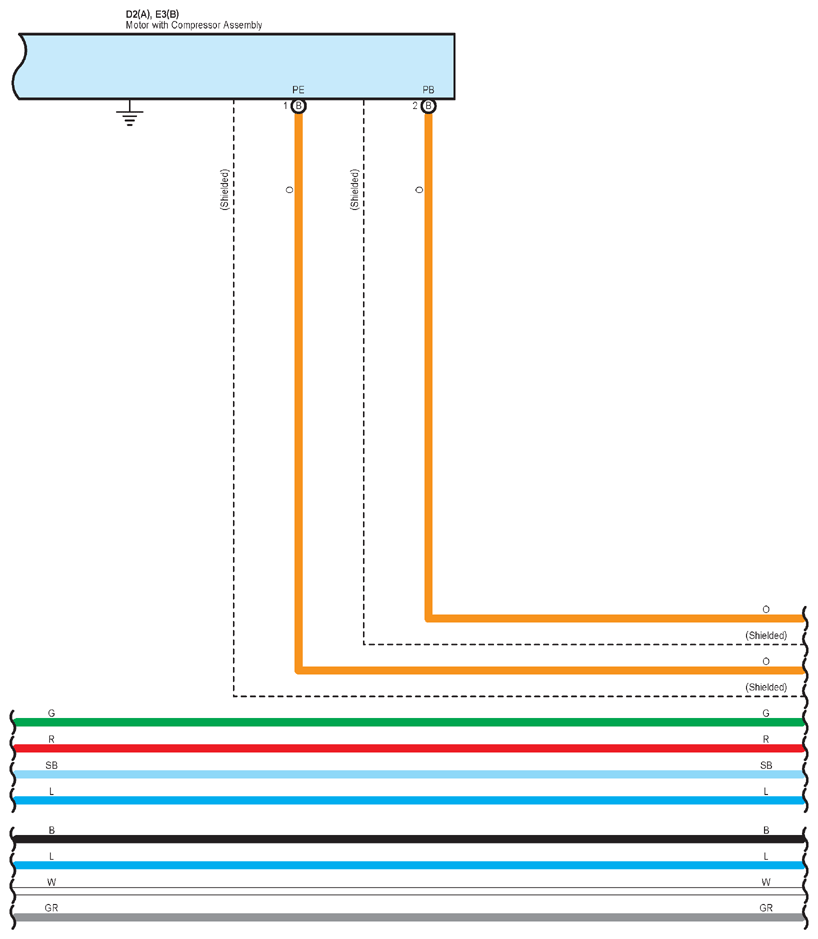

Fig 2: Air Conditioning (2 Of 16)

G12204023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

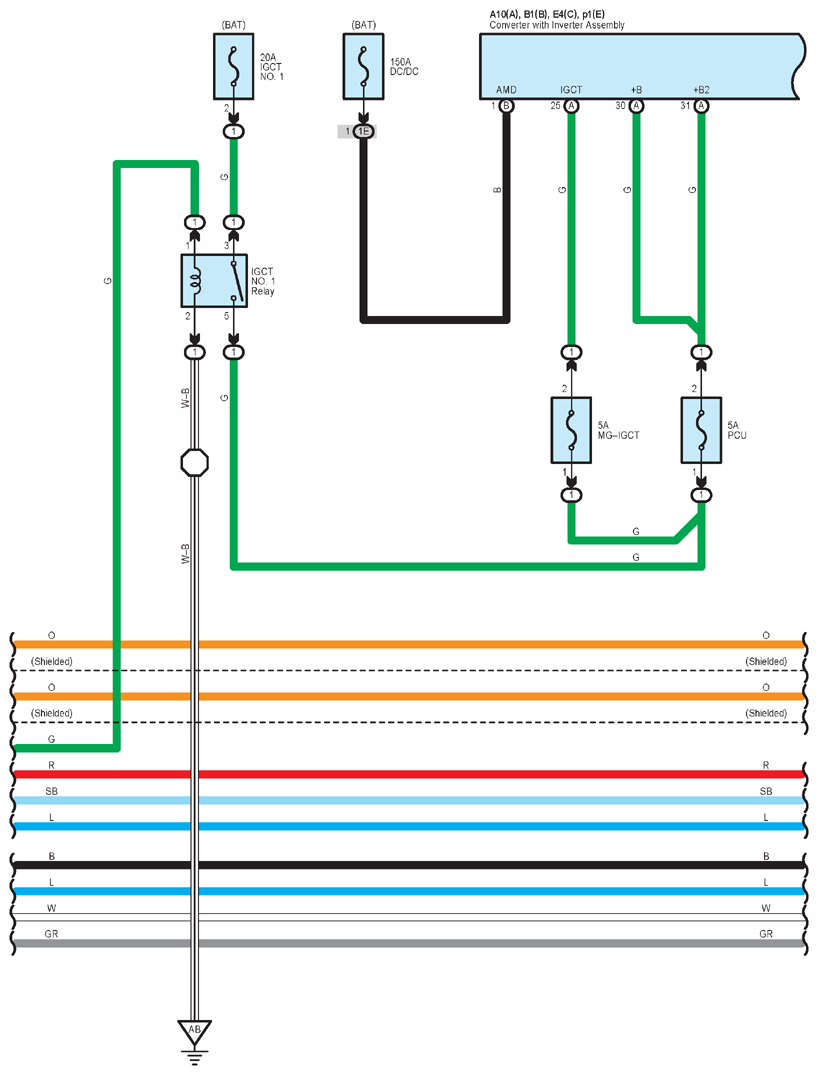

Fig 3: Air Conditioning (3 Of 16)

G12204024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

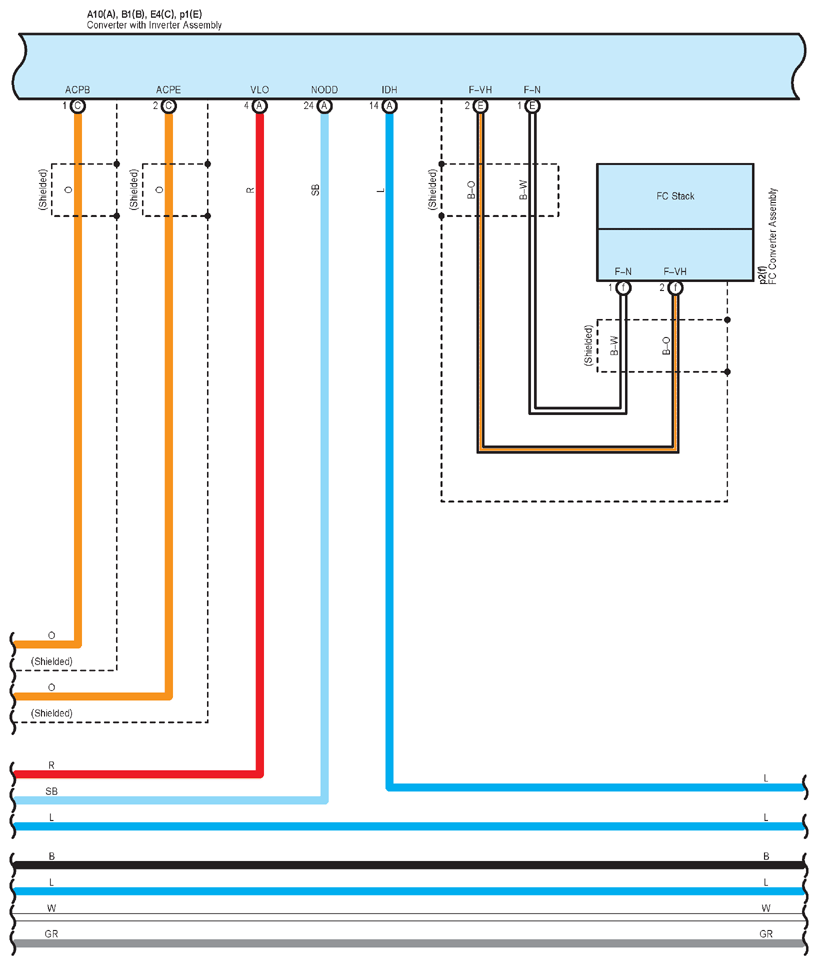

Fig 4: Air Conditioning (4 Of 16)

G12204025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

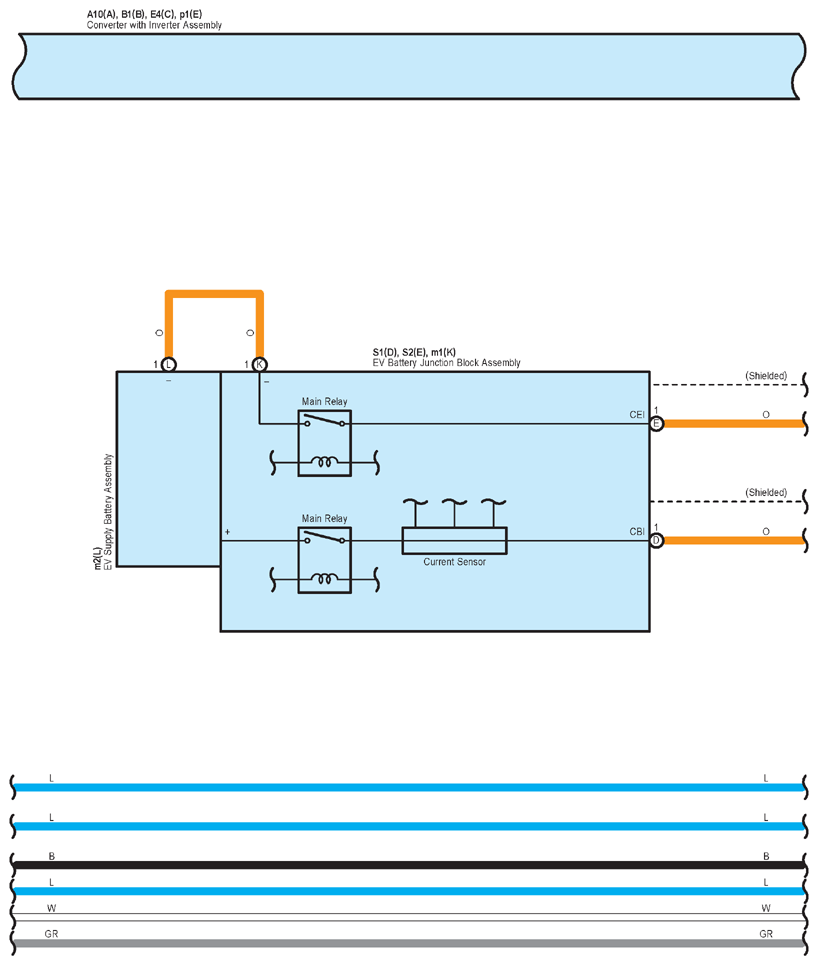

Fig 5: Air Conditioning (5 Of 16)

G12204026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

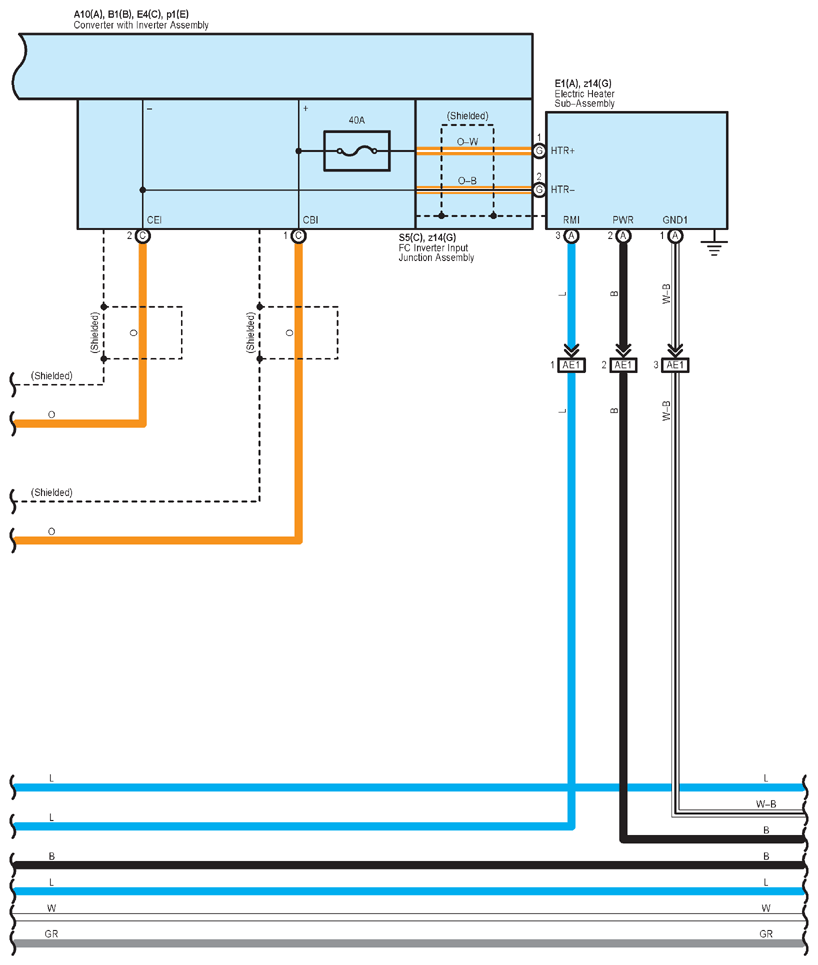

Fig 6: Air Conditioning (6 Of 16)

G12204027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

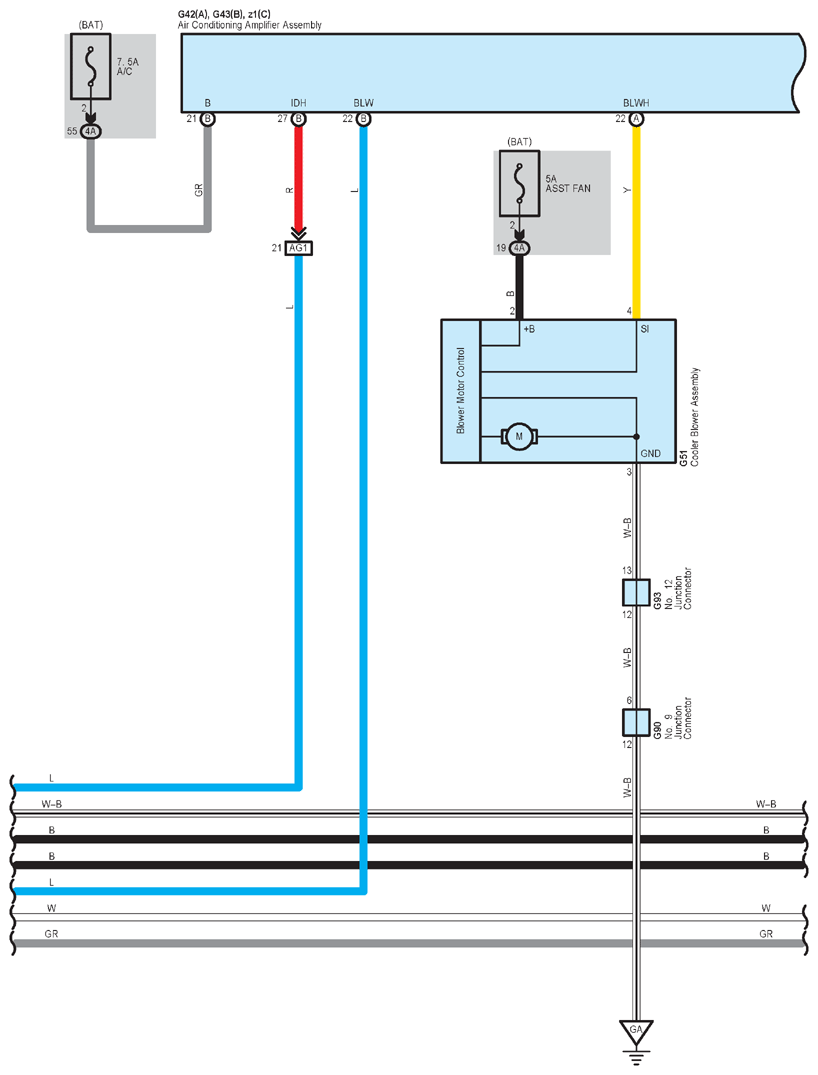

Fig 7: Air Conditioning (7 Of 16)

G12204028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

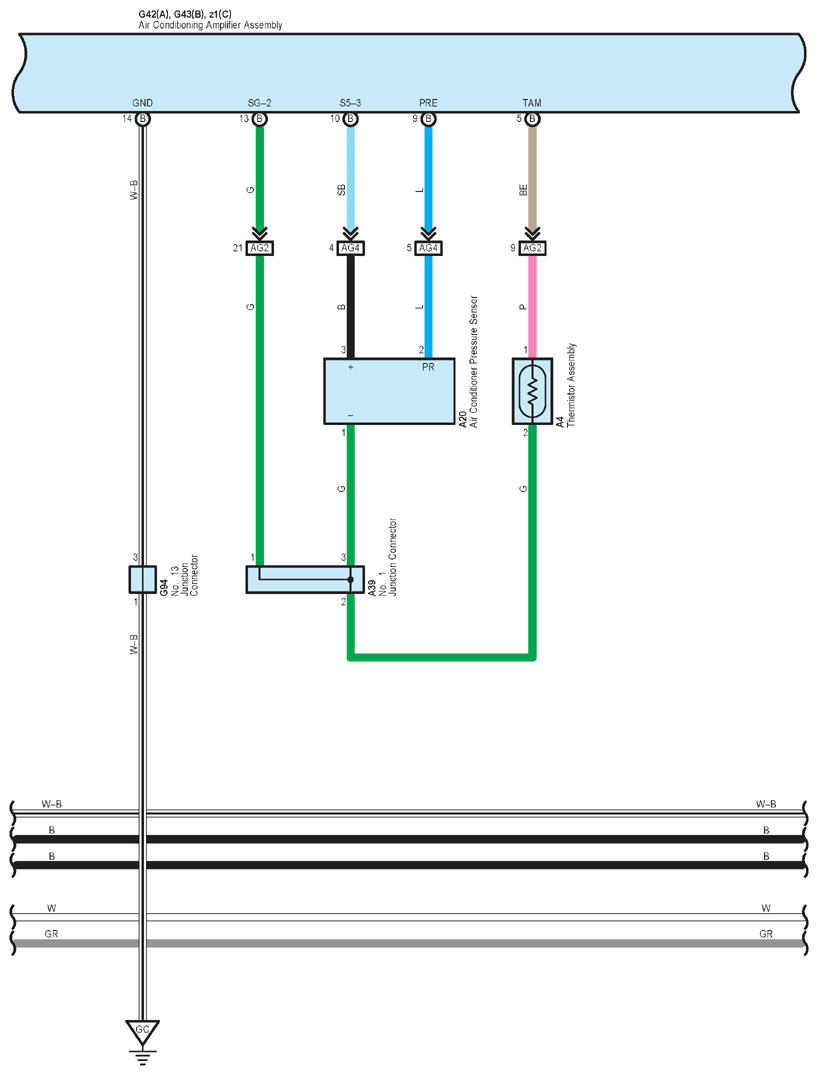

Fig 8: Air Conditioning (8 Of 16)

G12204029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

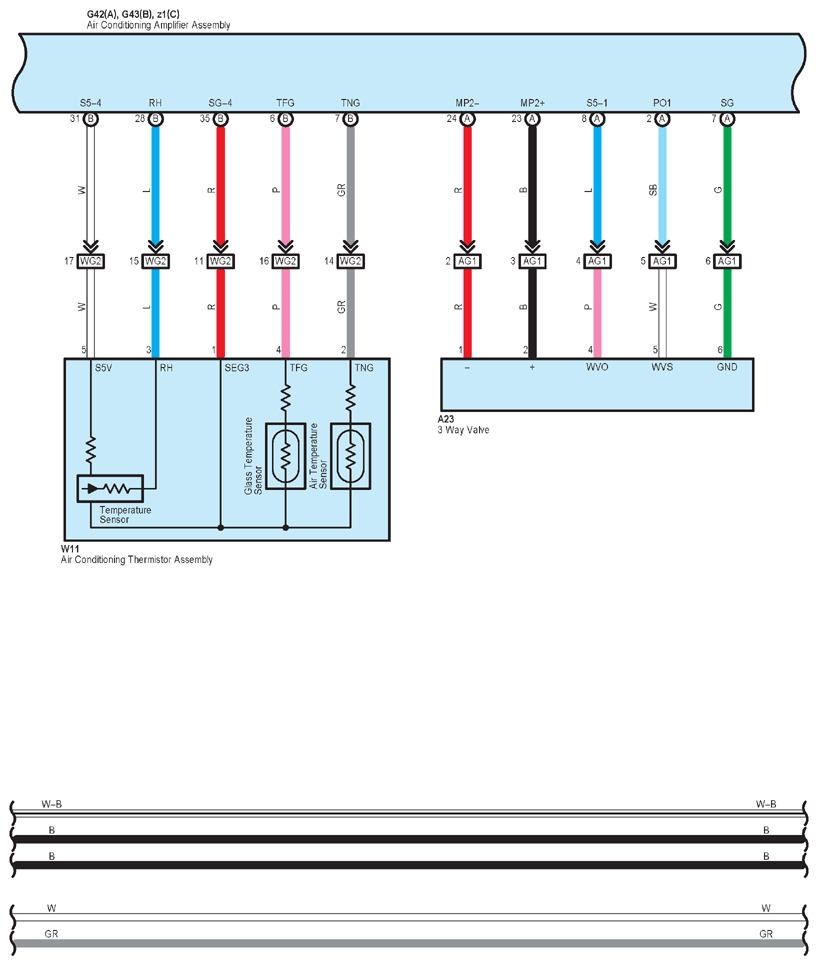

Fig 9: Air Conditioning (9 Of 16)

G12204030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

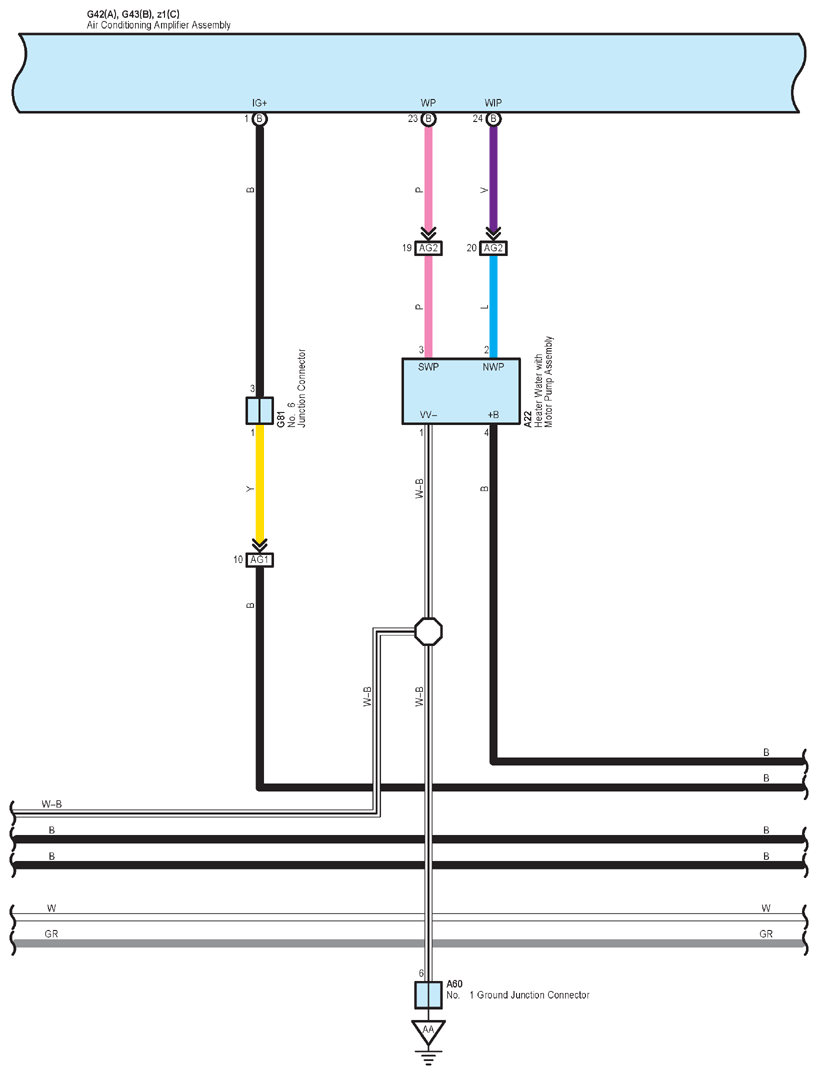

Fig 10: Air Conditioning (10 Of 16)

G12204031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

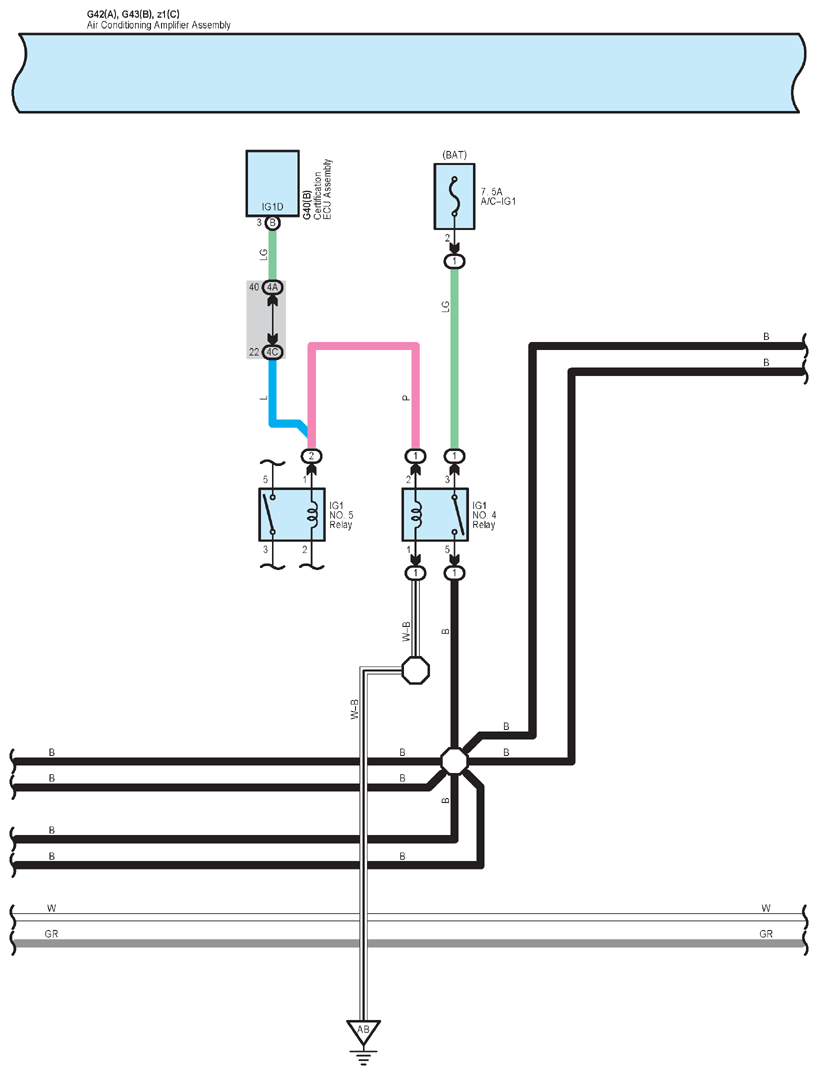

Fig 11: Air Conditioning (11 Of 16)

G12204032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

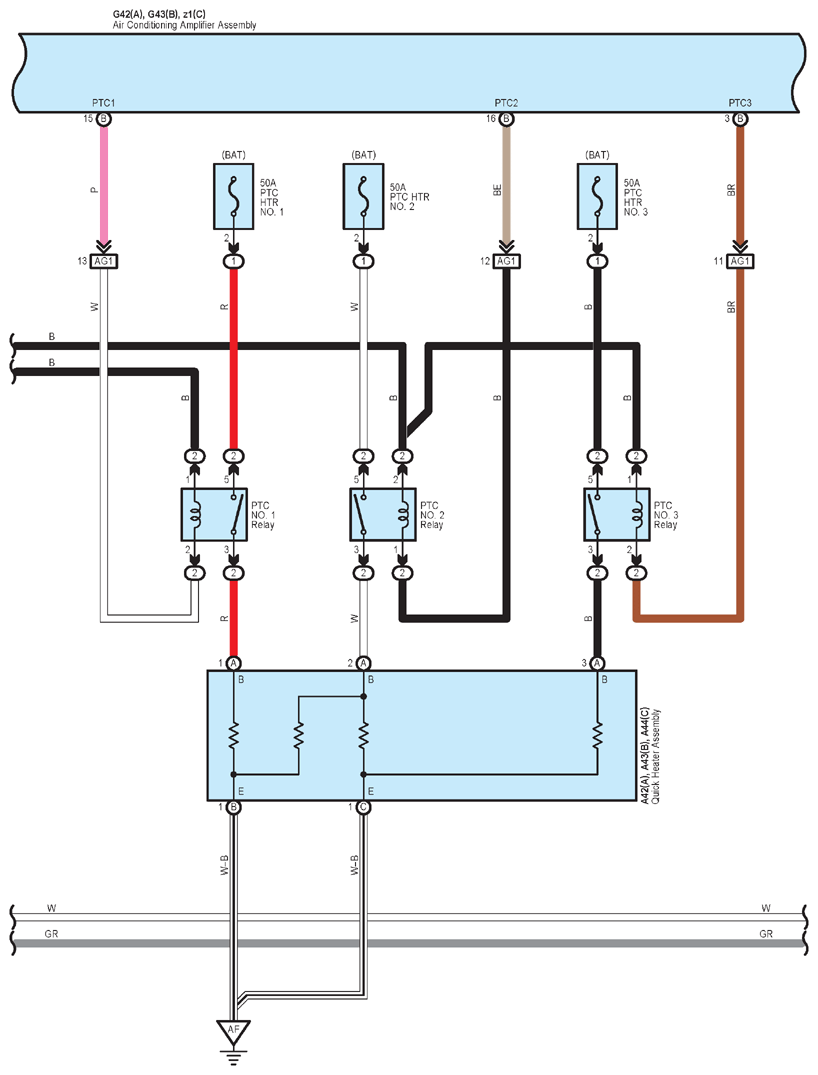

Fig 12: Air Conditioning (12 Of 16)

G12204033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

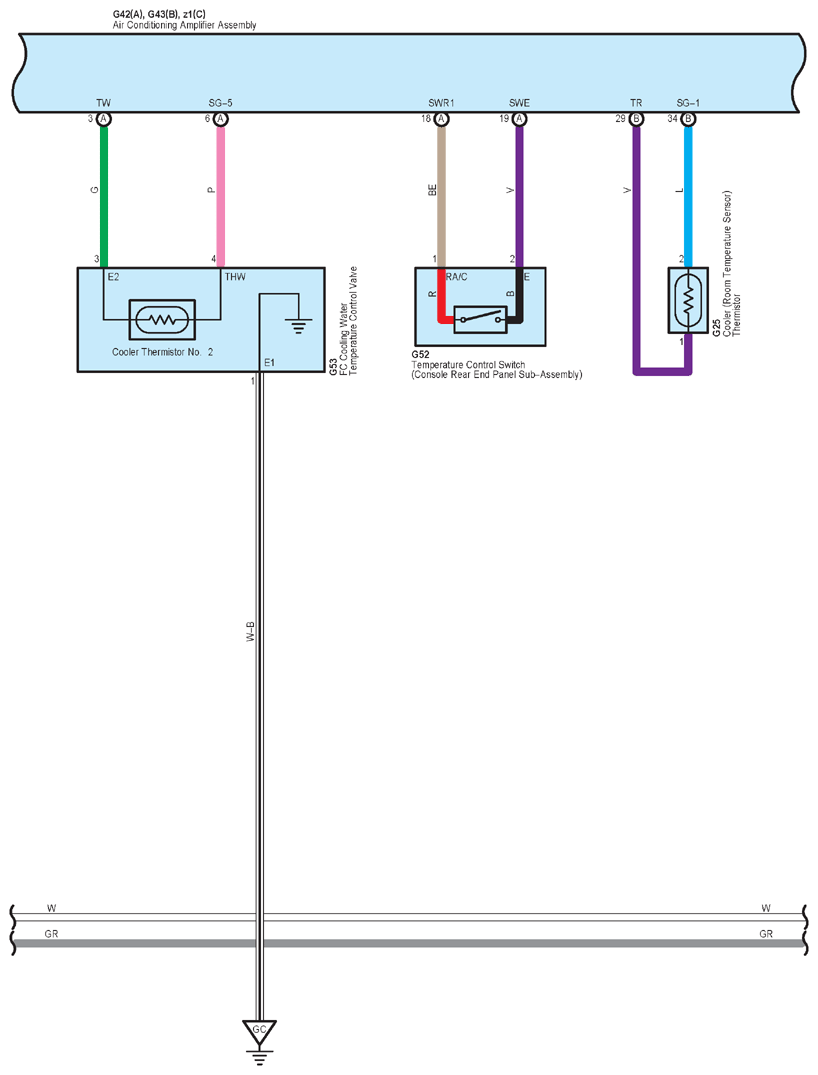

Fig 13: Air Conditioning (13 Of 16)

G12204034

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

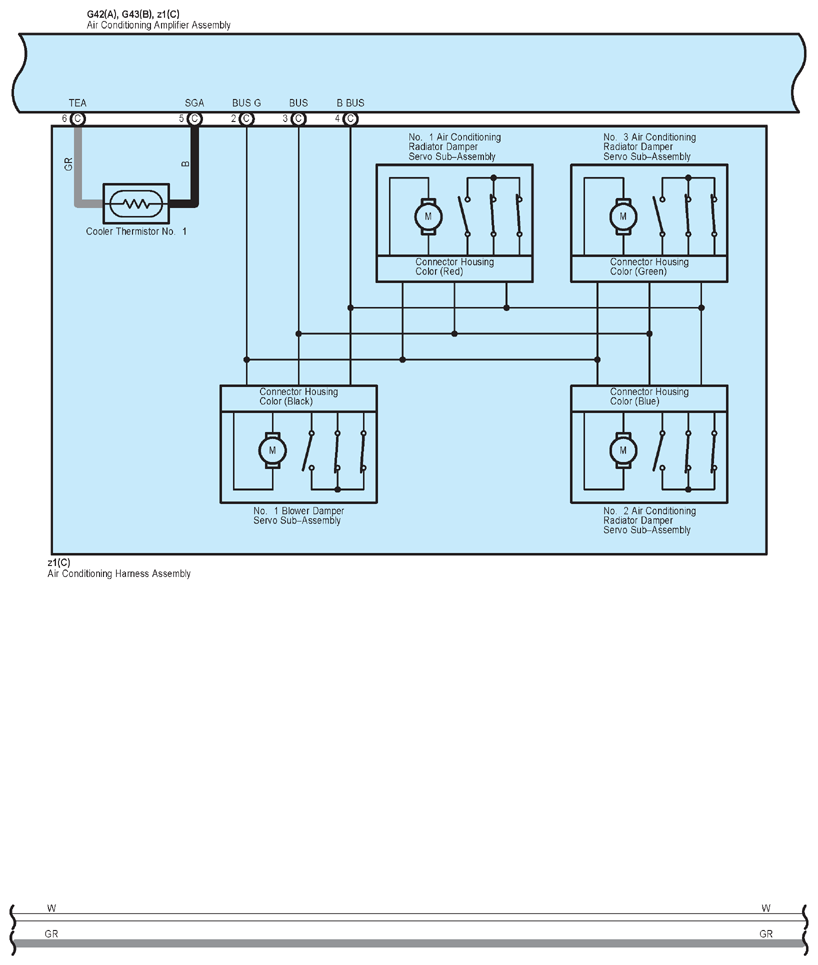

Fig 14: Air Conditioning (14 Of 16)

G12204035

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

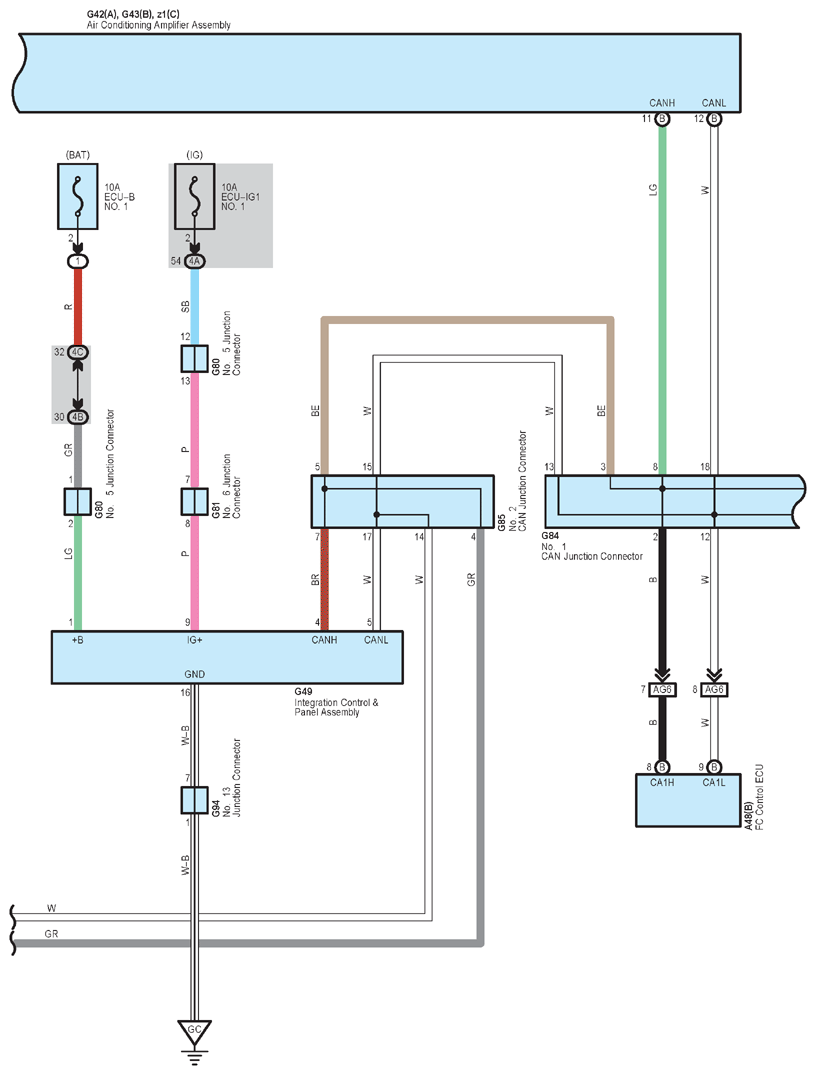

Fig 15: Air Conditioning (15 Of 16)

G12204036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

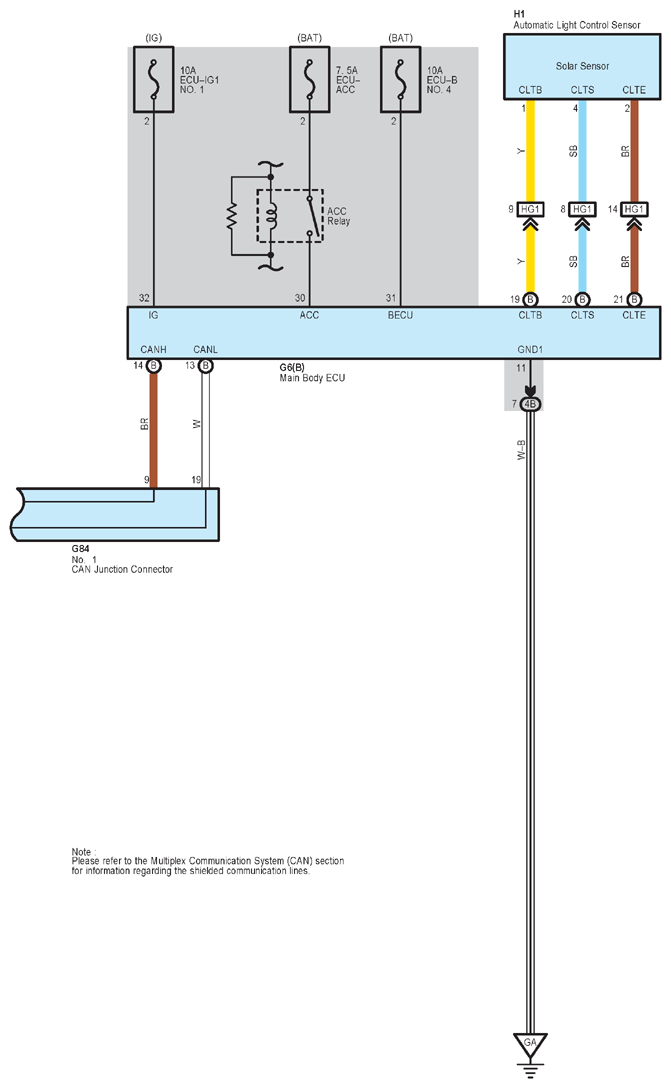

Fig 16: Air Conditioning (16 Of 16)

G12204037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
