System Diagrams

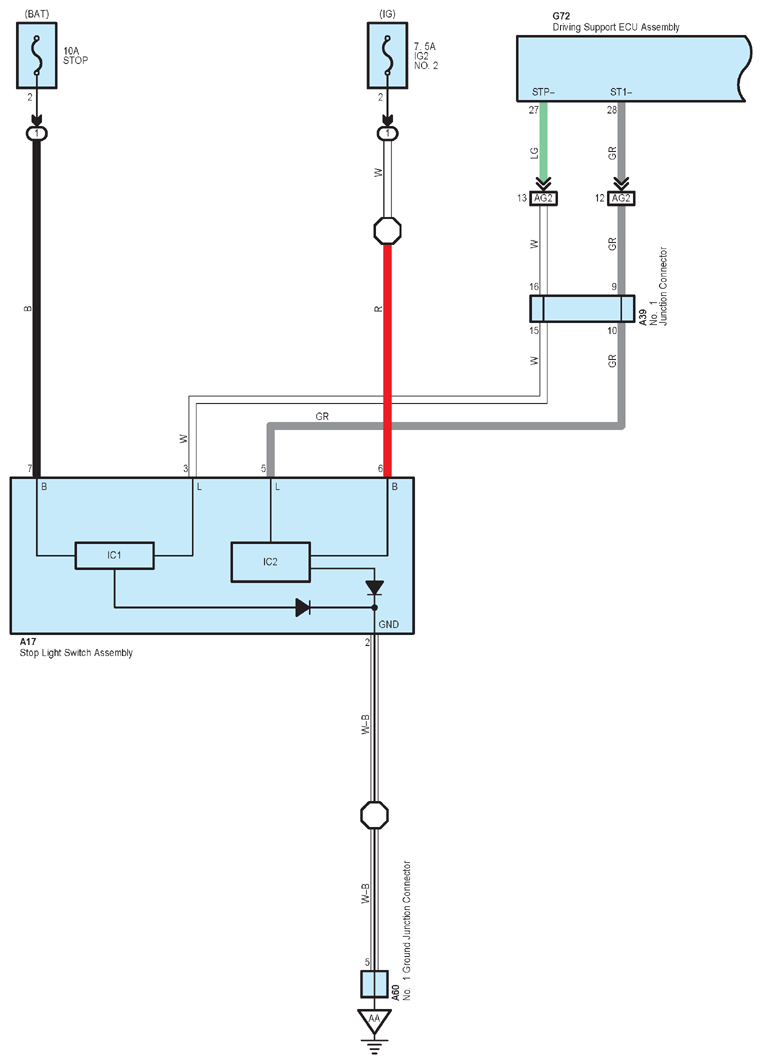

Fig 1: Pre-Collision System (1 Of 5)
G12204365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

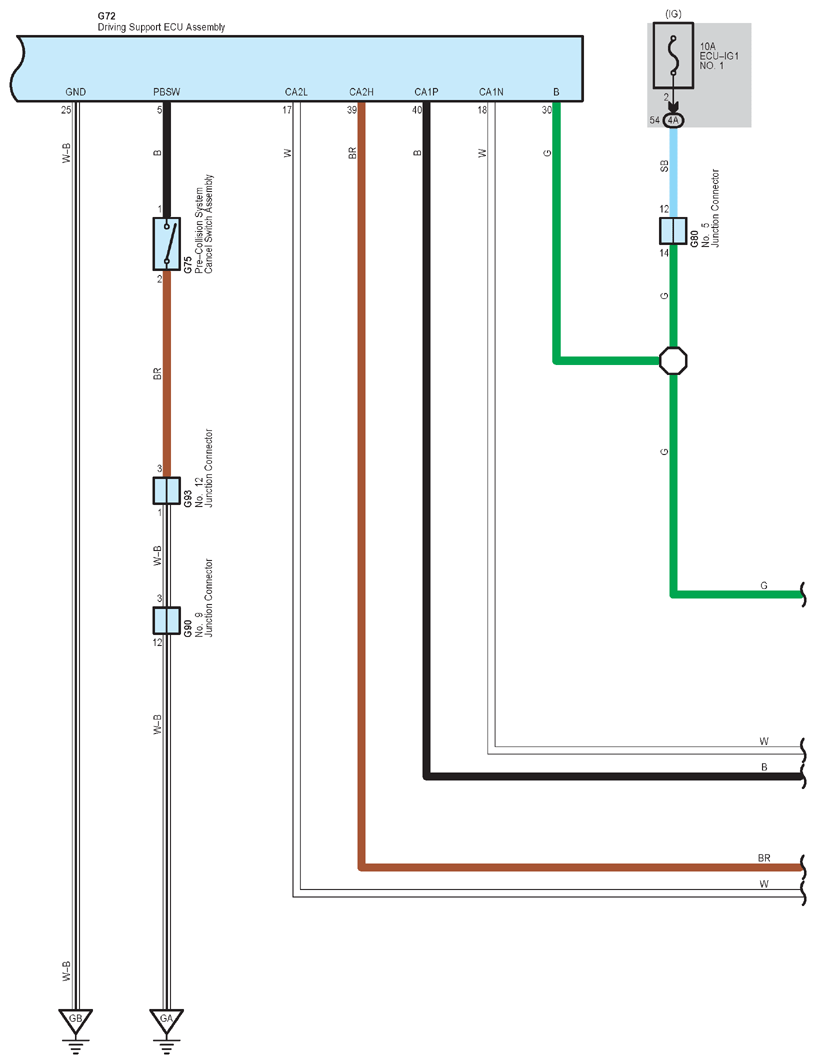

Fig 2: Pre-Collision System (2 Of 5)
G12204366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

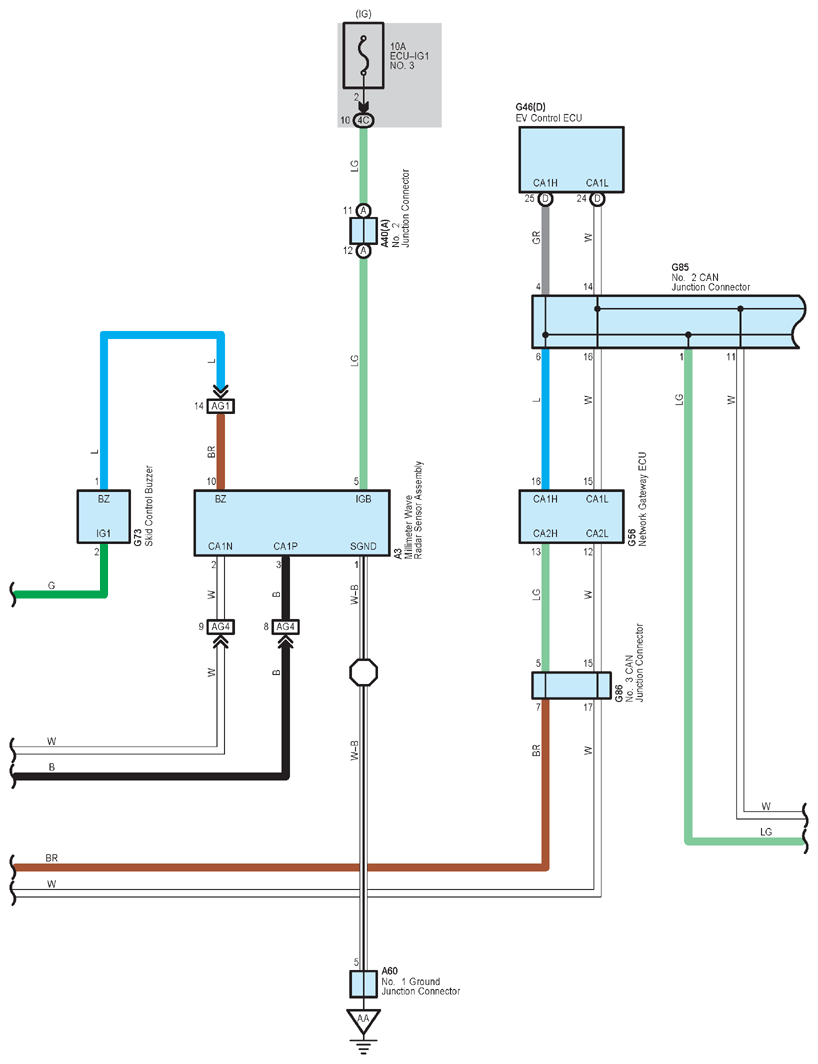

Fig 3: Pre-Collision System (3 Of 5)
G12204367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

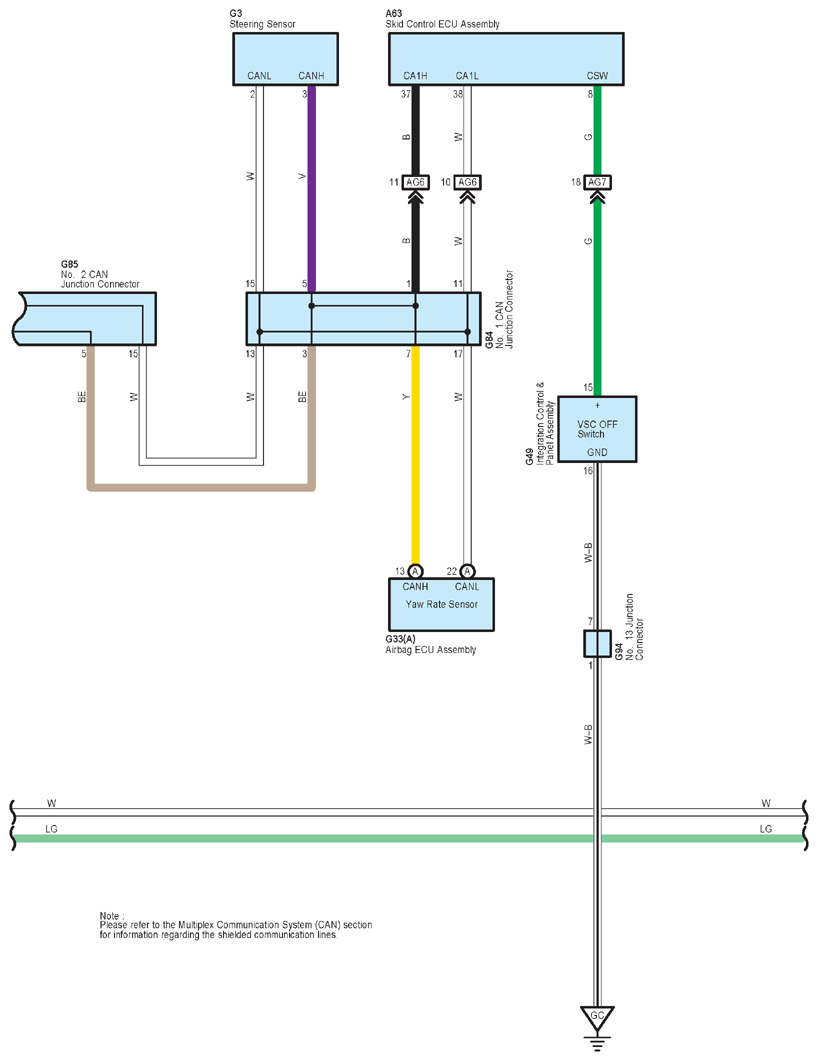

Fig 4: Pre-Collision System (4 Of 5)
G12204368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

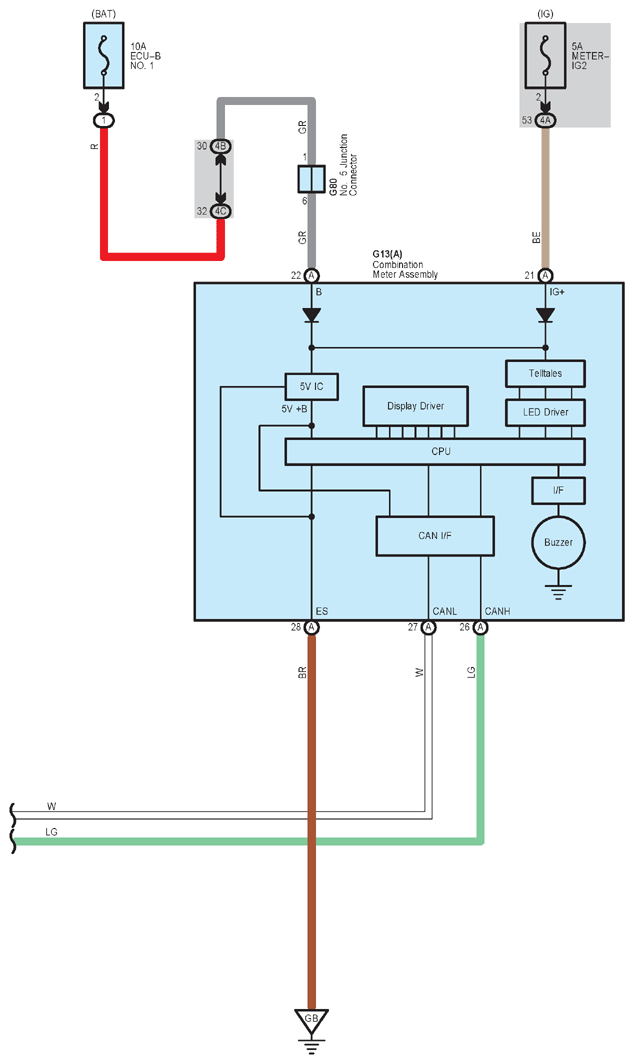

Fig 5: Pre-Collision System (5 Of 5)
G12204369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
