Inspection [06/2015 - 11/2018]: Procedure
- INSPECT PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.

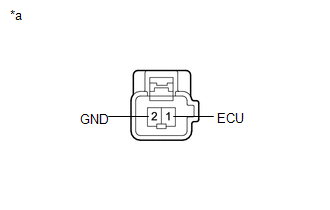

*a Component without harness connected
(Pre-collision System Cancel Switch Assembly)Standard Resistance
Tester Connection Switch Condition Specified 1 (ECU) - 2 (GND) Pressed Below 1 Ω 1 (ECU) - 2 (GND) Not pressed 10 kΩ or higher - If the result is not as specified, replace the pre-collision system cancel switch assembly.
- Measure the resistance according to the value(s) in the table below.
