Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSY

    Refer to PROCEDURE - Step 17 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 17 [01/2018 - 11/2018]

  2. REMOVE PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY

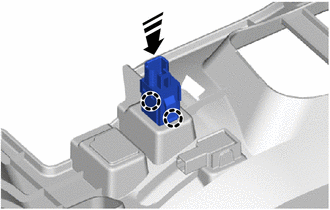

    1. Disengage the claws to remove the pre-collision system cancel switch assembly in the direction indicated by the arrow in the illustration.
      GTY553460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
