Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to PROCEDURE - Step 5

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
    2. Remove the 2 screws.

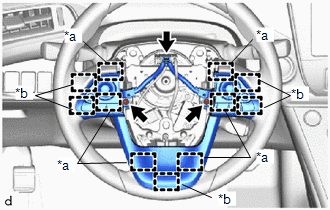

      GTY598803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Pin
    3. Disengage the 6 hooks and 5 pins to remove the steering pad switch assembly from the steering wheel assembly.
