Components [06/2015 - ]

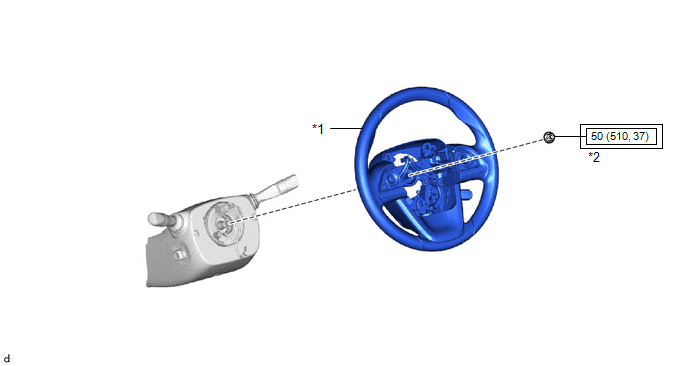

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	STEERING WHEEL ASSEMBLY	*2	STEERING WHEEL SET NUT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

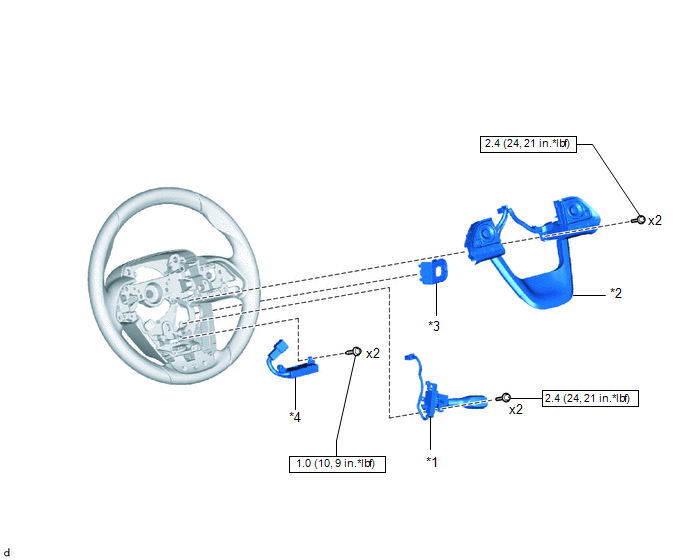

Fig 2: Steering Wheel Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CRUISE CONTROL MAIN SWITCH	*2	STEERING PAD SWITCH ASSEMBLY
*3	LOWER NO. 3 STEERING WHEEL COVER	*4	STEERING WHEEL HEATER CONTROL ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
