DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit [11/2015 - ]: Procedure

  1. CHECK CONNECTOR CONNECTION
    1. Turn the power switch off.
    2. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 1 indoor electrical key antenna assembly (front floor).

      OK

      Connectors are properly connected.

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY)
    1. Disconnect the G87 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the G51 No. 1 indoor electrical key antenna assembly (front floor) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G87-3 (CLG5) - G51-1 (ANTE5) Always Below 1 Ω
      G87-2 (CG5B) - G51-3 (CLGB) Always Below 1 Ω
      G85-11 (E) - Body ground Always Below 1 Ω
      G87-3 (CLG5) or G51-1 (ANTE5) - Body ground Always 10 kΩ or higher
      G87-2 (CG5B) or G51-3 (CLGB) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY)
    1. Connect the G87 and G85 certification ECU (smart key ECU assembly) connectors.

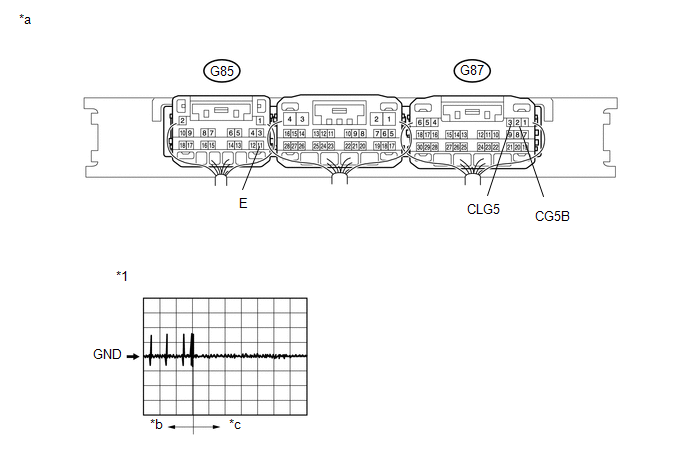

      GTY734313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Waveform - -
      *a Component with harness connected
      (Certification ECU (smart key ECU assembly))
      *b Within approximately 30 seconds from when the door is closed
      *c After approximately 30 seconds from when the door is closed - -
    2. Connect the G87 and G85 No. 1 indoor electrical key antenna assembly (front floor) connectors.
    3. Using an oscilloscope, check the waveform.

      OK

      Tester Connection Switch Condition Tool Setting Specified Condition
      G87-3 (CLG5) - G85-11 (E) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
      G87-2 (CG5B) - G85-11 (E) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    Refer to REMOVAL [11/2015 - ] )

    Result:

    OK

    See step  4

  4. REPLACE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)
    1. Temporarily replace the No. 1 indoor electrical key antenna assembly (front floor) with a new or known good one (Refer to REMOVAL [11/2015 - ] ).

    NEXT

    See step  5

  5. CLEAR DTC
    1. Clear the DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

    NEXT

    See step  6

  6. CHECK FOR DTC
    1. Check for DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

      OK

      DTC B27A5 is not output.

    Result:

    OK

    END (NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) WAS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    Refer to REMOVAL [11/2015 - ] )
