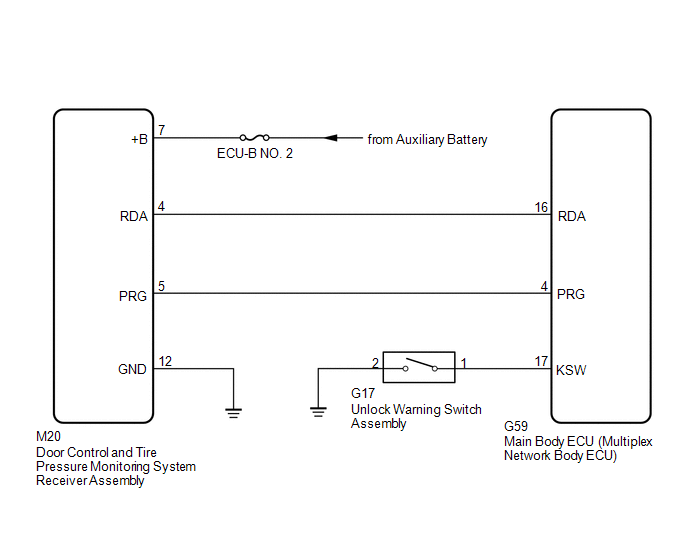

Only Wireless Control Function is Inoperative [11/2015 - ]: Wiring Diagram

GTY327233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
