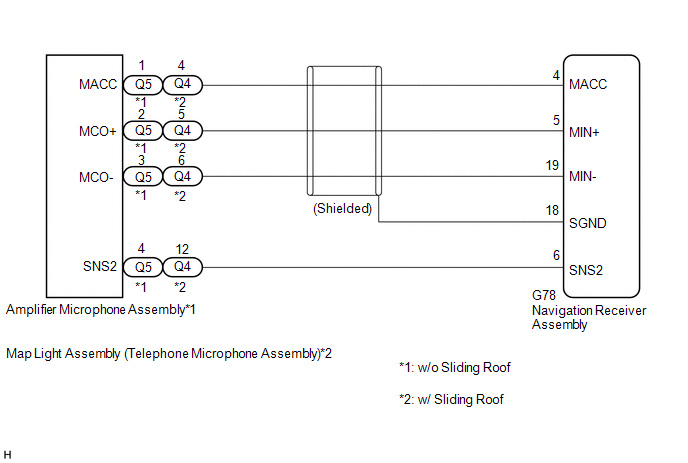

Microphone Circuit between Microphone and Navigation Receiver Assembly [11/2015 - ]: Wiring Diagram

GTY725022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
