Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [11/2015 - 06/2017]: Procedure
- READ VALUE USING TECHSTREAM (DRIVER DOOR WINDOW MOTOR)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / D-Door Motor / Data List.
- Read the Data List according to the display on the Techstream.D-DOOR MOTOR
Tester Display Measurement Item/Range Normal Condition Diagnostic Note D Door P/W Auto SW Driver door power window auto switch signal / ON or OFF ON: Driver door power window auto switch operated
OFF: Driver door power window auto switch not operated- OK
On the Techstream screen, ON or OFF is displayed accordingly.
Result:
NG
See step 4
Result:
OK
See step 2
- PERFORM INITIALIZATION (DRIVER DOOR WINDOW MOTOR)
- Initialize the power window regulator motor assembly LH (for driver door) (Refer to INITIALIZATION [11/2015 - 06/2017] ).
NEXT
See step 3
- CHECK POWER WINDOW CONTROL SYSTEM (AUTO UP/DOWN FUNCTION)
- Check that the driver door power window moves when the auto up and down functions of the power window regulator master switch assembly are operated (Refer to OPERATION CHECK [11/2015 - 06/2017]
).
OK
Driver door auto up and down functions are normal.
Result:
OK
END (PROBLEM DUE TO INITIALIZATION FAILURE)
Result:
NG
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)
Refer to REMOVAL [11/2015 - ] )
- Check that the driver door power window moves when the auto up and down functions of the power window regulator master switch assembly are operated (Refer to OPERATION CHECK [11/2015 - 06/2017]
).
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Remove the power window regulator master switch assembly (Refer to REMOVAL [11/2015 - ]
).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

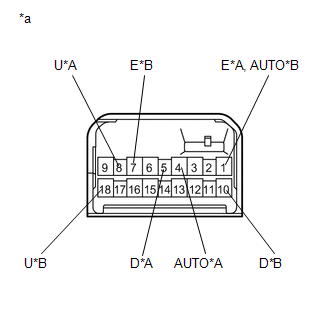

(W/ REAR POWER WINDOW)Tester Connection Condition Specified Condition 8 (U) - 1 (E) Auto UP Below 1 Ω 4 (AUTO) - 1 (E) Auto UP Below 1 Ω 5 (D) - 1 (E) Auto DOWN Below 1 Ω 4 (AUTO) - 1 (E) Auto DOWN Below 1 Ω (W/O REAR POWER WINDOW)Tester Connection Condition Specified Condition 18 (U) - 7 (E) Auto UP Below 1 Ω 1 (AUTO) - 7 (E) Auto UP Below 1 Ω 10 (D) - 7 (E) Auto DOWN Below 1 Ω 1 (AUTO) - 7 (E) Auto DOWN Below 1 Ω TEXT IN ILLUSTRATION*A w/ Rear Power Window *B w/o Rear Power Window *a Component without harness connected
(Power Window Regulator Master Switch Assembly)
Result:
NG
REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
Refer to REMOVAL [11/2015 - ] )
Result:
OK
See step 5
- Remove the power window regulator master switch assembly (Refer to REMOVAL [11/2015 - ]
).
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH - POWER WINDOW REGULATOR MOTOR (FOR DRIVER DOOR))
- Disconnect the J3 power window regulator motor assembly LH (for driver door) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ REAR POWER WINDOWTester Connection Condition Specified Condition J1-4 (AUTO) - J3-4 (AUTO) Always Below 1 Ω J1-4 (AUTO) - Body ground Always 10 kΩ or higher W/O REAR POWER WINDOWTester Connection Condition Specified Condition J1-1 (AUTO) - J3-4 (AUTO) Always Below 1 Ω J1-1 (AUTO) - Body ground Always 10 kΩ or higher
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)
Refer to REMOVAL [11/2015 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
