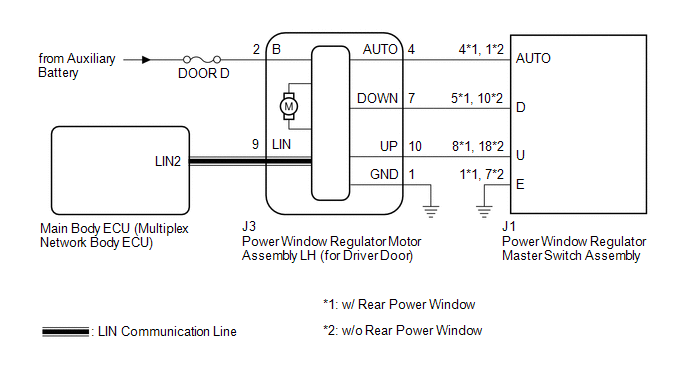

Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [11/2015 - 06/2017]: Wiring Diagram

GTY694235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
