Driver Side Power Window does not Operate with Power Window Master Switch [11/2015 - ]: Procedure
- READ VALUE USING TECHSTREAM (MAIN BODY)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Main Body / Data List.
- Read the Data List according to the display on the Techstream.MAIN BODY
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Communication D-Door Motor Connection status between power window regulator motor assembly LH (for driver door) and main body ECU (multiplex network body ECU) / OK or STOP OK: Normal communication
STOP: Communication stopped- OK
On the Techstream screen, OK is displayed.
Result:
NG
REFER TO LIN COMMUNICATION SYSTEM (Proceed to How to Proceed with Troubleshooting)
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2015 - ] )
Result:
OK
See step 2
- READ VALUE USING TECHSTREAM (DRIVER DOOR WINDOW MOTOR)
- Enter the following menus: Body Electrical / D-Door Motor / Data List.
- Read the Data List according to the display on the Techstream.D-DOOR MOTOR
Tester Display Measurement Item/Range Normal Condition Diagnostic Note D Door P/W Up SW Driver door power window manual up switch signal / ON or OFF ON: Driver door power window manual up switch operated
OFF: Driver door power window manual up switch not operated- D Door P/W Down SW Driver door power window manual down switch signal / ON or OFF ON: Driver door power window manual down switch operated
OFF: Driver door power window manual down switch not operated- OK
On the Techstream screen, ON or OFF is displayed accordingly.
Result:
NG
See step 4
Result:
OK
See step 3
- PERFORM ACTIVE TEST USING TECHSTREAM (DRIVER DOOR WINDOW MOTOR)
- Enter the following menus: Body Electrical / D-Door Motor / Active Test.
- Perform the Active Test according to the display on the Techstream.WARNING:
Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.
D-DOOR MOTORTester Display Test Part Control Range Diagnostic Note Power Window Power window OFF / UP / DOWN - OK
Driver door power window operates normally.
Result:
OK
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
Refer to REMOVAL [11/2015 - ] )
Result:
NG
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)
Refer to REMOVAL [11/2015 - ] )
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR LH (FOR DRIVER DOOR) - AUXILIARY BATTERY AND BODY GROUND)
- Disconnect the J3 power window regulator motor assembly LH (for driver door) connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J3-2 (B) - Body ground Ignition switch off 11 to 14 V Standard Resistance
Tester Connection Condition Specified Condition J3-1 (GND) - Body ground Always Below 1 Ω
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH - POWER WINDOW REGULATOR MOTOR (FOR DRIVER) AND BODY GROUND)
- Disconnect the J1 power window regulator master switch assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
W/ REAR POWER WINDOWTester Connection Condition Specified Condition J1-8 (U) - J3-10 (UP) Always Below 1 Ω J1-5 (D) - J3-7 (DOWN) Always Below 1 Ω J1-8 (U) - Body ground Always 10 kΩ or higher J1-5 (D) - Body ground Always 10 kΩ or higher J1-1 (E) - Body ground Always Below 1 Ω W/O REAR POWER WINDOWTester Connection Condition Specified Condition J1-18 (U) - J3-10 (UP) Always Below 1 Ω J1-10 (D) - J3-7 (DOWN) Always Below 1 Ω J1-18 (U) - Body ground Always 10 kΩ or higher J1-10 (D) - Body ground Always 10 kΩ or higher J1-7 (E) - Body ground Always Below 1 Ω
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Remove the power window regulator master switch assembly (Refer to REMOVAL [11/2015 - ]
).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

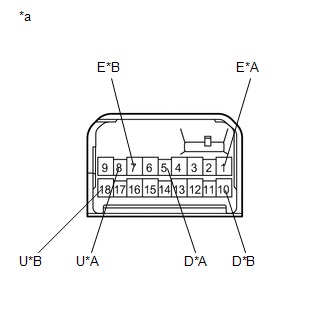

(W/ REAR POWER WINDOW)Tester Connection Condition Specified Condition 8 (U) - 1 (E) Manual UP Below 1 Ω 5 (D) - 1 (E) Manual DOWN Below 1 Ω (W/O REAR POWER WINDOW)Tester Connection Condition Specified Condition 18 (U) - 7 (E) Manual UP Below 1 Ω 10 (D) - 7 (E) Manual DOWN Below 1 Ω TEXT IN ILLUSTRATION*A w/ Rear Power Window *B w/o Rear Power Window *a Component without harness connected
(Power Window Regulator Master Switch Assembly)
Result:
OK
REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (FOR DRIVER DOOR)
Refer to REMOVAL [11/2015 - ] )
Result:
NG
REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
Refer to REMOVAL [11/2015 - ] )
