Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [11/2015 - ]: Procedure

1. Disconnect the H2 power window regulator switch assembly (for front passenger door) connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H2-3 (B) - Body ground	Ignition switch ON (IG)	11 to 14 V

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Remove the power window regulator switch assembly (for front passenger door) (Refer to REMOVAL [11/2015 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance when the switch is operated according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (D) - 2 (SD)	UP	Below 1 Ω
   3 (B) - 4 (U)		Below 1 Ω
   1 (D) - 2 (SD)	off	Below 1 Ω
   4 (U) - 5 (SU)		Below 1 Ω
   4 (U) - 5 (SU)	DOWN	Below 1 Ω
   1 (D) - 3 (B)		Below 1 Ω

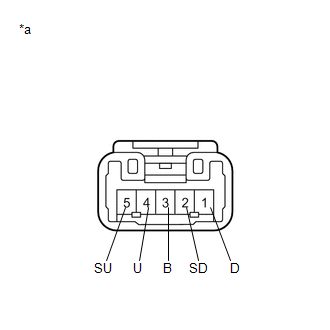

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Power Window Regulator Switch Assembly (for Front Passenger Door))

Result:

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR FRONT PASSENGER DOOR)

Refer to REMOVAL [11/2015 - ] )

Result:

OK

See step  3

1. Disconnect the H4 power window regulator motor assembly RH (for front passenger door) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H2-4 (U) - H4-2 (U)	Always	Below 1 Ω
   H2-1 (D) - H4-1 (D)	Always	Below 1 Ω
   H2-4 (U) - Body ground	Always	10 kΩ or higher
   H2-1 (D) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Remove the power window regulator master switch assembly (Refer to REMOVAL [11/2015 - ] ).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance when the switch is operated according to the value(s) in the table below.

   Standard Resistance

   (W/ REAR POWER WINDOW)



   Tester Connection	Condition	Specified Condition
   6 (B) - 16 (U)	UP	Below 1 Ω
   1 (E) - 15 (D)		Below 1 Ω
   1 (E) - 16 (U)	off	Below 1 Ω
   1 (E) - 15 (D)		Below 1 Ω
   6 (B) - 15 (D)	DOWN	Below 1 Ω
   1 (E) - 16 (U)		Below 1 Ω

   (W/O REAR POWER WINDOW)



   Tester Connection	Condition	Specified Condition
   15 (B) - 12 (U)	UP	Below 1 Ω
   7 (E) - 16 (D)		Below 1 Ω
   7 (E) - 12 (U)	off	Below 1 Ω
   7 (E) - 16 (D)		Below 1 Ω
   15 (B) - 16 (D)	DOWN	Below 1 Ω
   7 (E) - 12 (U)		Below 1 Ω

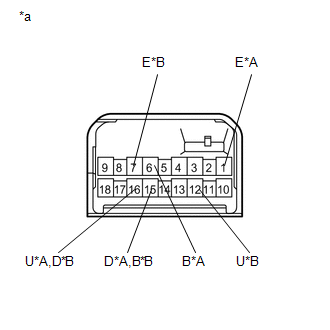

   TEXT IN ILLUSTRATION



   *A	w/ Rear Power Window
   *B	w/o Rear Power Window
   *a	Component without harness connected (Power Window Regulator Master Switch Assembly)

Result:

NG

REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

Refer to REMOVAL [11/2015 - ] )

Result:

OK

See step  5

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   W/ REAR POWER WINDOW



   Tester Connection	Condition	Specified Condition
   J1-16 (U) - H2-5 (SU)	Always	Below 1 Ω
   J1-15 (D) - H2-2 (SD)	Always	Below 1 Ω
   J1-16 (U) - Body ground	Always	10 kΩ or higher
   J1-15 (D) - Body ground	Always	10 kΩ or higher

   W/O REAR POWER WINDOW



   Tester Connection	Condition	Specified Condition
   J1-12 (U) - H2-5 (SU)	Always	Below 1 Ω
   J1-16 (D) - H2-2 (SD)	Always	Below 1 Ω
   J1-12 (U) - Body ground	Always	10 kΩ or higher
   J1-16 (D) - Body ground	Always	10 kΩ or higher

Result:

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (FOR FRONT PASSENGER DOOR)

Refer to REMOVAL [11/2015 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
