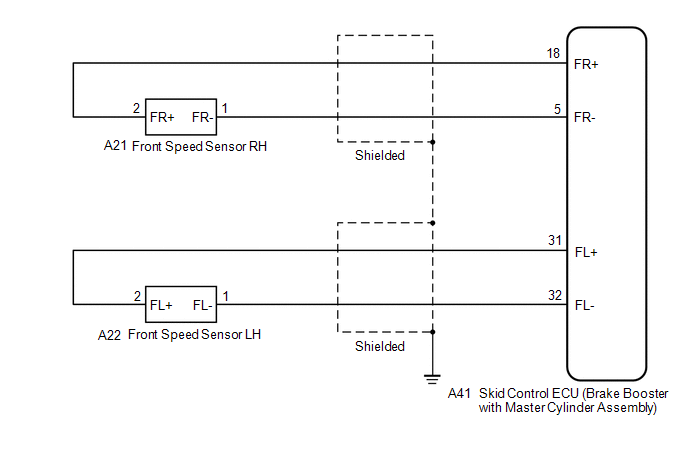

DTC C1271/71: Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72: Low Output Signal of Front Speed Sensor LH (Test Mode DTC); DTC C1464/31: Front Speed Sensor RH Circuit; DTC C1465/32: Front Speed Sensor LH Circuit [11/2015 - ]: Wiring Diagram

GTY702099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
