System Diagrams

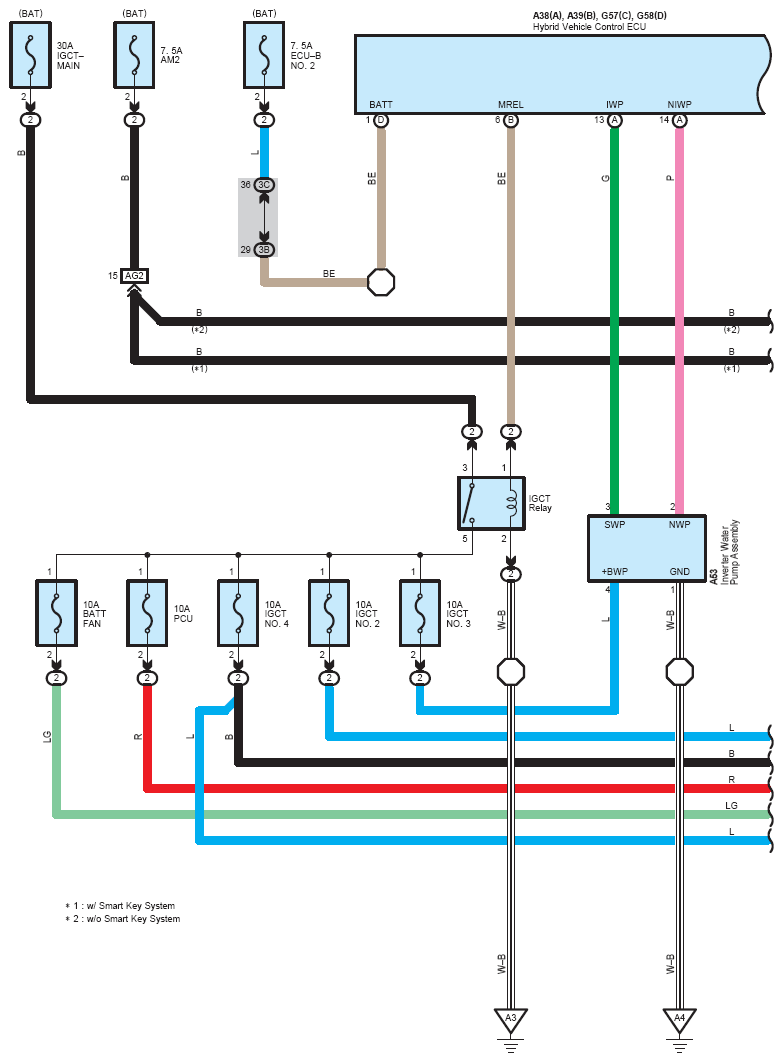

Fig 1: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (1 Of 20)

G12211297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

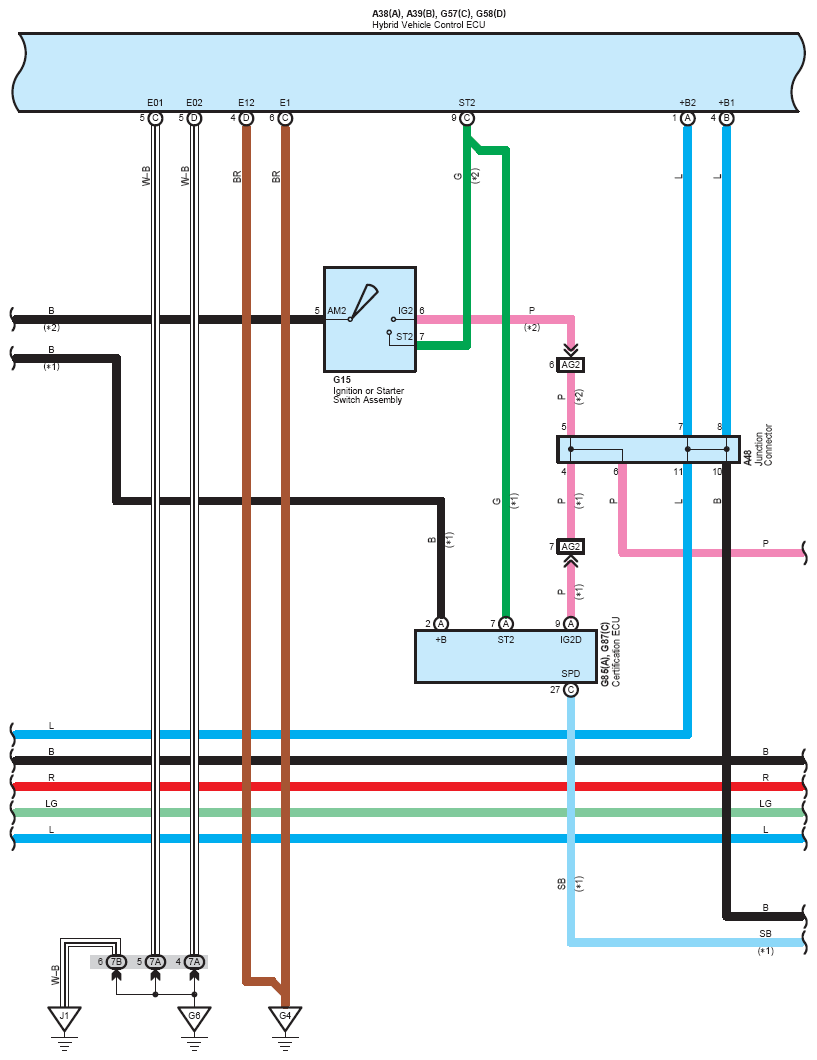

Fig 2: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (2 Of 20)

G12211298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

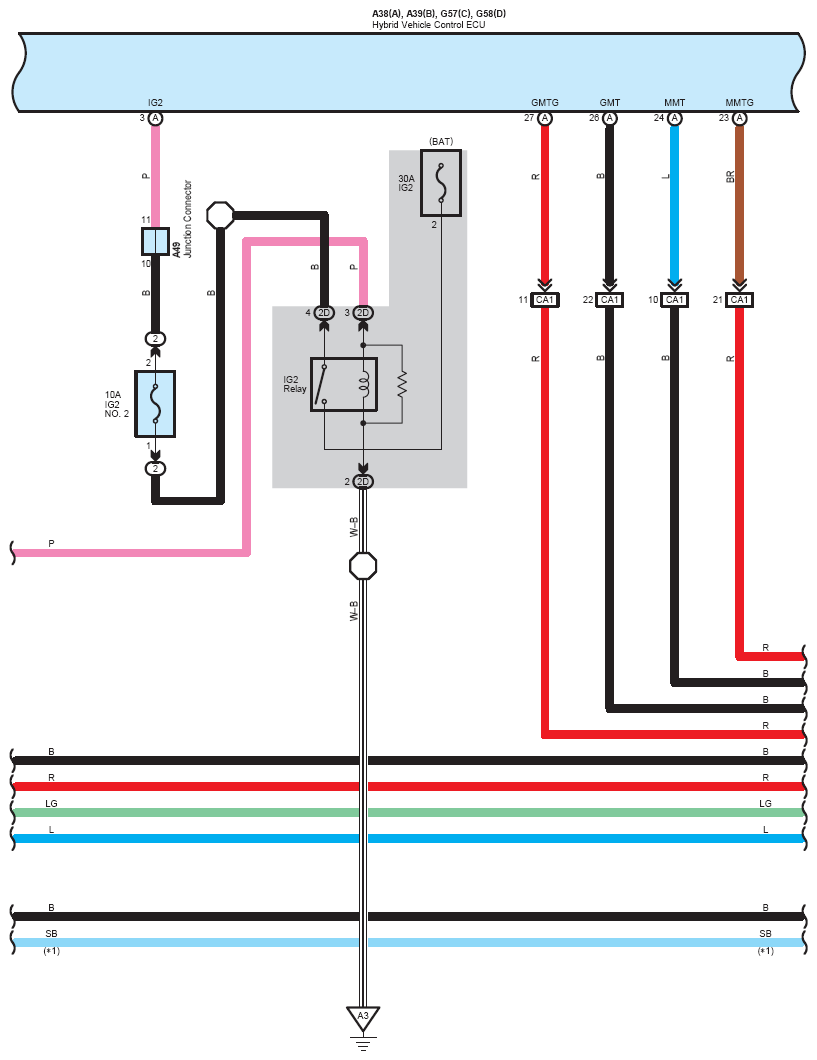

Fig 3: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (3 Of 20)

G12211299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

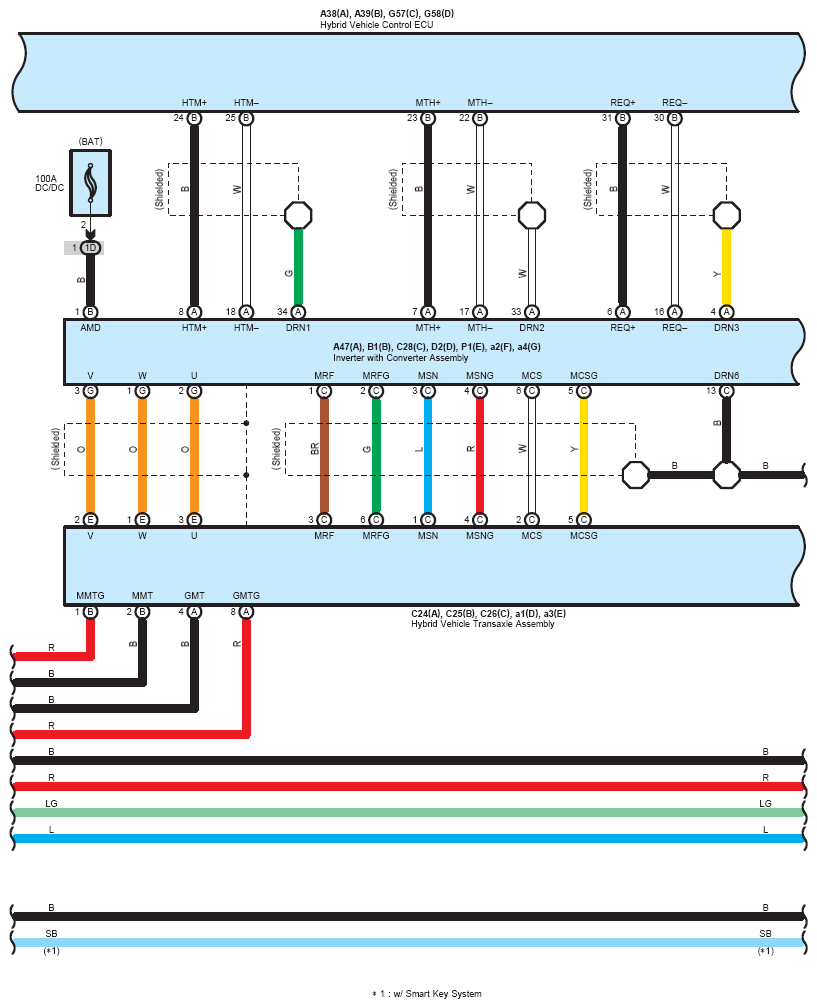

Fig 4: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (4 Of 20)

G12211300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

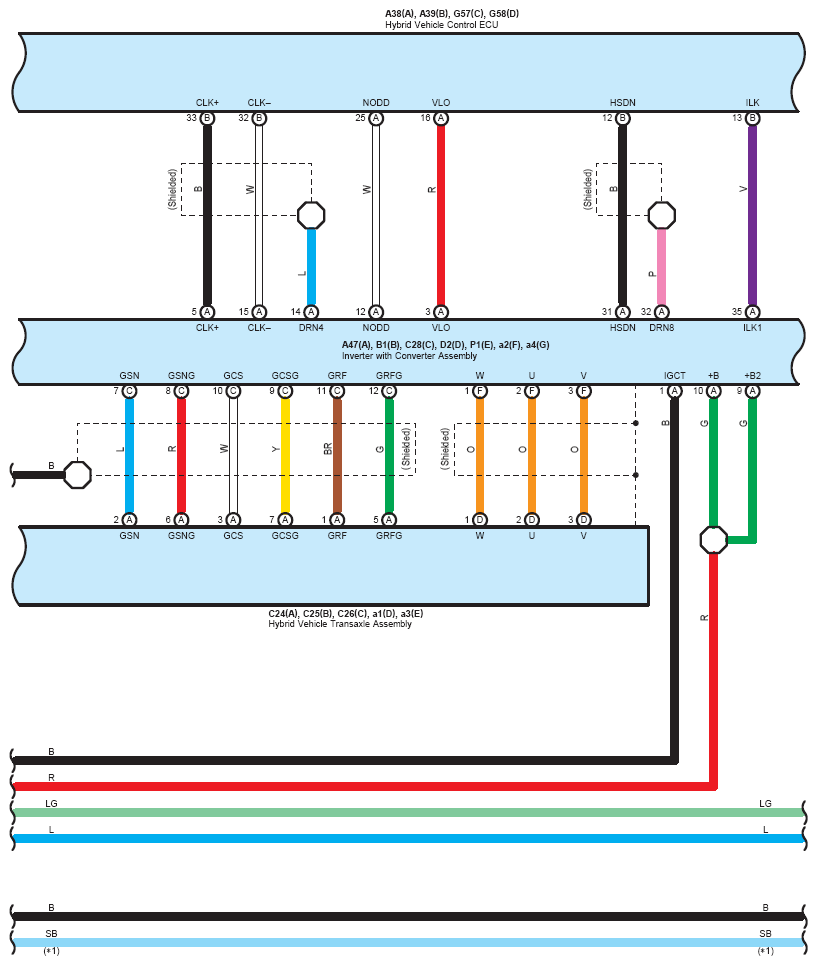

Fig 5: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (5 Of 20)

G12211301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

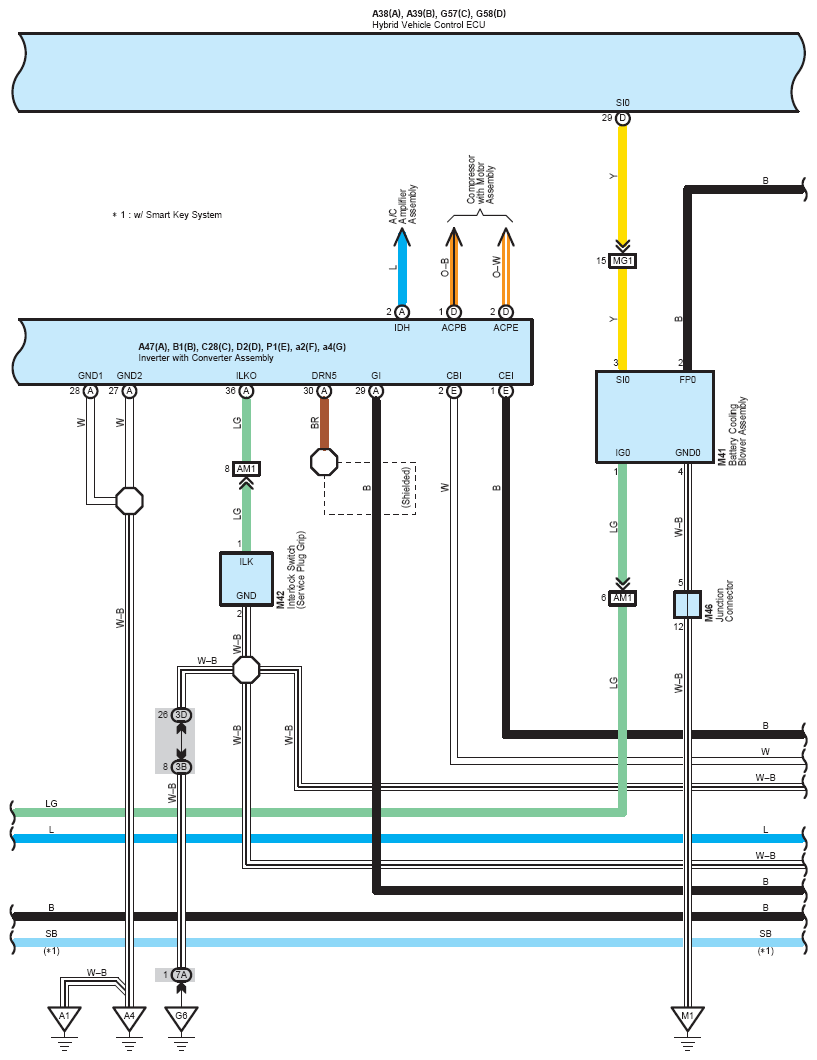

Fig 6: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (6 Of 20)

G12211302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

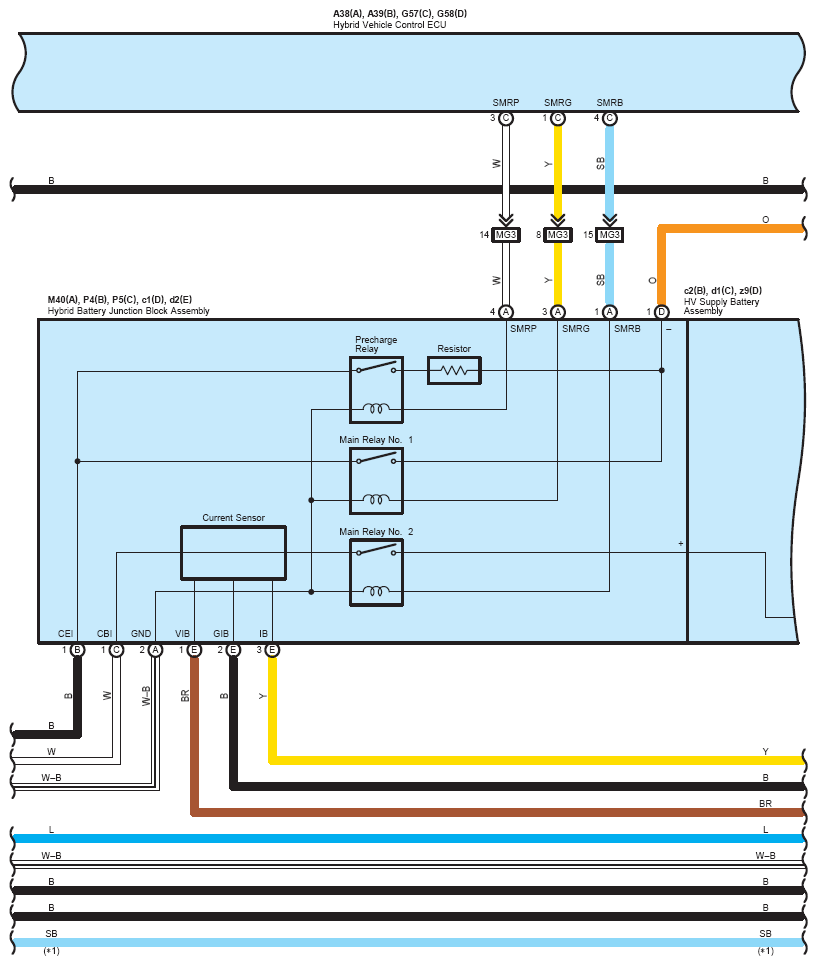

Fig 7: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (7 Of 20)

G12211303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

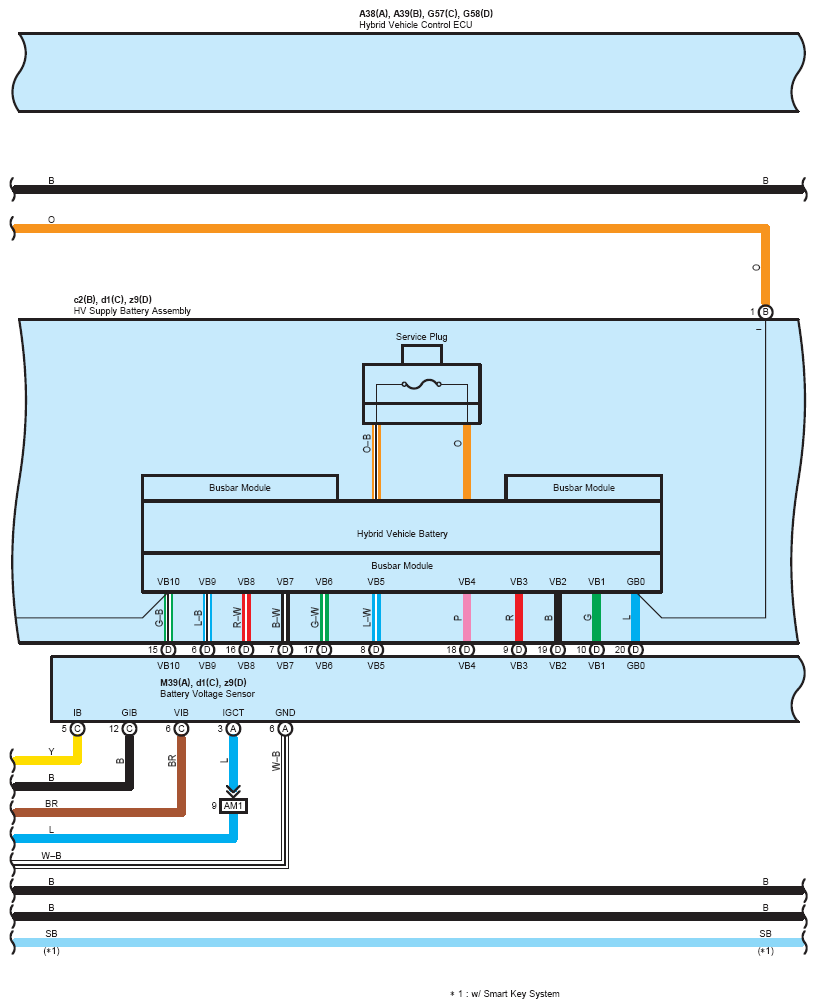

Fig 8: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (8 Of 20)

G12211304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

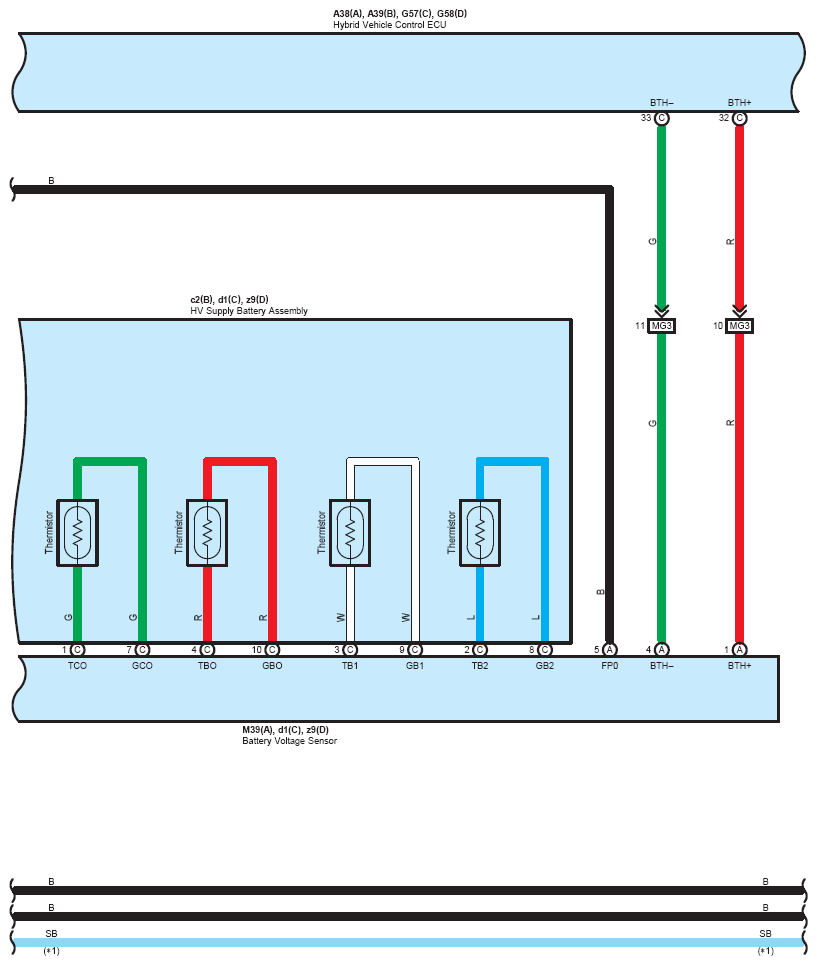

Fig 9: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (9 Of 20)

G12211305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

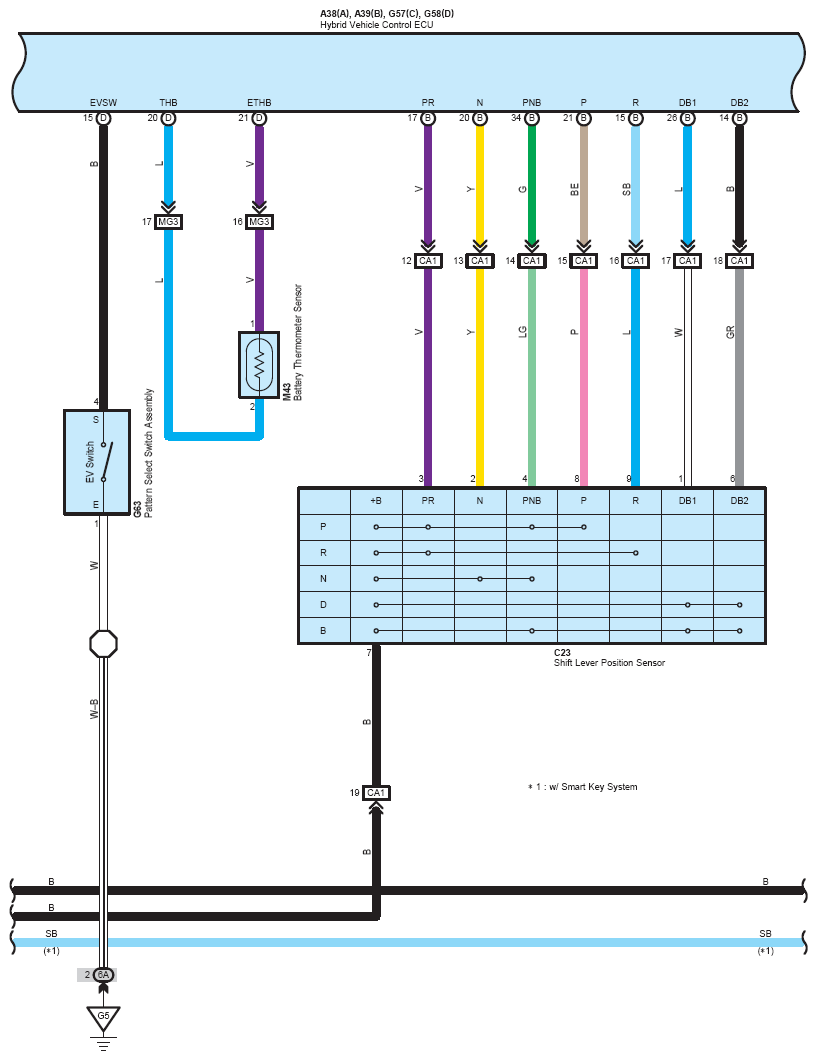

Fig 10: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (10 Of 20)

G12211306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

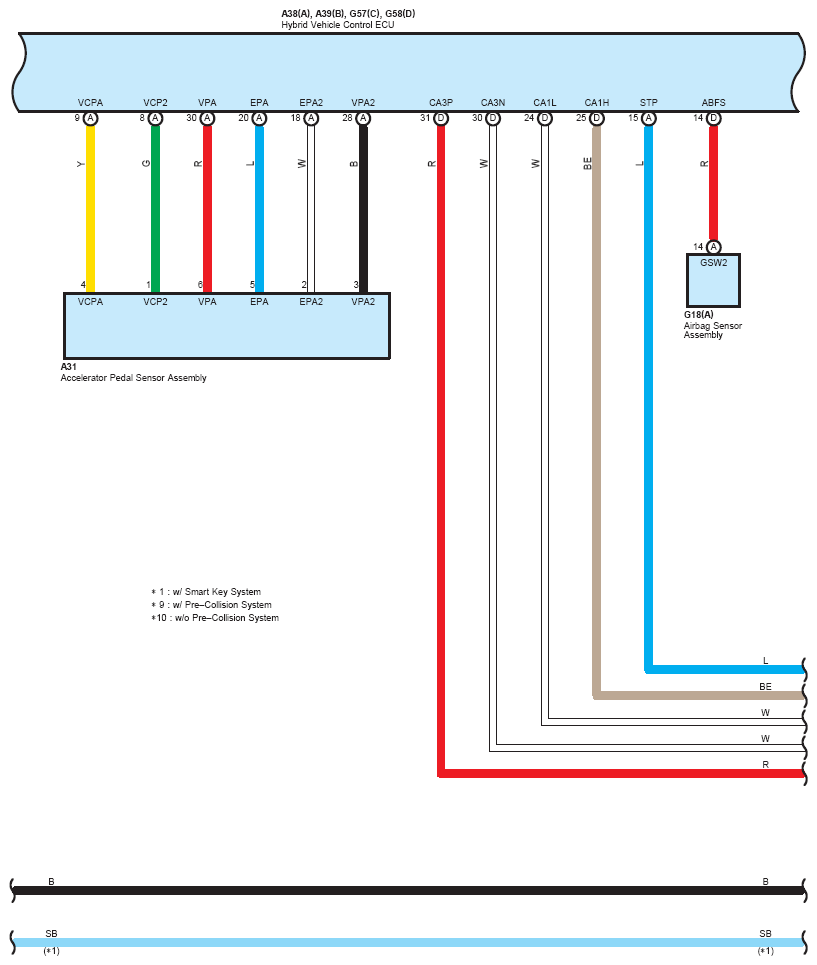

Fig 11: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (11 Of 20)

G12211307

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

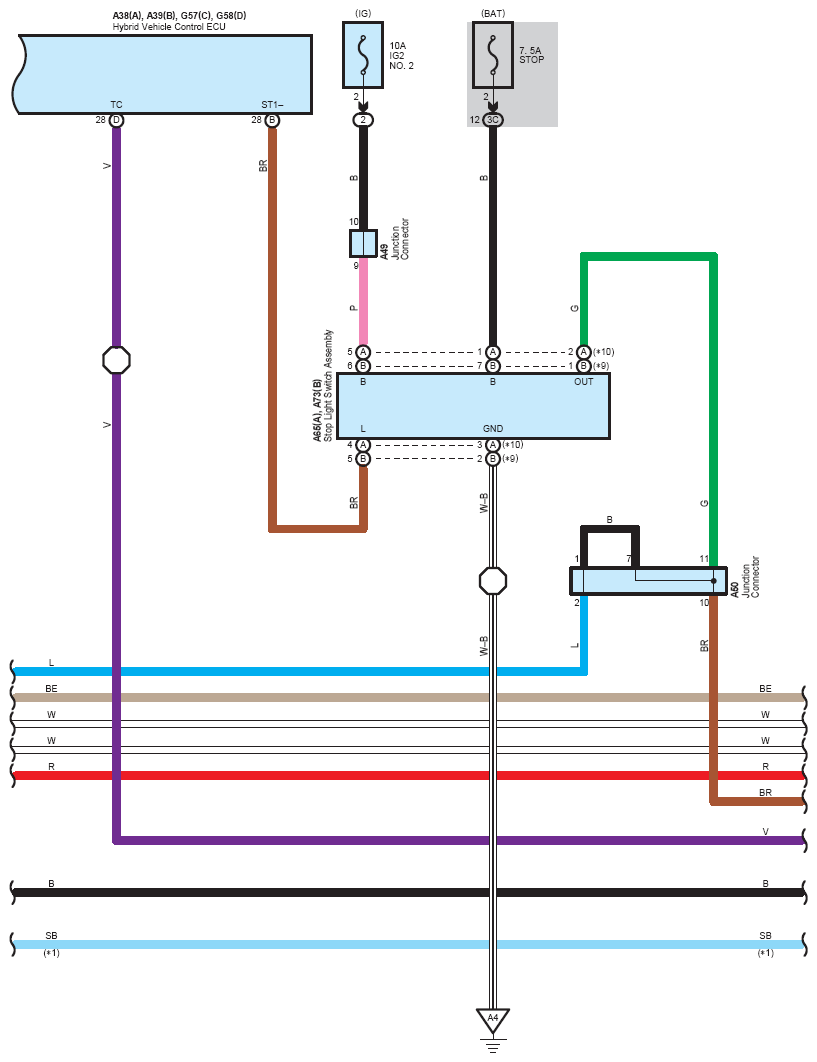

Fig 12: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (12 Of 20)

G12211308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

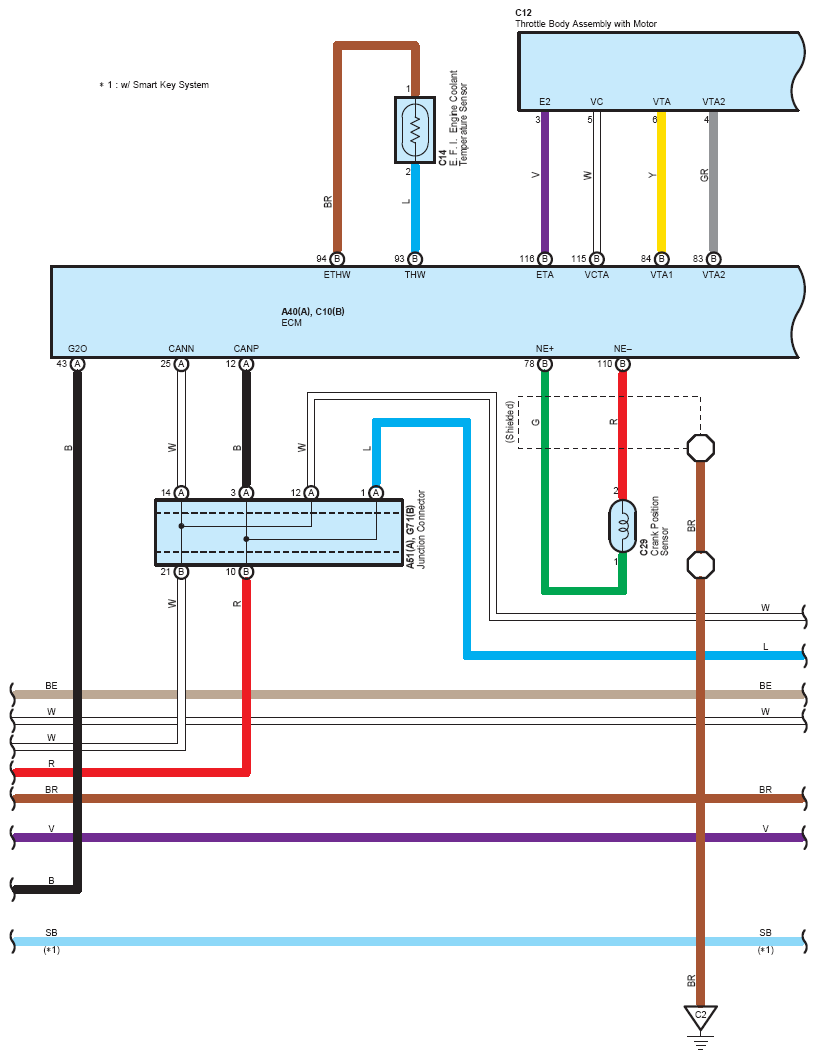

Fig 13: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (13 Of 20)

G12211309

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

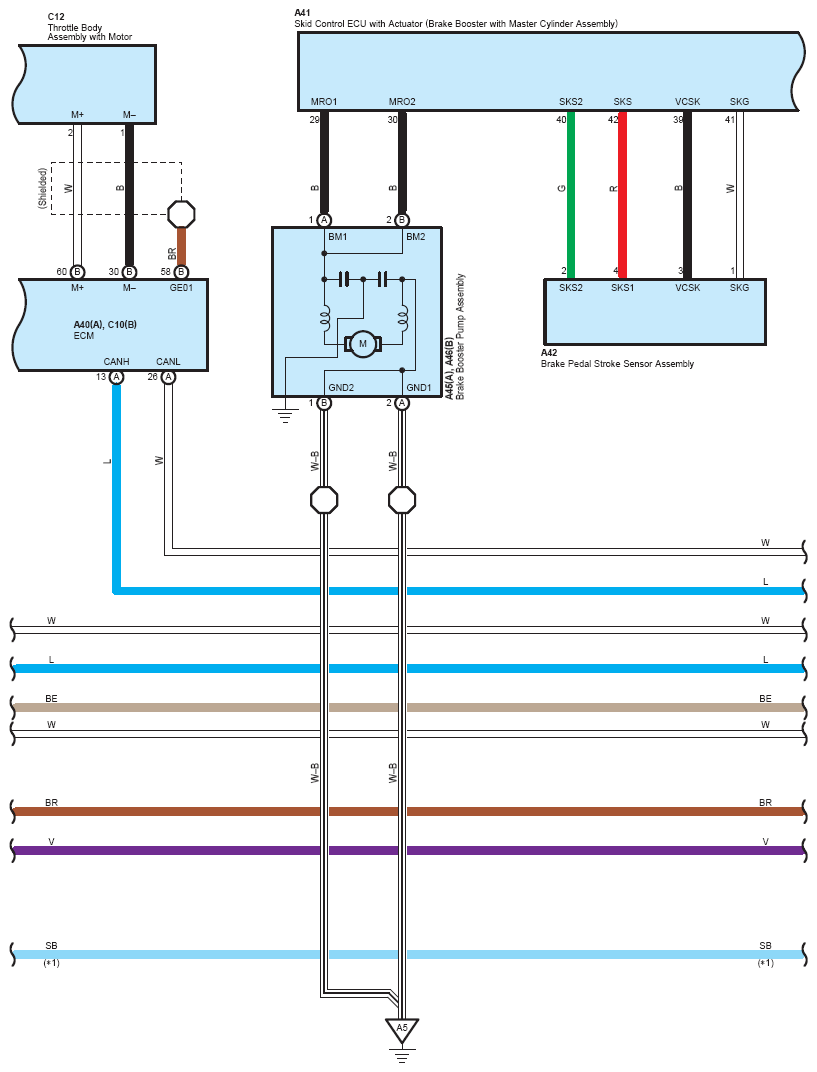

Fig 14: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (14 Of 20)

G12211310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

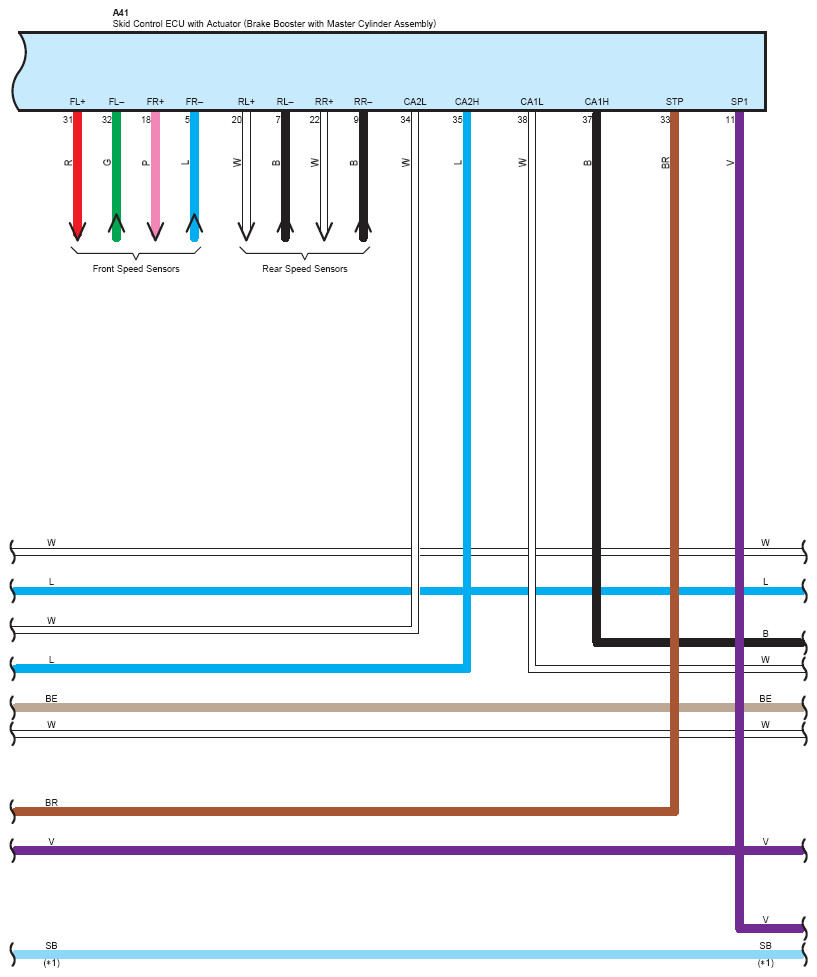

Fig 15: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (15 Of 20)

G12211311

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

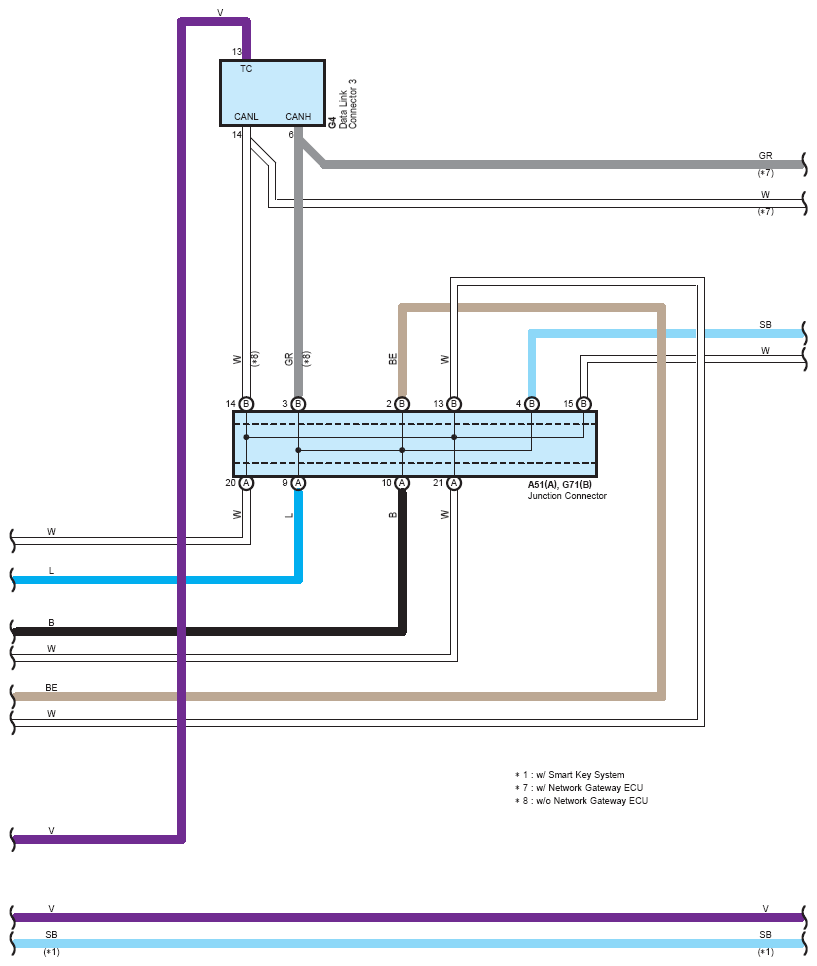

Fig 16: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (16 Of 20)

G12211312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

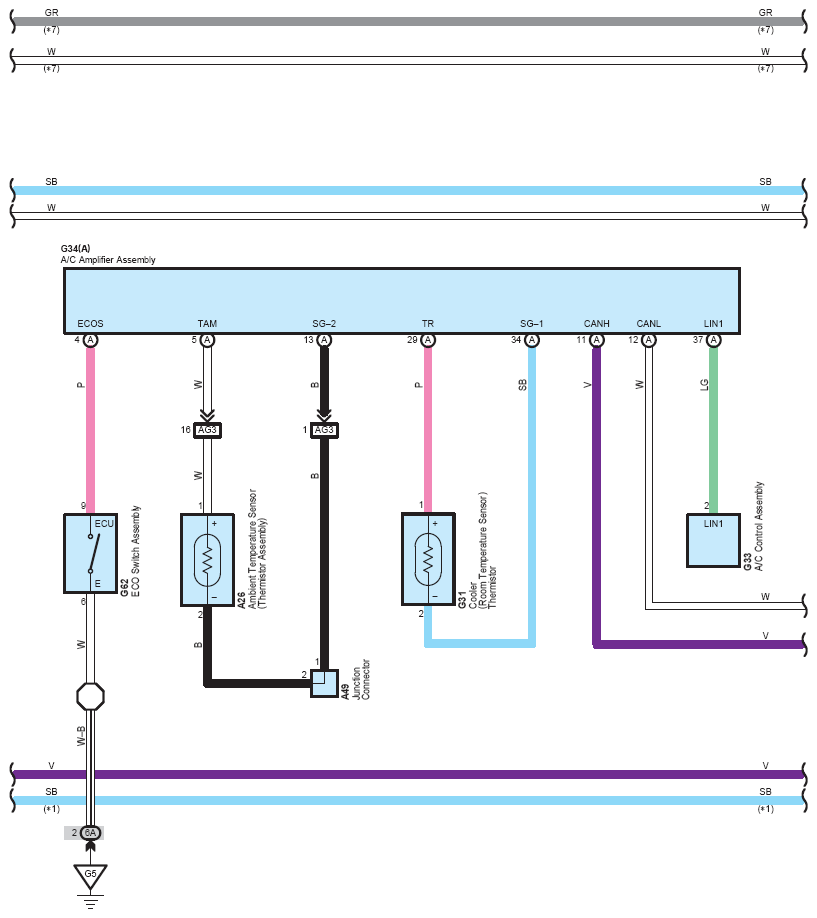

Fig 17: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (17 Of 20)

G12211313

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

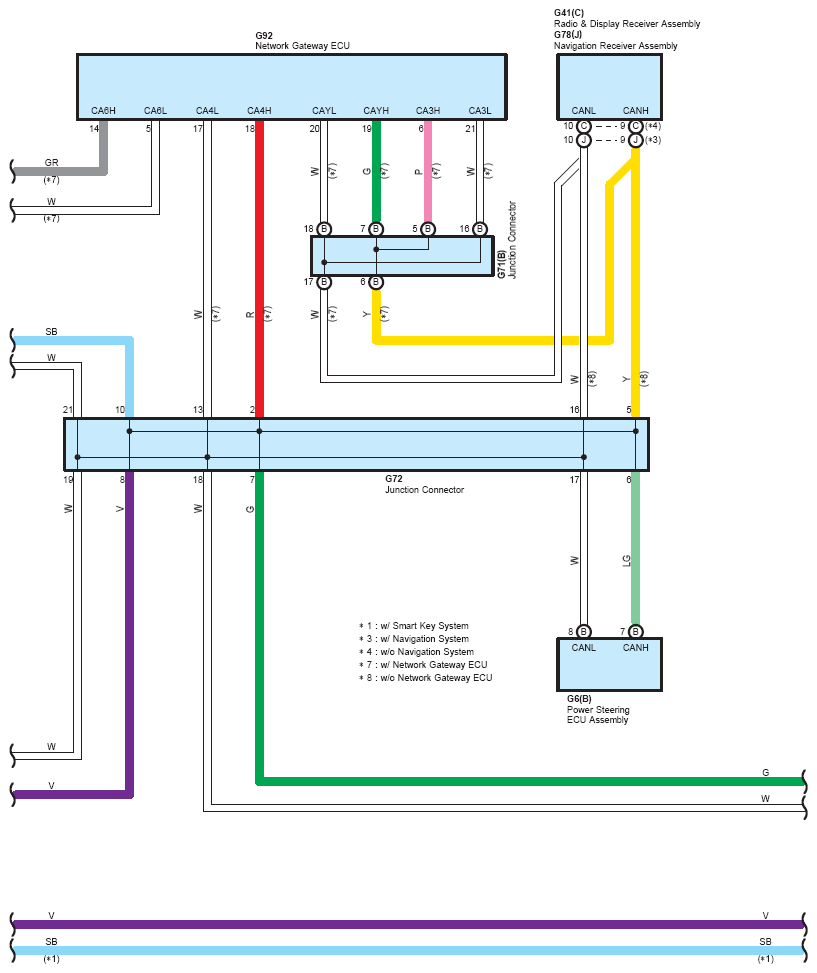

Fig 18: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (18 Of 20)

G12211314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

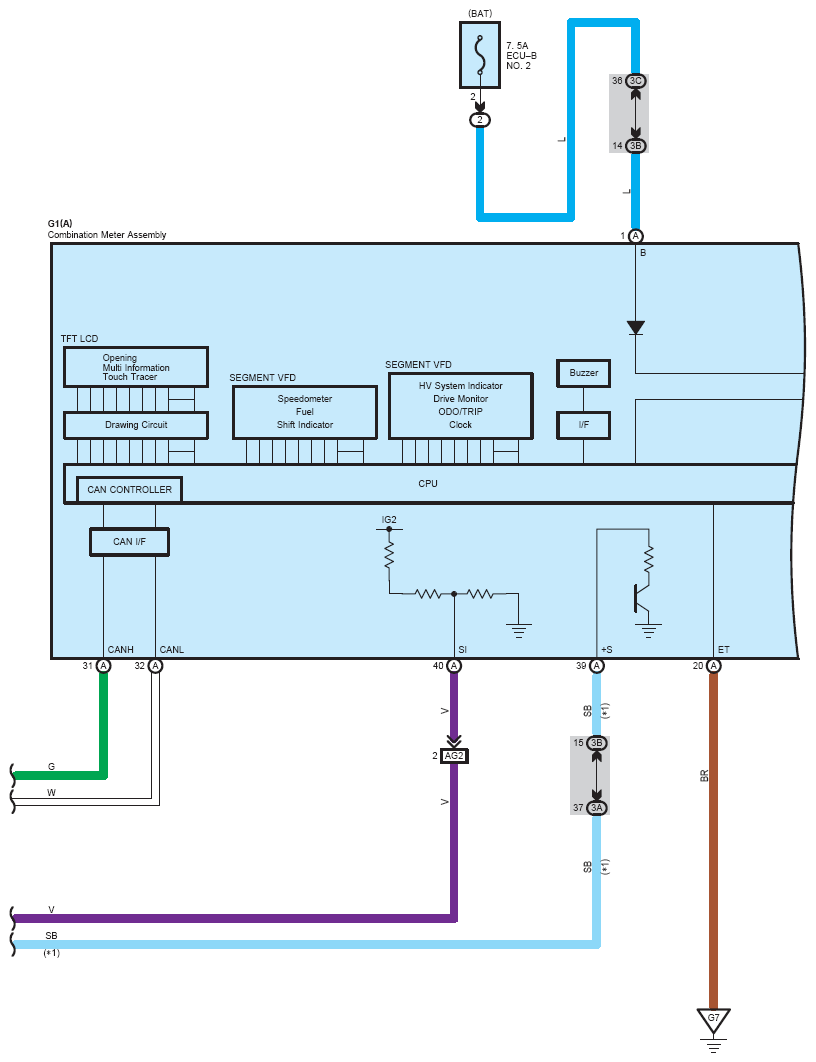

Fig 19: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (19 Of 20)

G12211315

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

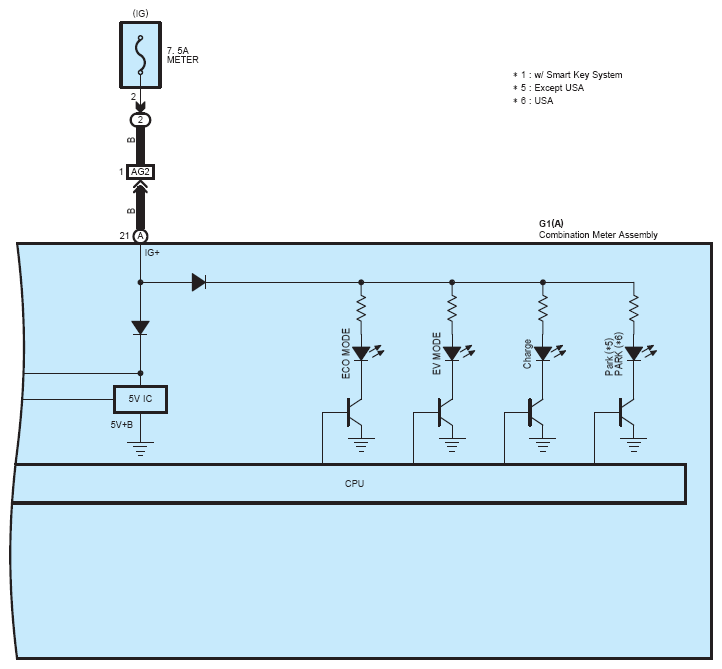

Fig 20: Hybrid System, Shift Control System, Starting (W/O Smart Key System) (20 Of 20)

G12211316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
