Confirmation Driving Pattern

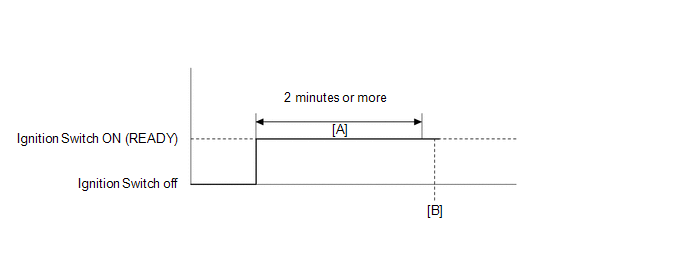

GTY712801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the Techstream to the DLC3.
  2. Turn the ignition switch to ON (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 30 seconds or more.
  5. Turn the ignition switch to ON (IG) and turn the Techstream on.
  6. Turn the ignition switch to ON (READY) and wait for 2 minutes or more. [A]
  7. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [B]
  8. Read the current DTCs.

    HINT:

    • If a current DTC is output, the system is malfunctioning.
    • If a current DTC is not output, perform the following procedure.
  9. Check that permanent DTCs are cleared. If no permanent DTC is output, the system is normal.
  10. If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.
