DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction [11/2015 - 06/2017]: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the airbag sensor assembly and occupant detection ECU. Also check that the connectors that link the front seat wire RH and floor wire are properly connected.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the airbag sensor assembly and occupant detection ECU. Also disconnect the connectors that link the front seat wire RH and floor wire.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    Result:

    NG

    REPLACE WIRE HARNESS

    Result:

    OK

    See step  2

  2. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO B+)
    1. Connect the connectors that link the floor wire and front seat wire RH.

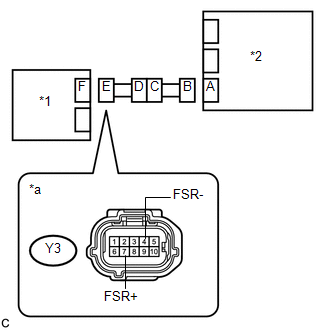

      GTY731556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the ignition switch to ON (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      Y3-7 (FSR+) - Body ground Ignition switch ON (IG) Below 1 V
      Y3-4 (FSR-) - Body ground Ignition switch ON (IG) Below 1 V
    5. Turn the ignition switch off.
    6. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

    Result:

    NG

    See step  10

    Result:

    OK

    See step  3

  3. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (OPEN)
    1. Using a service wire, connect terminals 12 (FSR+) and 13 (FSR-) of connector B.

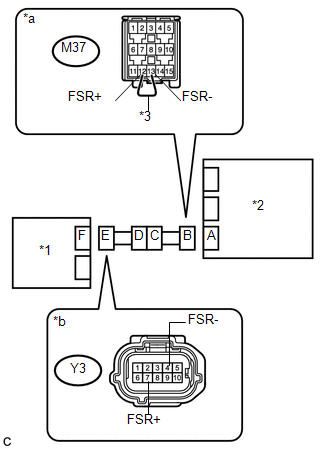

      GTY710197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Y3-7 (FSR+) - Y3-4 (FSR-) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *3 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Occupant Detection ECU)

    Result:

    NG

    See step  11

    Result:

    OK

    See step  4

  4. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT)
    1. Disconnect the service wire from connector B.
      GTY731556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Y3-7 (FSR+) - Y3-4 (FSR-) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

    Result:

    NG

    See step  12

    Result:

    OK

    See step  5

  5. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.
      GTY731556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      Y3-7 (FSR+) - Body ground Always 1 MΩ or higher
      Y3-4 (FSR-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Occupant Detection ECU)

    Result:

    NG

    See step  13

    Result:

    OK

    See step  6

  6. CHECK DTC
    1. Connect the connectors to the occupant detection ECU and airbag sensor assembly.
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Clear the DTCs stored in the occupant detection ECU (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    4. Clear the DTCs stored in the airbag sensor assembly (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    5. Turn the ignition switch off.
    6. Turn the ignition switch to ON (IG).
    7. Check for DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    8. Turn the ignition switch off.

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2015 - ] )

    Result:

    NG

    See step  7

  7. CHECK OCCUPANT DETECTION ECU
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Replace the occupant detection ECU with a known good one (Refer to REMOVAL [11/2015 - ] ).

      HINT:

      Perform the following inspection using known good parts from another vehicle if possible.

    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Clear the DTCs stored in the occupant detection ECU (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    5. Clear the DTCs stored in the airbag sensor assembly (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON (IG).
    8. Check for DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    9. Turn the ignition switch off.
    10. Disconnect the cable from the negative (-) auxiliary battery terminal.
    11. Return the occupant detection ECU that was installed for testing to its original location (Refer to REMOVAL [11/2015 - ] ).

    Result:

    NG

    REPLACE AIRBAG SENSOR ASSEMBLY

    Refer to REMOVAL [11/2015 - ] )

    Result:

    OK

    See step  8

  8. REPLACE OCCUPANT DETECTION ECU
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Replace the occupant detection ECU with a new one (Refer to REMOVAL [11/2015 - ] ).
    3. Connect the cable to the negative (-) auxiliary battery terminal.

    NEXT

    See step  9

  9. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK
    1. Using the Techstream, perform Zero Point Calibration and Sensitivity Check (Refer to INITIALIZATION [11/2015 - 06/2017] ).

    NEXT

    END

  10. CHECK FLOOR WIRE (SHORT TO B+)
    1. Disconnect the front seat wire RH connector from the floor wire.

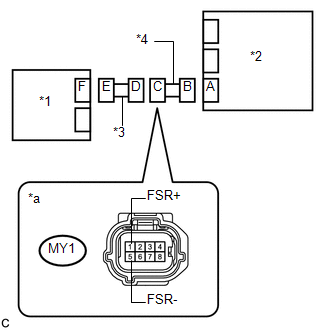

      GTY695224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Turn the ignition switch to ON (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      MY1-1 (FSR+) - Body ground Ignition switch ON (IG) Below 1 V
      MY1-5 (FSR-) - Body ground Ignition switch ON (IG) Below 1 V
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *a Front view of wire harness connector
      (to Front Seat Wire RH)

    Result:

    OK

    REPLACE FRONT SEAT WIRE RH

    Result:

    NG

    REPLACE FLOOR WIRE

  11. CHECK FLOOR WIRE (OPEN)
    1. Disconnect the front seat wire RH connector from the floor wire.

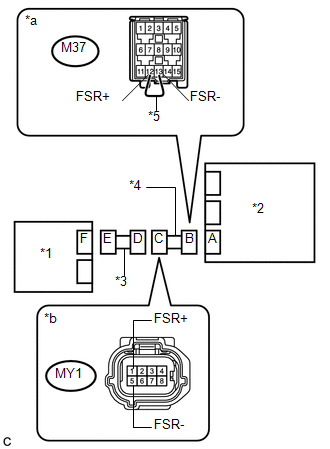

      GTY712745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The service wire has already been inserted into connector B.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      MY1-1 (FSR+) - MY1-5 (FSR-) Always Below 1 Ω
    3. Disconnect the service wire from connector B.
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Front Seat Wire RH)

    Result:

    OK

    REPLACE FRONT SEAT WIRE RH

    Result:

    NG

    REPLACE FLOOR WIRE

  12. CHECK FLOOR WIRE (SHORT)
    1. Disconnect the front seat wire RH connector from the floor wire.
      GTY695224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      MY1-1 (FSR+) - MY1-5 (FSR-) Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *a Front view of wire harness connector
      (to Front Seat Wire RH)

    Result:

    OK

    REPLACE FRONT SEAT WIRE RH

    Result:

    NG

    REPLACE FLOOR WIRE

  13. CHECK FLOOR WIRE (SHORT TO GROUND)
    1. Disconnect the front seat wire RH connector from the floor wire.
      GTY695224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      MY1-1 (FSR+) - Body ground Always 1 MΩ or higher
      MY1-5 (FSR-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Occupant Detection ECU
      *2 Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *a Front view of wire harness connector
      (to Front Seat Wire RH)

    Result:

    OK

    REPLACE FRONT SEAT WIRE RH

    Result:

    NG

    REPLACE FLOOR WIRE
