DTC C1AA0: Front Camera Module Circuit [06/2017 - ]: Wiring Diagram

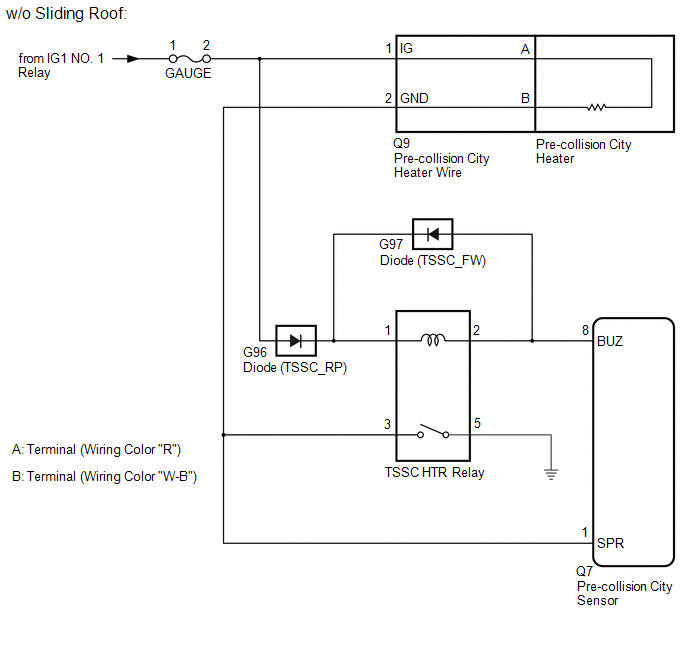

GTY751701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY751699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
